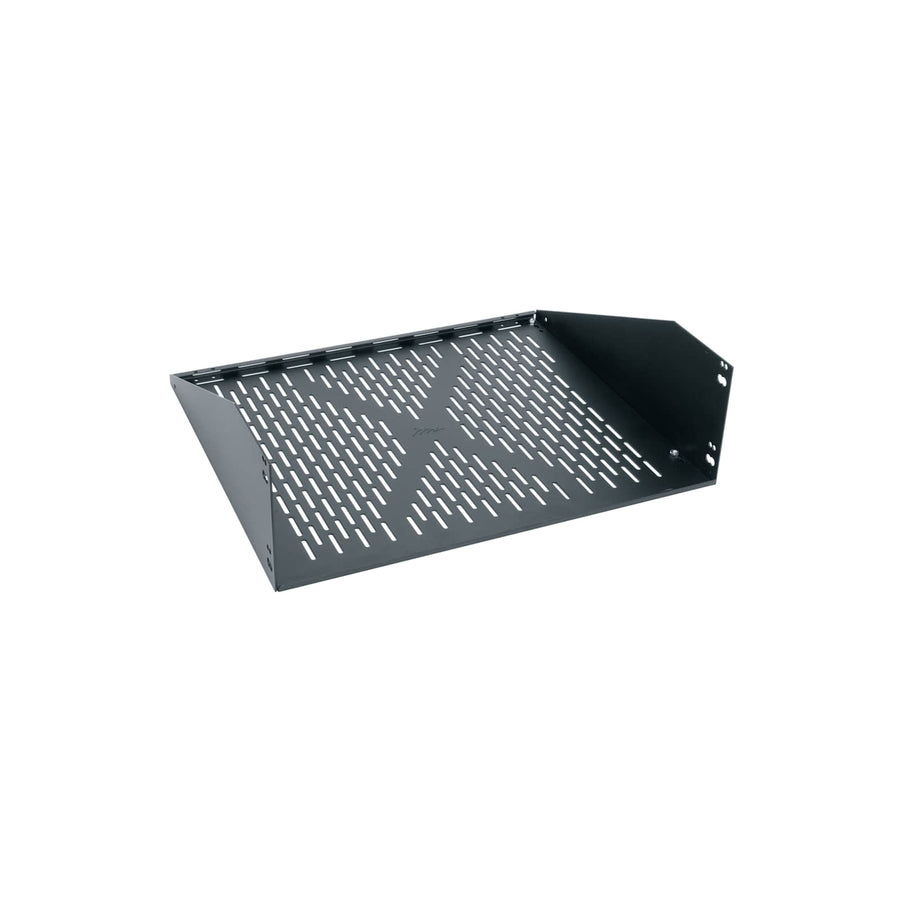

Wide Unit Shelf System, 17.5 Inches Deep
Three-RU wide unit shelf for components up to 22-1/2" wide, featuring a fully vented bottom and 50 lbs capacity
The WUSS17.5 is a Wide Unit Shelf System designed to accommodate components that exceed the 17-3/8" internal width of standard rackshelves. This 3RU shelf system supports equipment up to 22-1/2" wide, making it a necessary solution for oversized hardware in standard enclosures. The unit features a steel construction with a durable powder coat finish and a fully vented bottom to assist with airflow. For mounting, this shelf can be bolted directly into millwork or onto the mounting angles of a standard rackrail. It is compatible with all Middle Atlantic Products enclosures, with the exception of those utilizing Z-Rail systems. This TAA compliant and UL listed shelf is rated for a weight capacity of 50 lbs (22.7 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 17.5 in (44.5 cm) |
| Height | 5.19 in (13.2 cm) |
| Shipping Weight | 10.66 lbs (4.8 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Width | 17.56 in (44.6 cm) |
| UPC | 656747025693 |
| Certifications | UL Listed |
Resources
You'll need these with it
50 CFM Component Cooler with Platform
COMP-COOL50P$474.30
50 CFM Component Cooler, 220 - 240VAC
ICOMP-COOL50$379.80
50 CFM Component Cooler
COMP-COOL50$351.90
50 CFM Component Cooler with Platform, 220 - 240VAC
ICOMP-COOL50PDiscontinued
8 CFM Component Cooler, 220 - 240VAC - 3 Piece
ICOMP-COOL-3Discontinued
8 CFM Component Cooler, 220 - 240VAC
ICOMP-COOLDiscontinued
8 CFM Component Cooler - 3 Piece
COMP-COOL-3Discontinued
Questions about this part
Will the WUSS17.5 fit my wide equipment?
Yes, this shelf is designed to hold components up to 22-1/2" wide, which is wider than the 17-3/8" internal width of standard rack shelves.
What rack configuration is required for the WUSS17.5?
This is a 3RU shelf that can be bolted into millwork or onto the mounting angles of a standard rackrail.
Is this shelf compatible with all Middle Atlantic enclosures?
It works with all Middle Atlantic Products enclosures except for those that utilize the Z-Rail mounting system.
Can I add active cooling to this shelf?
Yes, you can add components like the COMP-COOL50 or COMP-COOL-3 to this shelf to manage airflow.
How much weight can this shelf hold?
The WUSS17.5 has a weight capacity of 50 lbs (22.7 kg).
