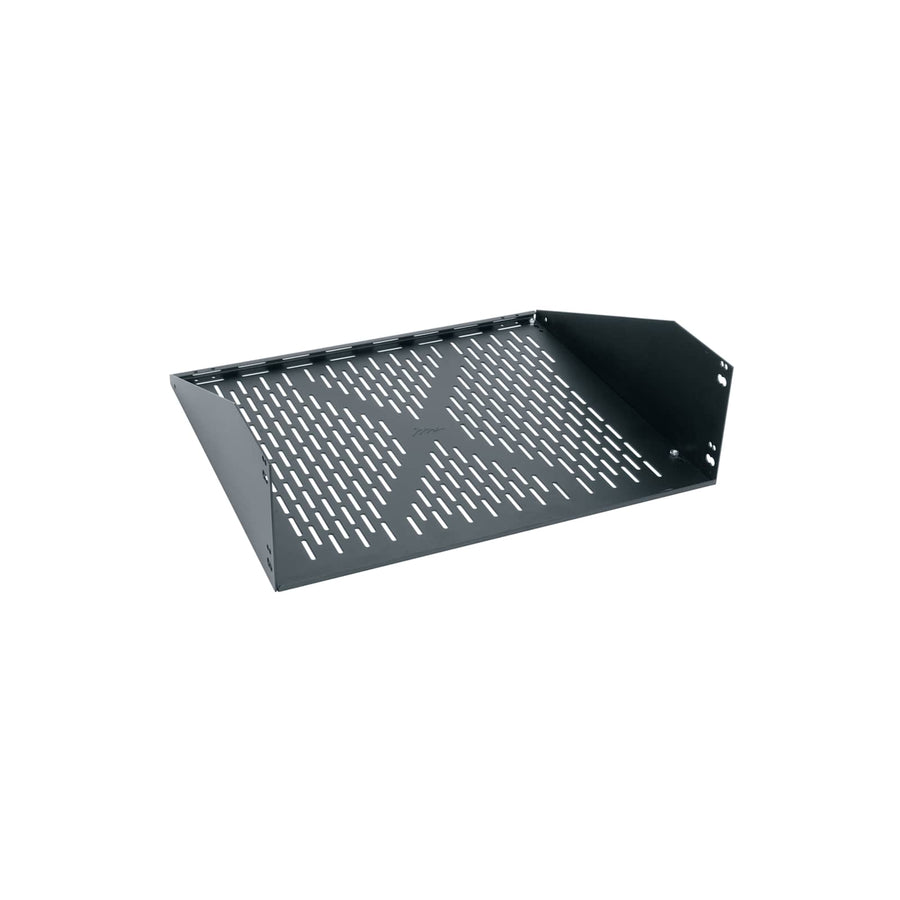

Wide Unit Shelf System, 15.5 Inches Deep
Wide unit rack shelf for components up to 22-1/2" wide, 15.5 in (39.4 cm) deep, 3U height, and 50 lbs capacity
The WUSS15.5 provides a mounting solution for specialized components that exceed the 17-3/8" internal width of standard rackshelves. This 3U high shelf system accommodates units up to 22-1/2" wide, making it an essential component for integrators working with non-standard hardware. The steel construction features a durable powder coat finish and includes a fully vented bottom to facilitate airflow. This specific 15.5 in (39.4 cm) deep model is designed to bolt into millwork or directly to the mounting angles of a standard rackrail. It is compatible with all Middle Atlantic enclosures except for those utilizing the ‘Z-Rail’ mounting system. This TAA compliant, UL Listed shelf offers a reliable way to integrate wide-format equipment into professional rack environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 15.5 in (39.4 cm) |
| Height | 5.19 in (13.2 cm) |
| Shipping Weight | 10.36 lbs (4.7 kg) |
| UL Load Capacity | 50 lbs (22.7 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Width | 17.56 in (44.6 cm) |
| Mounting Points | 2 |
| UPC | 656747025686 |
| Certifications | UL Listed |
Resources
You'll need these with it
50 CFM Component Cooler with Platform
COMP-COOL50P$474.30

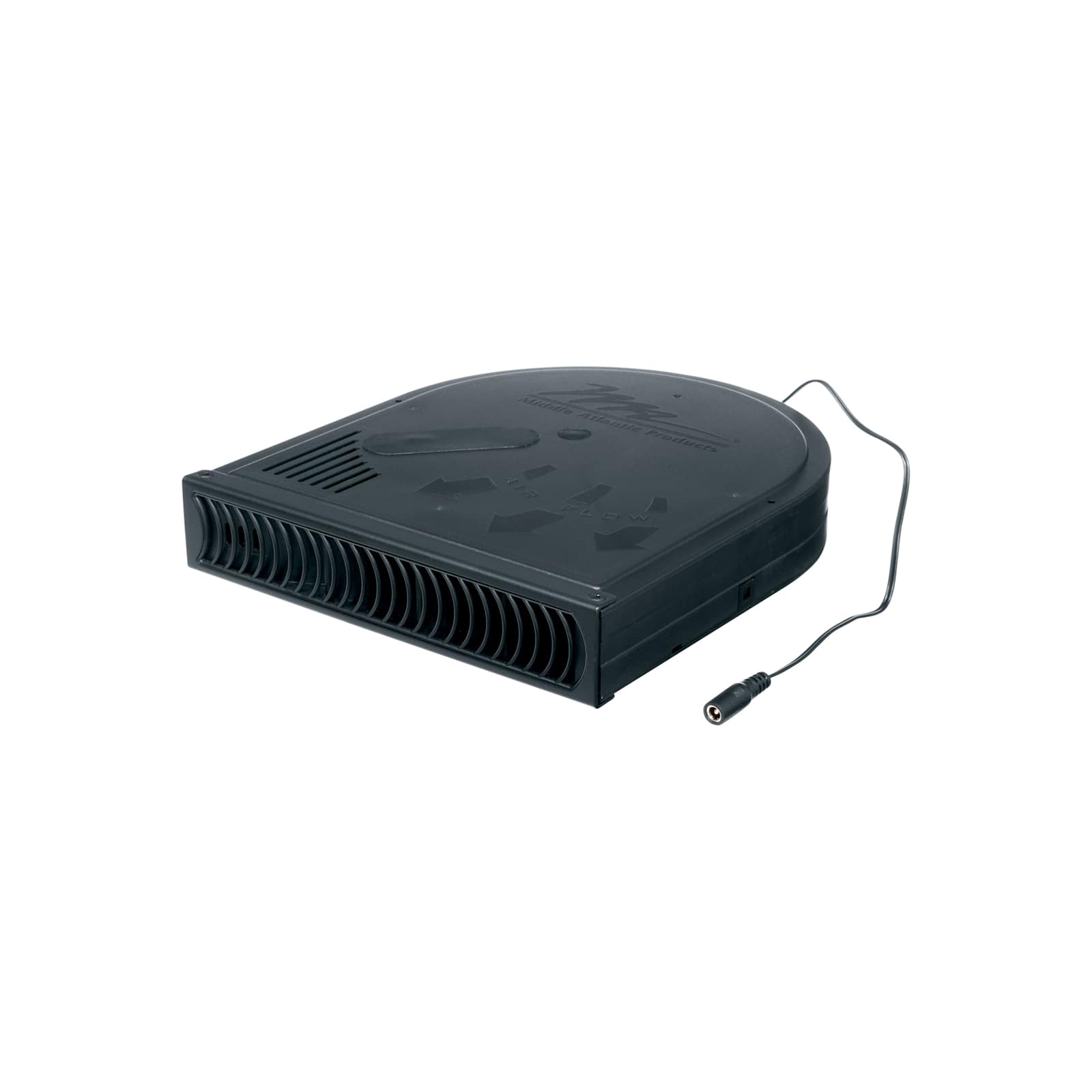

50 CFM Component Cooler, 220 - 240VAC
ICOMP-COOL50$379.80
50 CFM Component Cooler
COMP-COOL50$351.90
50 CFM Component Cooler with Platform, 220 - 240VAC
ICOMP-COOL50PDiscontinued
8 CFM Component Cooler, 220 - 240VAC - 3 Piece
ICOMP-COOL-3Discontinued
8 CFM Component Cooler, 220 - 240VAC
ICOMP-COOLDiscontinued
8 CFM Component Cooler - 3 Piece
COMP-COOL-3Discontinued
Questions about this part
Will the WUSS15.5 fit in my Middle Atlantic enclosure?
This shelf works with all Middle Atlantic enclosures except for those that utilize 'Z-Rail' mounting.
What is the maximum width of a component this shelf can hold?
The WUSS15.5 is designed to hold components that are up to 22-1/2" wide.
How much weight can I safely put on this wide unit shelf?
This system has a weight capacity and UL load capacity of 50 lbs (22.7 kg).
What else do I need to install this shelf in a rack?
The shelf is compatible with component coolers like the COMP-COOL50 or COMP-COOL50P for enhanced thermal management.
Where can I find the installation instructions for the WUSS15.5?
The WUSS Instruction Sheet is available in the documentation for technical submittals.
