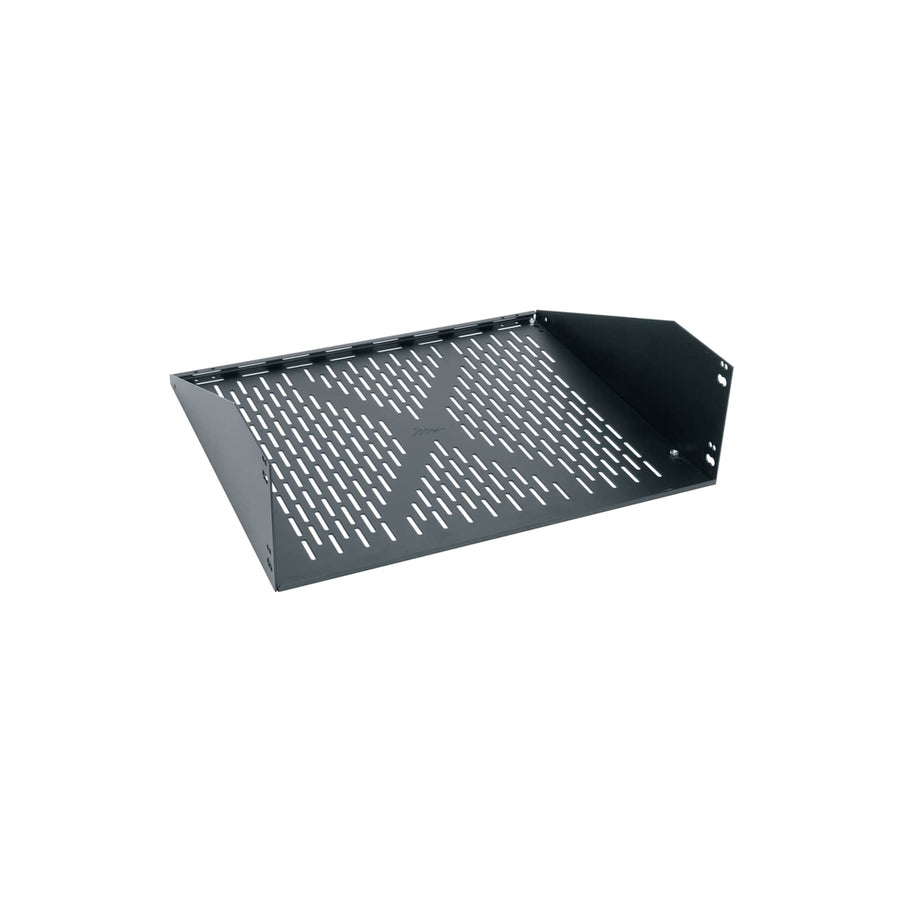

Wide Unit Shelf System, 11.5 Inches Deep
Wide unit rack shelf for components up to 22-1/2" wide, 11.5 in (29.2 cm) depth, 3U height
The WUSS11.5 Wide Unit Shelf System is designed to accommodate oversized components that exceed the 17-3/8" internal width of standard rackshelves. This 3U shelf system provides a stable mounting solution for specialized hardware, accommodating widths up to 22-1/2". Constructed from steel with a durable powder coat finish, the unit features a fully vented bottom to assist with component airflow. Installation is versatile, as the shelf can be bolted directly into millwork or onto the mounting angles of standard rackrail. This specific model is compatible with all Middle Atlantic Products enclosures, with the exception of those utilizing Z-Rail. The unit has a 5.19 in (13.2 cm) height and a 11.5 in (29.2 cm) depth, supporting a weight capacity of 50 lbs (22.7 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 11.5 in (29.2 cm) |
| Height | 5.19 in (13.2 cm) |
| Shipping Weight | 7.85 lbs (3.6 kg) |
| UL Load Capacity | 50 lbs (22.7 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Width | 17.56 in (44.6 cm) |
| Mounting Points | 2 |
| UPC | 656747025679 |
| Certifications | UL Listed |
Resources
You'll need these with it
Questions about this part
Will the WUSS11.5 fit in my Middle Atlantic enclosure?
The WUSS11.5 is compatible with all Middle Atlantic Products enclosures, except for models that use Z-Rail.
How wide can a component be to fit on this shelf?
This system is designed to hold components with a width of up to 22-1/2", making it suitable for items that are too wide for standard 17-3/8" rackshelves.
How is this wide unit shelf mounted in a rack?
You can bolt the WUSS11.5 into millwork or directly to the mounting angles of a standard rackrail.
What is the maximum weight capacity for the WUSS11.5?
The WUSS11.5 has a UL Load Capacity and weight capacity of 50 lbs (22.7 kg).
Which documents are available for installation and submittals?
The WUSS Instruction Sheet (PDF) is available to assist with installation and technical submittals.
