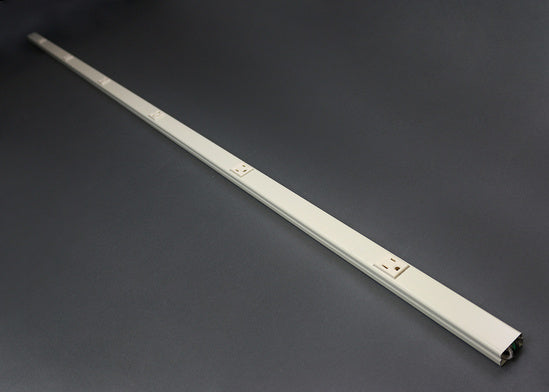

WH20GB612 20GB612 Plugmold® Multioutlet System in White
6 ft white steel multioutlet strip with 12 in receptacle spacing for dry location installations
The Wiremold WH20GB612 is a 6 ft length Plugmold® Multioutlet Strip designed for efficient power distribution in dry locations. This steel raceway provides superior strength for any installation and features a compact, low profile appearance with a height of 1.38 in (3.5 cm) and a depth of 0.75 in (1.9 cm). This specific unit is finished in white and is TAA compliant. The strip is configured with a 12 in (30.5 cm) receptacle spacing. As part of the 2000 Series, this raceway can be integrated into a complete wiring solution using various single- and dual-gang boxes to protect devices with surge or GFCI protection.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 0.75 in (1.9 cm) |
| Height | 1.38 in (3.5 cm) |
| Length | 6 ft (1.8 m) |
| Receptacle Spacing | 12 in (30.5 cm) |
| Width | 72 in (182.9 cm) |
| Color | White |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Is the Wiremold WH20GB612 TAA compliant?
Yes, this 6 ft multioutlet strip is TAA compliant and meets RoHS material restrictions.
What is the receptacle spacing for this Plugmold® strip?
This specific model features a 12 in (30.5 cm) center spacing between receptacles.
Can I add GFCI or surge protection to this system?
Yes, you can wire devices into the raceway system or protect the strip with a surge or GFCI device using single- or dual-gang boxes.
How does the finish on the WH20GB612 compare to other 2000 Series models?
This SKU features a white finish, whereas other variants in the 2000 Series are available in Ivory ScuffCoat or gray baked enamel.
What are the installation dimensions for the WH20GB612?
The raceway has a height of 1.38 in (3.5 cm), a depth of 0.75 in (1.9 cm), and a total length of 6 ft (1.8 m).
