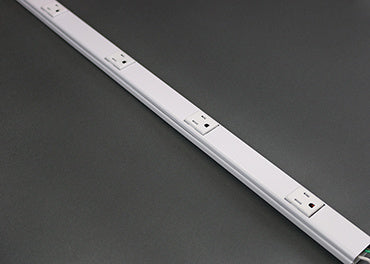

WH20GB306TR Tamper Resistant Plugmold® Multioutlet System in White
3 ft white tamper resistant multioutlet strip with 6 in receptacle spacing for surface mounting
The Wiremold WH20GB306TR is a 3 ft (0.9 m) tamper resistant multioutlet strip designed for surface mounting, which eliminates the need for wall penetrations. This unit features a white finish and is built with 15A proprietary simplex decorator receptacles. Each receptacle is spaced 6 in (15.2 cm) apart along the 36 in (91.4 cm) length. The integrated shutter system protects occupants by preventing the insertion of foreign objects like nails or hairpins into the slots. This model is TAA compliant and meets NEC Section 406.11 requirements for tamper resistance. For installers needing different configurations, the Plugmold 2000 series is available in multiple colors including black, gray, and stainless steel, and in various lengths including 5 ft and 6 ft options.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 0.75 in (1.9 cm) |
| Height | 1.38 in (3.5 cm) |
| Length | 3 ft (0.9 m) |
| Receptacle Spacing | 6 in (15.2 cm) |
| Width | 36 in (91.4 cm) |
| Color | White |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will this Plugmold strip work for residential applications?
Yes, this unit meets NEC Section 406.11 tamper resistant requirements, which are mandated for residential applications to provide protection against burns and injuries.
What is the difference between this and the 5 ft version?
While this WH20GB306TR is 3 ft (0.9 m) long, the series also offers 5 ft (1.5 m) and 6 ft lengths to accommodate different installation requirements.
How are the receptacles spaced on this 36 in strip?
The receptacles are positioned with 6 in (15.2 cm) spacing between them along the length of the strip.
Can I use this in a commercial space that requires TAA compliance?
Yes, this specific model is TAA compliant, making it suitable for projects requiring compliance with these standards.
Is this unit suitable for mounting on finished walls?
Yes, it is designed for surface mounting, which allows for convenient installation without the need to cut into or break through existing walls.
