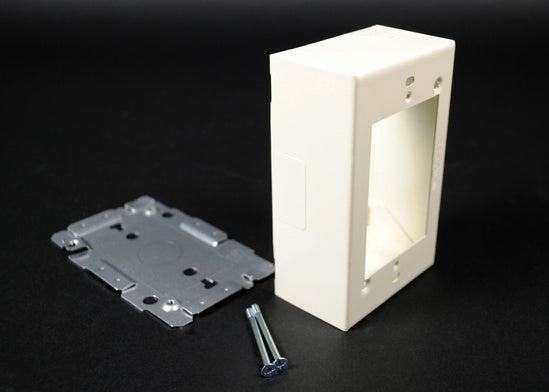

WH2048 2000 One Gang Device Box Fitting in White
Single gang device box in white, featuring twistouts for 2000, 500, and 700 Series Raceways
The Wiremold WH2048 is a single gang device box designed for integration within the 2000 Series Raceway system. This white component is engineered to provide a secure mounting point for devices while facilitating easy connection to existing infrastructure. The box base includes a 1/2'' trade size KO and a rectangular KO specifically for extensions to a wall box. To accommodate grounding requirements, the base is equipped with a #10 threaded hole for a ground connection. For installers looking to transition different systems, the cover is designed with twistouts compatible with 2000, 500, and 700 Series Raceways. This product is UL listed and meets RoHS material restrictions.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 19" x 3.5" x 5" (482.6 x 88.9 x 127 mm) |
| Canadian Certified | No |
| Color | White |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Which raceway series is the WH2048 compatible with?
The cover features twistouts that allow it to work with 2000, 500, and 700 Series Raceways.
How can I extend this box to a wall box?
The base includes a rectangular KO designed specifically for extensions to a wall box.
What are the grounding options for this device box?
The base is provided with a #10 threaded hole to facilitate a ground connection.
Is the WH2048 UL listed?
Yes, this device box is UL listed and meets RoHS material restrictions.
