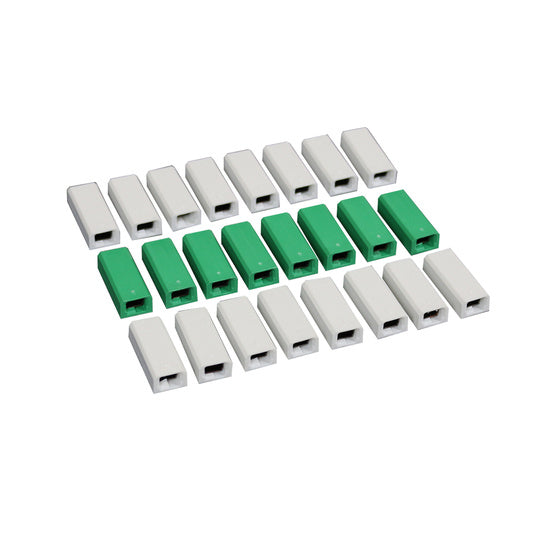

W30/W30G 2000 Pressure-Type Wire Connectors
Pressure-type wire connectors for No. 12 or No. 14 solid copper conductors, rated for 300V and 20A
The W30/W30G series provides a method for the common connection of solid copper conductors. The W30 variant is designed to connect two, three, or four No. 12 or No. 14 solid copper conductors. The W30G variant is specifically for the equipment grounding of 2, 3, or 4 solid conductors of No. 12 or No. 14 AWG. Both models are rated for a 300V maximum and 20A at 105 degrees C maximum. These connectors are not for use with aluminum conductors. This product is TAA compliant and meets the material restrictions of RoHS.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Questions about this part
Can I use these connectors with aluminum wiring?
No, these connectors are not for use with aluminum conductors.
What is the maximum voltage and current rating for the W30/W30G?
These connectors are rated for a 300V maximum and 20A at 105 degrees C maximum.
What is the difference between the W30 and W30G models?
The W30 is for common connection of solid copper, while the W30G is intended for equipment grounding of solid conductors.
Is this product TAA compliant?
Yes, this product is TAA compliant and meets RoHS material restrictions.
