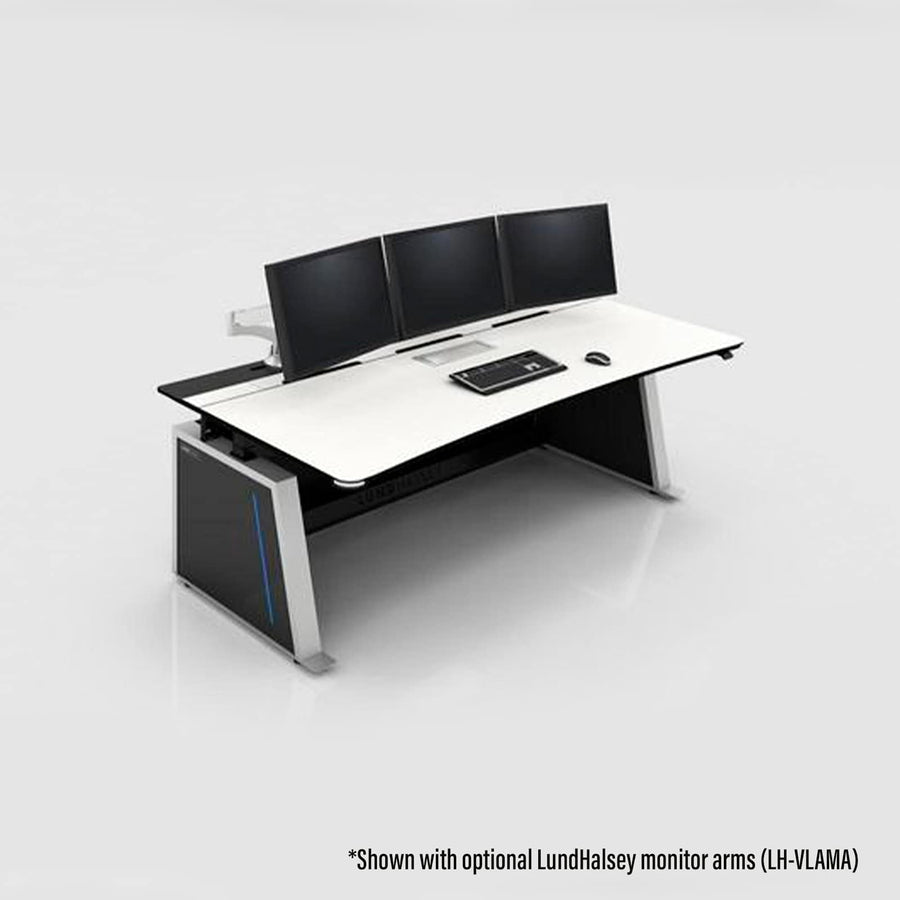

Visionline 24/7 Console, Large, 83 Inches Wide
Wide 83" worksurface console for up to 3 operators, featuring 9 RU of integrated rackmount space and TAA compliance
The LH-VLCLS Visionline 24/7 Command & Control Console is a pre-configured solution designed for high-use environments like Security Operation Centres (SOC), Network Operation Centres (NOC), and AV control rooms. This 83" wide workstation features a durable, high-pressure compact laminate worksurface in white, supported by a Black/Silver/Gray frame. It is designed to meet ISO 11064 ergonomic standards, facilitating efficient workflows for up to three operators. For equipment integration, the console provides 9 RU of rackmount space with both front and rear access, complemented by a 39 in (99.1 cm) depth and a 19 in (48.3 cm) usable depth. Cable management is integrated throughout, utilizing multiple channels running the height and width of the unit and specific cable pass-thru slots on the rear worksurface for monitor cabling. This TAA compliant console also includes a flip-up worksurface cover that grants access to a multi-purpose compartment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 39 in (99.1 cm) |
| Height | 26 in (66 cm) |
| Product Weight | 308 lbs (139.7 kg) |
| Rack Units | 9 RU |
| Usable Depth | 19 in (48.3 cm) |
| Weight Capacity | 220 lbs (99.8 kg) |
| Width | 83 in (210.8 cm) |
| Color | Black/Silver/Gray (Frame)White (Worksurface) |
| Federal Ops Country of Origin | United Kingdom |
| Height Adjustable | No |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Advantage Chair
CHAIR-ADV1-B$1,377.00
6mm Cage Nuts - 100 Piece
CN6MM-100$136.80
10-32 Cage Nuts - 50 Piece
CN1032-50$64.80
Basic Task Chair
CHAIR-TSK1-B$1,036.80
Contour Freedom Chair
CHAIR-CF1-B$2,874.60
Visionline Electric Height Adjust Retrofit Kit
LH-VLAHA$3,346.20
Visionline CPU Holder
LH-VLACPU$510.29
Visionline LED Task Light, Dimmable
LH-VLALGT$984.21
Visionline Kontrol Touch Desktop Power Unit
LH-VLAKT$1,117.79
Visionline Wide Bridging Cabinet, Straight Wedge
LH-BCWS$2,102.78
Visionline Worksurface Corner LED Light Kit
LH-VLACCL$581.14
Visionline Wide Bridging Cabinet, 45º Wedge
LH-BCW45$2,102.78
Questions about this part
Will the LH-VLCLS work with my existing monitor arms?
Yes, this console is compatible with the LundHalsey Single Monitor Arm (LH-VLAMA).
Can I add height adjustability to this console after it is installed?
Yes, you can add electric height adjustability later using the Visionline Electric Height Adjust Retrofit Kit (LH-VLAHA).
What is the rackmount capacity of the LH-VLCLS?
This console provides 9 RU of rackmount space with both front and rear access to integrated equipment.
How many operators can use this workstation?
The 83" W x 39" D worksurface is designed to accommodate up to 3 operators.
Is this console suitable for TAA compliant projects?
Yes, the LH-VLCLS is TAA compliant and manufactured in the United Kingdom.
