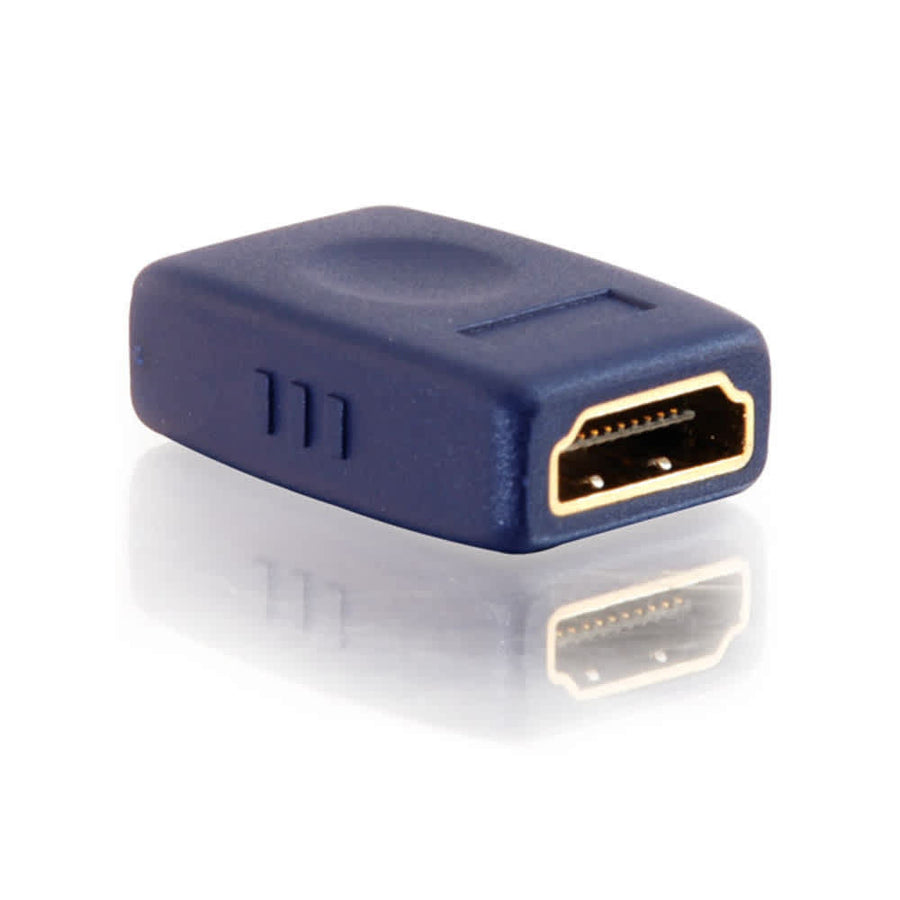

Velocity™ HDMI® F/F Coupler
HDMI female to female coupler used to extend existing HDMI cable runs for resolutions up to 1080p
The C2G CG40970 Velocity™ HDMI® F/F Coupler is an essential tool for professional installers facing unpredictable cable length requirements during a deployment. Instead of running an entirely new cable run when a connection falls short, this compact coupler allows you to bridge two existing HDMI cables to extend the total reach. This solution helps save time and reduces the labor costs associated with re-pulling cables through walls or conduits. This blue coupler features two HDMI female connectors and is designed for simplicity in the field. Because it facilitates an extension, installers must consider the impact of additional total cable length on signal integrity; the video source equipment and the combined length of both cables will ultimately dictate the final picture quality of the display. This part is rated for a video resolution of up to 1080p. The device is built to operate in environments with temperatures ranging from 32° to 122°F (0° to 50°C) and is compliant with RoHS, REACH, and NDAA 889 standards.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 1.29 in (3.3 cm) |
| Operating Humidity Max | 85% RH (Non-Condensing) |
| Operating Humidity Min | 15% RH (Non-Condensing) |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Shipping Weight | 0.07 lbs (0 kg) |
| Storage Humidity Max | 85% RH (Non-Condensing) |
| Storage Humidity Min | 15% RH (Non-Condensing) |
| Storage Temperature Max | 185 Fahrenheit (85 Celsius) |
All other specifications 12
| Storage Temperature Min | -13 Fahrenheit (-25 Celsius) |
| Color | Blue |
| Connector 1 | (1) HDMI Female |
| Connector 2 | (1) HDMI Female |
| Product Type | Coupler |
| TAA Compliant | No |
| UPC | 757120409700 |
| Video Input Support | HDMI |
| Video Output Support | HDMI |
| Video Resolution | 1080p |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Warranty | Lifetime |
You'll need these with it
Questions about this part
How do I use the C2G CG40970 to extend a cable?
Connect two existing HDMI cables into the two female ports on the CG40970 to create a single, longer connection.
What video resolution can this coupler support?
This coupler supports video resolutions up to 1080p.
What is the impact of using this coupler on signal quality?
The final picture quality depends on your video source equipment and the total combined length of the two cables being used.
Is the CG40970 NDAA 889 compliant?
Yes, this product is listed as NDAA 889 compliant.
Can I use this with Core Series or Performance Series cables?
Yes, it is compatible with accessories like the C2G CG56782 Core Series HDMI cable and the C2G C2G10378 Performance Series cable.
