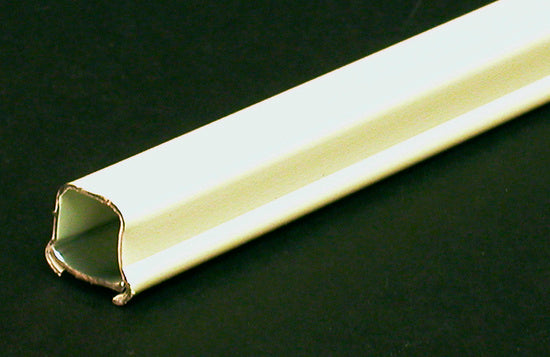

V700 Small Raceway in Ivory
Ivory steel surface-mount raceway for electrical and communication cabling, 10 ft length
The Wiremold V700 is a rugged steel raceway designed for surface mounting small amounts of electrical wiring or communication cables. This 10 ft (3.1 m) section provides a low-profile solution that blends into various interior decors, making it an efficient choice for low-voltage wiring. Because it is designed for surface mounting, installers can complete renovations without disturbing the building structure or existing wall finishes. This specific Ivory model is part of the 700 Series, which features a ScuffCoat finish for durability. This TAA compliant product is UL5 and ADA compliant, ensuring it meets necessary regulatory standards for installation. For projects requiring shorter sections, 5' lengths are available via catalog numbers with the inch-5inch suffix.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Depth | 0.63 in (1.6 cm) |
| Height | 0.75 in (1.9 cm) |
| Length | 10 ft (3.1 m) |
| Width | 12.13 in (30.8 cm) |
| Color | Ivory |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
You'll need these with it
Questions about this part
What is the length and dimensions of the V700 raceway?
The V700 is a 10 ft (3.1 m) length with a width of 12.13 in (30.8 cm), a height of 0.75 in (1.9 cm), and a depth of 0.63 in (1.6 cm).
Can I add more wiring to this raceway later?
Yes, the fittings for the 700 Series feature removable covers, which allows for easy access to the wiring for additions or changes.
What accessories are compatible with the V700 ivory raceway?

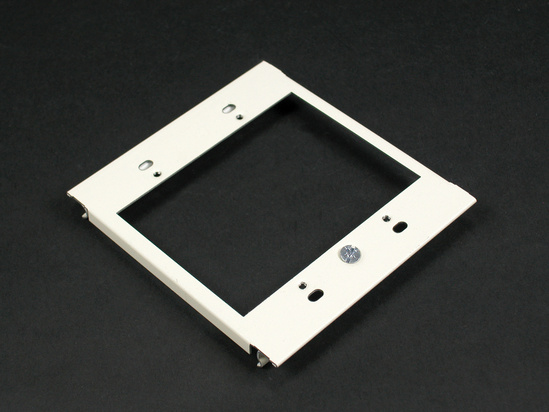

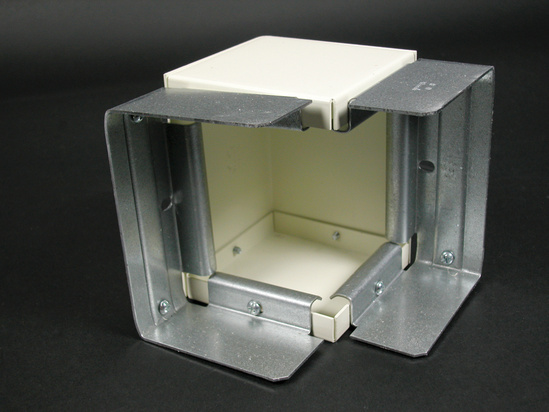

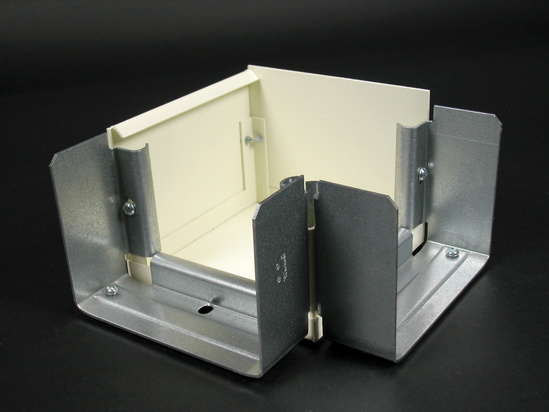

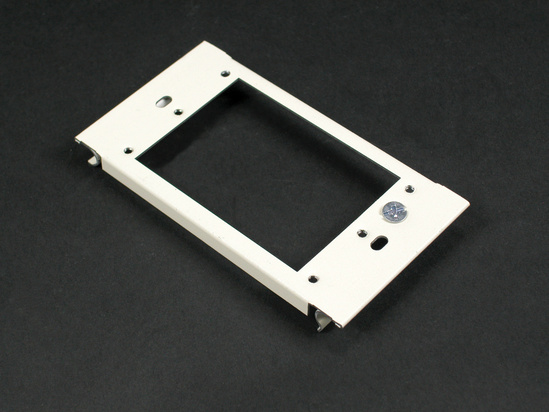

You can use several 6000 series fittings such as the V6017TX combination elbow, the V6011TX flat elbow, or device plates like the V6007C-1 and V6007C-2.
Is the V700 suitable for government contracts?
Yes, the V700 is TAA compliant.
Does the V700 require cutting tools for installation?
While not included in the box, the raceway is designed to be used with raceway cutters with replaceable blades for clean cuts and reduced labor time.
