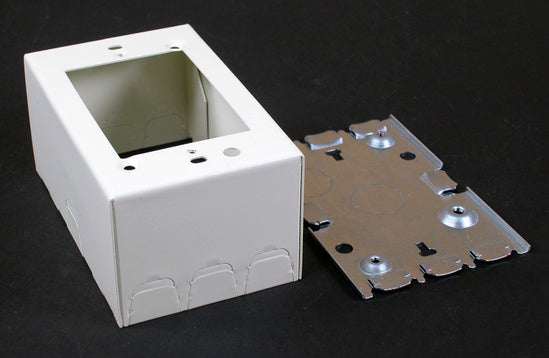

V5747 One Gang Shallow Switch and Receptacle Box Fitting in Ivory
Shallow one gang switch and receptacle box in Ivory for Wiremold 500 and 700 Series raceways
The Wiremold V5747 is a one gang shallow box fitting designed for use with 500 Series and 700 Series raceways. This ivory-colored component provides a mounting point for switches or receptacles within a surface-mounted system, allowing for the extension of electrical wiring or communication cables. Its shallow 1.5 in (3.8 cm) depth is specifically engineered to accommodate the low-profile requirements of these rugged raceway systems. This part is TAA compliant and meets RoHS material restrictions. It is a steel construction designed for surface mounting in environments where traditional in-wall installation is not feasible. This SKU is the Ivory finish variant; the White finish is also available for matching the 500 and 700 series color options.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 1.5 in (3.8 cm) |
| Height | 3 in (7.6 cm) |
| Width | 4.75 in (12.1 cm) |
| Canadian Certified | No |
| Color | Ivory |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What series of Wiremold raceway does the V5747 fit?
The V5747 is designed for use with Wiremold 500 Series and 700 Series raceway systems.
Is the V5747 TAA compliant?
Yes, this product is TAA compliant and meets RoHS material restrictions.
What is the depth of this shallow box?
The V5747 has a depth of 1.5 in (3.8 cm).
Does this box come in colors other than Ivory?
Yes, this series also offers a White finish option.
What is the warranty for the V5747?
The product includes a 1-Year warranty from installation or a 2-Years warranty from the day of sale.
