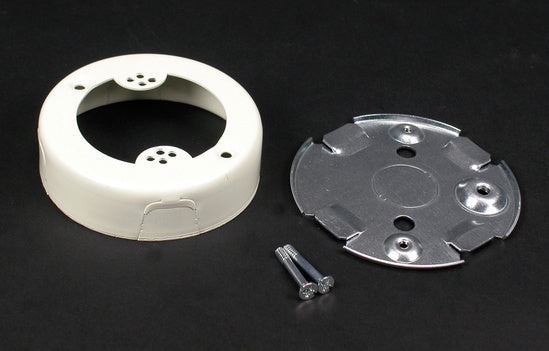

V5733 Outlet Box Fitting
Steel outlet box fitting for 500 and 700 Series raceways, compatible with 'G' or 'H' type conduit fittings
The Wiremold V5733 is an outlet box fitting designed for use with 500 and 700 Series steel raceway systems. This component facilitates the installation of devices by providing mounting screw centers at 1 15/32'' (37mm), 1 5/8'' (41mm), 1 11/16'' (44mm), or 1 27/32'' (46mm). It is engineered to accept any device that mounts specifically on 'G' or 'H' type conduit fittings. This steel fitting is RoHS compliant and carries UL and USMCA certifications. For installations requiring Canadian Safety Standards certification, installers should use the 'VC' color prefix instead of the standard 'V' prefix.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 8.25" x 5.63" x 3.5" (209.6 x 143.1 x 88.9 mm) |
| Canadian Certified | No |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
| Color | Ivory |
Resources
Questions about this part
What device mounting screw centers does the V5733 support?
This fitting supports devices with screw centers of 1 15/32'' (37mm), 1 5/8'' (41mm), 1 11/16'' (44mm), or 1 27/32'' (46mm).
Will the V5733 work with 'G' or 'H' type fittings?
Yes, the V5733 is designed to accept any device that mounts on 'G' or 'H' type conduit fittings.
Is there a Canadian version of this fitting?
Yes. To ensure compliance with Canadian Safety Standards, you must order the version with a 'VC' color prefix rather than the standard 'V' prefix.
What certifications does the V5733 hold?
The V5733 is UL listed, USMCA certified, and meets RoHS material restrictions.
