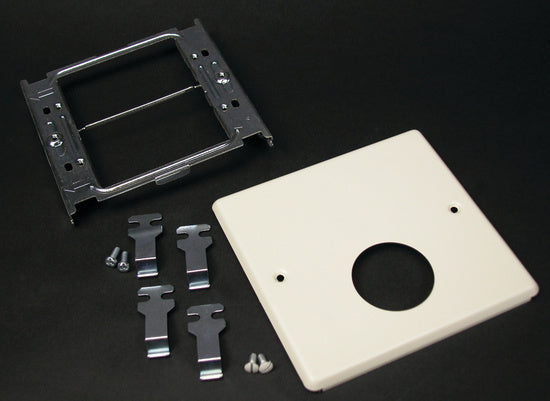

V4047JX 4047 Two Gang Cover Single Round Opening in Ivory
Two gang steel cover with a single round opening for Ivory finish receptacles
The Wiremold V4047JX is a two gang cover designed for use with 4047 series steel raceway systems. This specific model features a single round opening designed to accommodate receptacles with face diameters ranging from 1.56'' to 1.58'' (39mm - 40mm). It is suitable for both straight blade and single locking receptacles. This component is part of the 4000 series steel raceway line and is compliant with RoHS material restrictions. When selecting finishes for this series, ensure you are ordering the Ivory variant for this specific SKU, as other colors are available in the series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Canadian Certified | No |
| Color | Ivory |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What type of receptacles fit the V4047JX?
This cover accommodates single locking or straight blade receptacles that have a face diameter between 1.56'' and 1.58'' (39mm - 40mm).
Is this cover part of the 4000 series?
Yes, this is a component for the Wiremold 4000 Series Steel Raceway systems.
What is the difference between the Ivory and Canadian versions?
For Canadian installations, you must use the versions with a 'CV' color prefix for Ivory or a 'CG' prefix for Gray to meet local requirements.
What certifications does this product have?
The V4047JX is UL listed, USMCA compliant, and meets RoHS material restrictions.
How long is the warranty for this cover?
The product carries a warranty of 1-year from the date of installation or 2-years from the date of sale.
