V3033JE 3000 Single Receptacle Cover Fitting in Ivory
Ivory single receptacle cover for 3000 Series Raceway, compatible with 1.56'' - 1.57'' diameter straight blade and locking receptacles

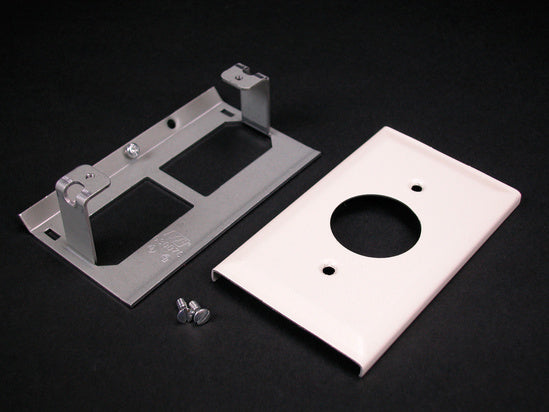

The Wiremold V3033JE is a single receptacle cover fitting designed for use within the 3000 Series Raceway system. This ivory-finished component is engineered to house commercially available straight blade and locking single receptacles that feature face diameters between 1.56'' - 1.57'' (40mm). Installation requires the G3007C Device Bracket, which is included with this fitting. This UL listed component is intended for professional installation within steel raceway systems to provide a finished outlet point for electrical devices.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 8" x 7.75" x 5.75" (203.2 x 196.9 x 146.1 mm) |
| Canadian Certified | No |
| Color | Ivory |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What type of receptacles fit the V3033JE?
This cover fits commercially available single straight blade or locking receptacles with a face diameter of 1.56'' - 1.57'' (40mm).
What do I need to install this cover?
The G3007C Device Bracket is included with this fitting to assist with the installation into the 3000 Series Raceway.
Is the V3033JE a Canadian certified part?
This specific SKU is not Canadian certified; for Canadian versions, you must order with a 'CV' or 'CG' color prefix.
