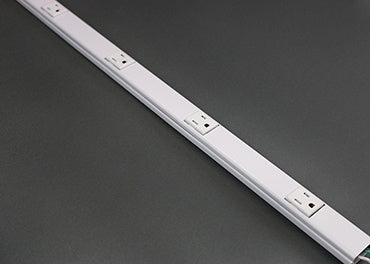

V20GB306TR Tamper Resistant Plugmold® Multioutlet System in Ivory
3 ft Ivory Tamper Resistant Plugmold Multioutlet Strip with 6 in receptacle spacing and 15A simplex decorator receptacles
The Wiremold V20GB306TR provides a surface-mounted power solution designed to increase accessibility in confined or high-traffic areas. This 3 ft (0.9 m) long multioutlet system features 15A proprietary simplex decorator receptacles spaced at 6 in (15.2 cm) intervals. It is built to meet 2008 NEC Section 406.11 requirements for tamper resistance, utilizing an integrated shutter system to prevent the insertion of foreign objects like nails or hairpins. This Ivory finished strip is TAA compliant and cULus listed, making it suitable for various commercial and residential environments. Because it is designed for surface mounting, installers can add power access without the need to break through walls or access wall cavities directly.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 0.88 in (2.2 cm) |
| Height | 1.25 in (3.2 cm) |
| Length | 3 ft (0.9 m) |
| Receptacle Spacing | 6 in (15.2 cm) |
| Width | 36 in (91.4 cm) |
| Color | Ivory |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What is the spacing between the outlets on the V20GB306TR?
The receptacles on this 3 ft strip are spaced at 6 in (15.2 cm) intervals.
Does this Plugmold system meet NEC requirements for tamper resistance?
Yes, this unit meets the 2008 NEC Section 406.11 requirements for tamper-resistant receptacles via an internal shutter system.
What mounting method is required for the V20GB306TR?
This model is designed for surface mounting, allowing for easy installation without breaking into the wall.
Is this product TAA compliant?
Yes, the V20GB306TR is TAA compliant and meets RoHS material restrictions.
What is the difference between this and the 5 ft version?
This SKU is the 3 ft length; other options in this series offer different lengths like 5 ft or 6 ft to accommodate different mounting needs.
