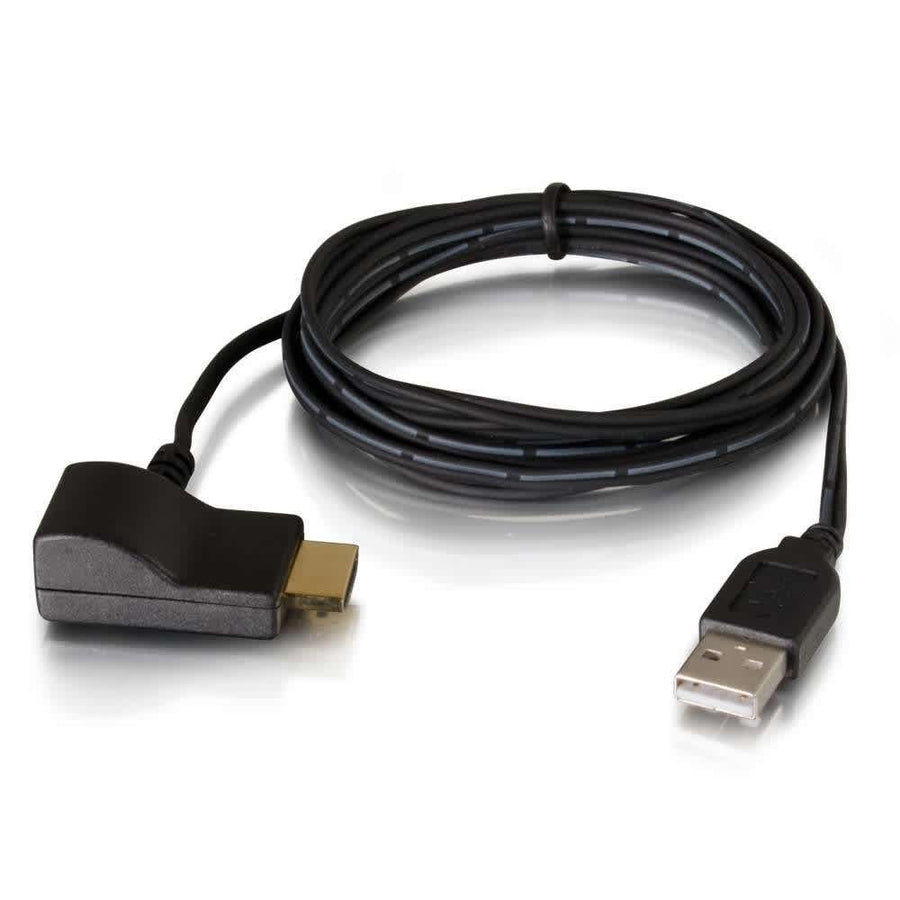

USB Powered HDMI® Voltage Inserter
USB to HDMI voltage inserter that provides stable 5V power and up to 500mA current for bus-powered HDMI accessories
The C2G CG42236 is an active voltage inserter designed to support HDMI bus-powered devices that require more current than a standard source can provide. Standard HDMI sources like computers, media players, or teleconferencing codecs typically only deliver a 55mA hot plug supply according to HDMI standards. When accessories like HDMI extenders, active cables with embedded chipsets, or signal-sensing auto-switching devices demand more current, the system can experience flashing images, HDCP authentication errors, or a total loss of video. The CG42236 solves this by isolating the power from the source device and delivering a stable 5V signal and up to 500mA of dedicated current. This ensures the necessary electrical handshake for HDCP key authentication, EDID information exchange, and hot plug connection detection remains intact. This device is fully compliant with all UltraHD and 4K performance requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 1 Amp |
| Cable Length | 5.9 ft (1.8 m) |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Operating Temperature Max | 122 Fahrenheit (50 Celsius) |
| Operating Temperature Min | 32 Fahrenheit (0 Celsius) |
| Shipping Weight | 0.11 lbs (0.1 kg) |
| Storage Temperature Max | 158 Fahrenheit (70 Celsius) |
| Storage Temperature Min | -13 Fahrenheit (-25 Celsius) |
All other specifications 13
| Voltage | 5 V |
| Wire Gauge | 20 |
| Color | Black |
| Connector 1 | (1) USB-A Male |
| Connector 2 | (1) HDMI Male |
| Material | PVC |
| Number of Ports | 1 |
| Outlet Type | USB |
| Product Type | Active DeviceVoltage Inserter |
| TAA Compliant | No |
| UPC | 757120422365 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Warranty | 5 years |
Resources
Questions about this part
Will the CG42236 work with 4K or UltraHD displays?
Yes, this device is fully compliant with all UltraHD and 4K performance requirements to ensure high-resolution signal stability.
What specific HDMI accessories require a voltage inserter like the CG42236?
This inserter is intended for bus-powered accessories such as HDMI extenders, active cables with embedded chipsets, or signal-sensing auto-switching devices.
How does this device prevent HDMI signal issues?
It provides a full 5 Volts and up to 500mA of dedicated power, which prevents HDCP authentication failures and EDID exchange errors caused by insufficient current from the source.
What are the connector types on the CG42236?
The unit features one USB-A male connector to draw power and one HDMI male connector for the signal path.
Does the CG42236 come with a warranty?
The device is backed by a 5-year warranty from the manufacturer.
