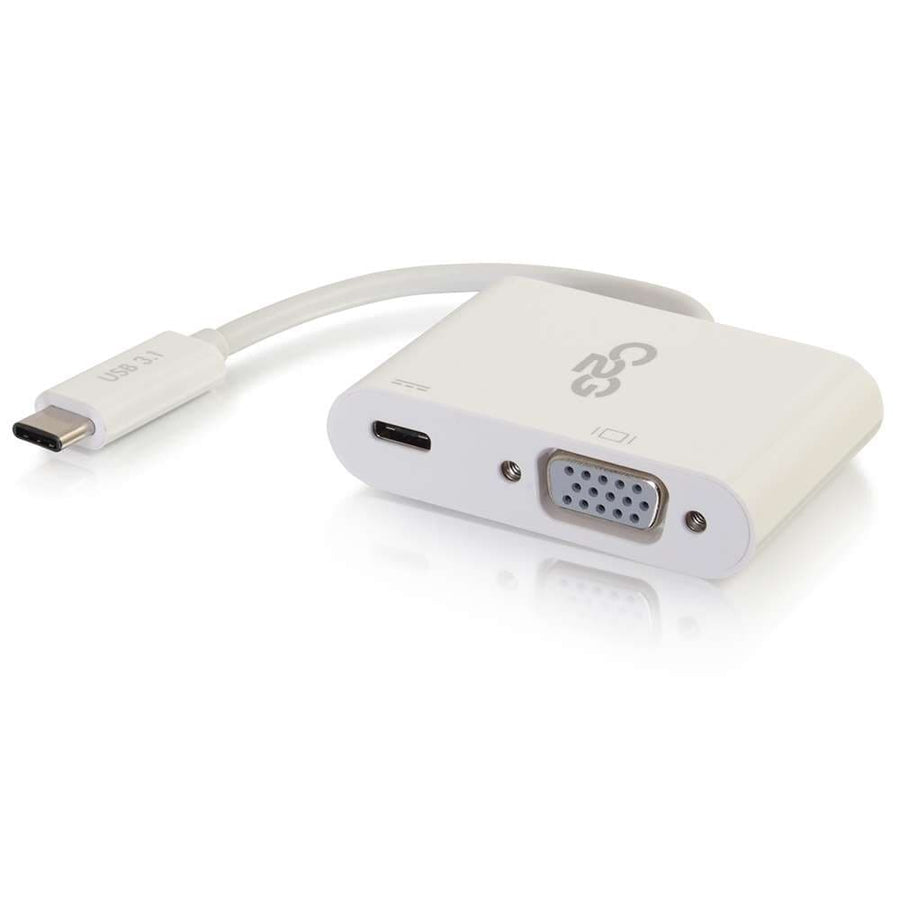

USB-C® to VGA Video Multiport Adapter with Power Delivery up to 60W - White
USB-C to VGA video adapter with 60W Power Delivery support for simultaneous charging and high-resolution video output
The C2G CG29534 is a USB-C to VGA video multiport adapter designed to facilitate connections between USB-C enabled devices and displays equipped with VGA ports, such as projectors or HDTVs. This active device allows users to extend their workspace or present content via a VGA output while maintaining power to the host device through the integrated USB-C female port. This port supports Power Delivery of up to 60W, ensuring that laptops, tablets, or smartphones remain charged during presentations or extended use. The adapter supports video resolutions up to WUXGA (1920x1200) at 60Hz, providing a clear and high-quality image. The physical USB-C male connector features a reversible, symmetrical design for easy, damage-free insertion and is rated for up to 10,000 insertion cycles. This white adapter is a plug-and-play solution that requires no drivers for operation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 3 Amp |
| Cable Diameter | 0.15 in (3.9 mm) |
| Cable Length | 1.57 in (4 cm) |
| Operating Humidity Max | 85% RH (Non-Condensing) |
| Operating Humidity Min | 15% RH (Non-Condensing) |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Shipping Weight | 0.73 lbs (0.3 kg) |
| Storage Humidity Max | 85% RH (Non-Condensing) |
All other specifications 16
| Storage Humidity Min | 15% RH (Non-Condensing) |
| Storage Temperature Max | 158 Fahrenheit (70 Celsius) |
| Storage Temperature Min | -13 Fahrenheit (-25 Celsius) |
| Wire Gauge | 34 |
| Color | White |
| Connector 1 | (1) USB-C Male |
| Connector 2 | (1) USB-C Female(1) VGA Female |
| Product Type | Active DeviceAdapter |
| TAA Compliant | No |
| Video Input Support | USB-C |
| Video Output Support | VGA |
| Video Resolution | WUXGA (1920x1200) |
| Certifications | CEFCCNDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | 5 years |
Resources
Questions about this part
Will the CG29534 work with my MacBook or Surface device?
Yes, this adapter is compatible with the Apple MacBook, MacBook Air, MacBook Pro, iPad Pro, Microsoft Surface Book 2, and Surface Go.
Can I get audio through the VGA output on this adapter?
No, this specific device does not support audio output through the VGA connector.
How much power can I pass through to my laptop?
The USB-C female port supports Power Delivery up to 60W to charge your connected host device.
What is the maximum resolution supported by the CG29534?
This adapter supports video resolutions up to WUXGA (1920x1200) at 60Hz.
What is the difference between this and a standard USB-C to VGA cable?
This is a multiport adapter that includes a USB-C female port for Power Delivery, whereas a standard cable lacks charging capabilities.
