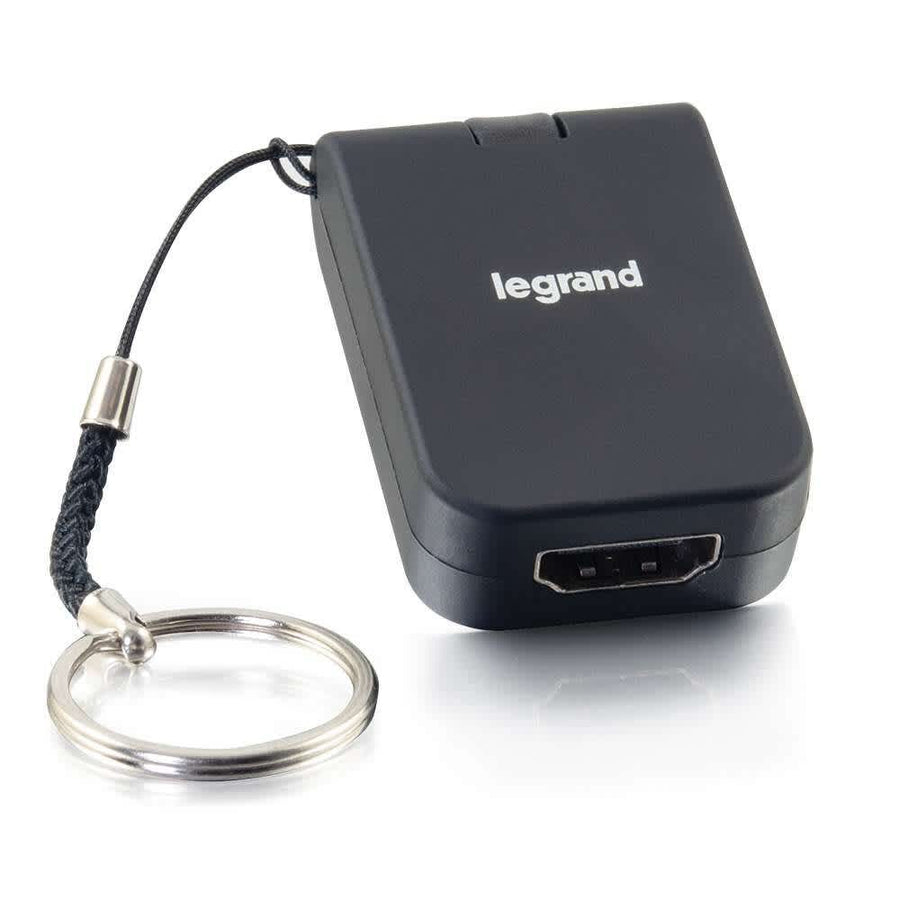

USB-C® to HDMI® Travel Adapter Converter - 4K 30Hz
USB-C to HDMI travel adapter supporting 4K @ 30Hz resolution, featuring a portable smart ring keychain design
The C2G CG26872 is a compact USB-C to HDMI travel adapter designed for BYOD (Bring Your Own Device) applications. This active converter allows users to connect a device equipped with a USB 3.1 Type-C connector—including Thunderbolt 3 ports—to external displays like HDTVs or projectors featuring HDMI inputs. It supports video resolutions up to 4K @ 30Hz (4096 x 2160 at 30Hz) and utilizes DP ALT mode with DP1.1a specifications to deliver high-quality video. The unit features a reversible and symmetrical USB-C connector, ensuring compatibility with various device orientations. For professionals on the go, the adapter includes a foldable USB-C cable and a smart ring keychain design, making it easy to carry in a pocket or attach to a key ring for immediate use in meeting environments. This device supports a data transfer rate of up to 10 GBPS and is constructed with a PVC jacket.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Length | 0.5 ft (0.2 m) |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Operating Temperature Max | 122 Fahrenheit (50 Celsius) |
| Operating Temperature Min | 32 Fahrenheit (0 Celsius) |
| Shipping Weight | 0.05 lbs (0 kg) |
| Storage Temperature | -13° to 158°F (-25°C to 70°C) |
| Storage Temperature Max | 158 Fahrenheit (70 Celsius) |
| Storage Temperature Min | -13 Fahrenheit (-25 Celsius) |
All other specifications 15
| Active/Passive | Active |
| Cable Type | HDMIUSB |
| Color | Black |
| Connector 1 | (1) USB-C Male(1) USB-C Male |
| Connector 2 | (1) HDMI Female(1) HDMI Female |
| Product Type | Active DeviceAdapterConverter |
| TAA Compliant | No |
| Technology Specifications | USB 3.0 |
| UPC | 757120268727 |
| Video Input Support | USB-C |
| Video Output Support | HDMI |
| Video Resolution | 1080p4K4K @ 30Hz4K @ 60Hz |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
Resources
Questions about this part
Will the C2G CG26872 work with my Thunderbolt 3 laptop?
Yes, this adapter is compatible with both USB-C and Thunderbolt 3 ports for video output via DP ALT mode.
What is the maximum resolution supported by this adapter?
This converter supports video resolutions up to 4K @ 30Hz (4096 x 2160 at 30Hz).
Can I use this for presentations on the go?
Yes, the CG26872 features a portable, foldable USB-C cable and a smart ring keychain design for easy transport during travel.
What type of video connection is required for the display?
The adapter requires a display with an HDMI input, such as a projector or HDTV.
Is the USB-C connector reversible?
Yes, the adapter features a reversible and symmetrical USB-C connector for easier connectivity.
