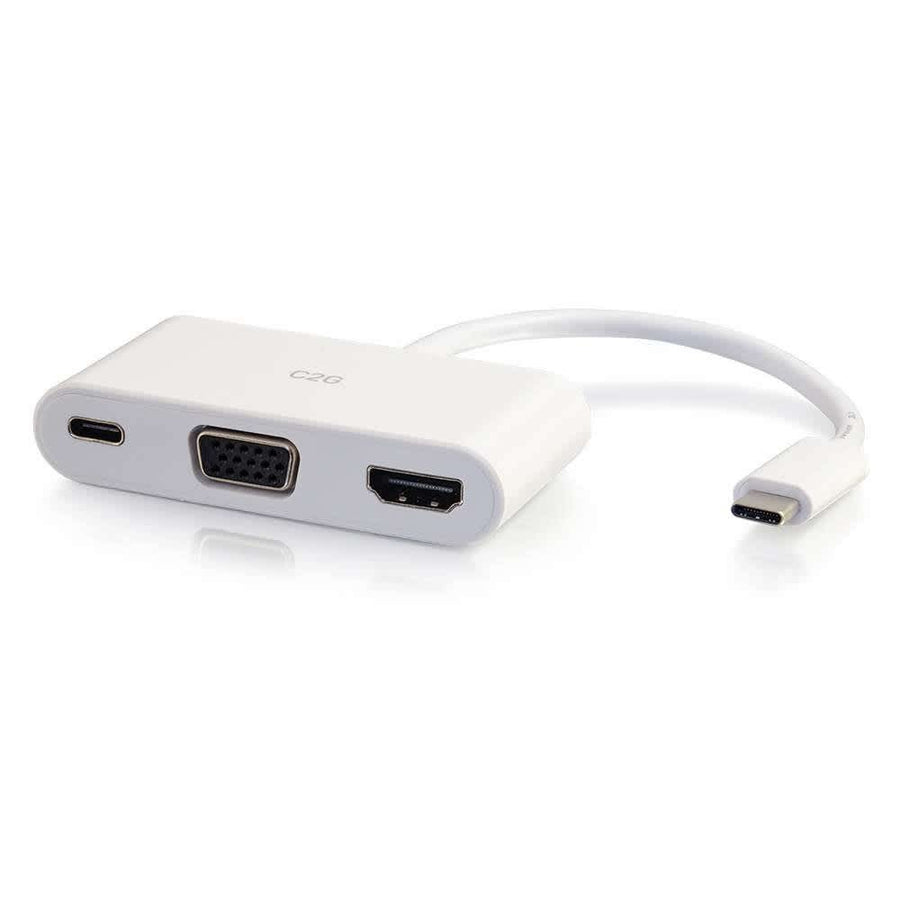

USB-C® to 4K HDMI® and VGA Multiport Adapter with Power Delivery up to 60W - White
USB-C to HDMI and VGA adapter with 60W Power Delivery, supporting 4K @ 30Hz resolution for laptops and tablets
The CG26885 is a white multiport adapter designed to connect USB-C or Thunderbolt 3 enabled laptops, tablets, and desktop computers to various display types. This active device provides simultaneous or independent video output via HDMI and VGA ports. When using the HDMI and VGA ports at the same time, the maximum resolution for each port is 1920x1080p at 60Hz. The HDMI port supports high-resolution video up to 4K (3840x2160 at 30Hz) and 3D video at 1920 x 1080p at 60Hz. Additionally, the adapter includes a USB-C female port that provides up to 60W of Power Delivery to keep connected devices like Microsoft® Surface® Book 2 products or other laptops fully charged during use. This portable solution features a reversible, symmetrical USB-C male connector and a 0.5 ft (0.2 m) cable length with a 0.17 in (4.2 mm) PVC jacket.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.17 in (4.2 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Shipping Weight | 0.1 lbs (0.1 kg) |
| Color | White |
| Connector 1 | (1) USB-C Male(1) USB-C Male |
| Connector 2 | (1) HDMI Female(1) HDMI Female(1) USB-C Female(1) USB-C Female(1) VGA Female(1) VGA Female |
| Product Type | Active DeviceAdapter |
| TAA Compliant | No |
All other specifications 8
| UPC | 757120268857 |
| Video Input Support | USB-C |
| Video Output Support | HDMIVGA |
| Video Resolution | 1080p4K4K @ 30Hz |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | 5 years |
Resources
Questions about this part
Will the CG26885 work with my Microsoft Surface device?
Yes, this adapter is compatible with the Microsoft® Surface® Book 2 and other leading laptops and tablets featuring USB-C or Thunderbolt 3 ports.
Can I use the HDMI and VGA ports at the same time?
Yes, you can display HDMI and VGA video content simultaneously or independently. When used together, the maximum resolution on each port is 1920x1080p at 60Hz.
What is the maximum resolution supported by the HDMI port?
The HDMI port supports video resolutions up to 4K (3840x2160 @ 30Hz) and supports 3D video at 1920 x 1080p at 60Hz.
How much power can this adapter deliver to my laptop?
The USB-C female port provides up to 60W of Power Delivery to keep your connected laptop, tablet, or smartphone charged.
Does this adapter support 3D video?
Yes, the adapter supports 3D video at a resolution of 1920 x 1080p at 60Hz.
