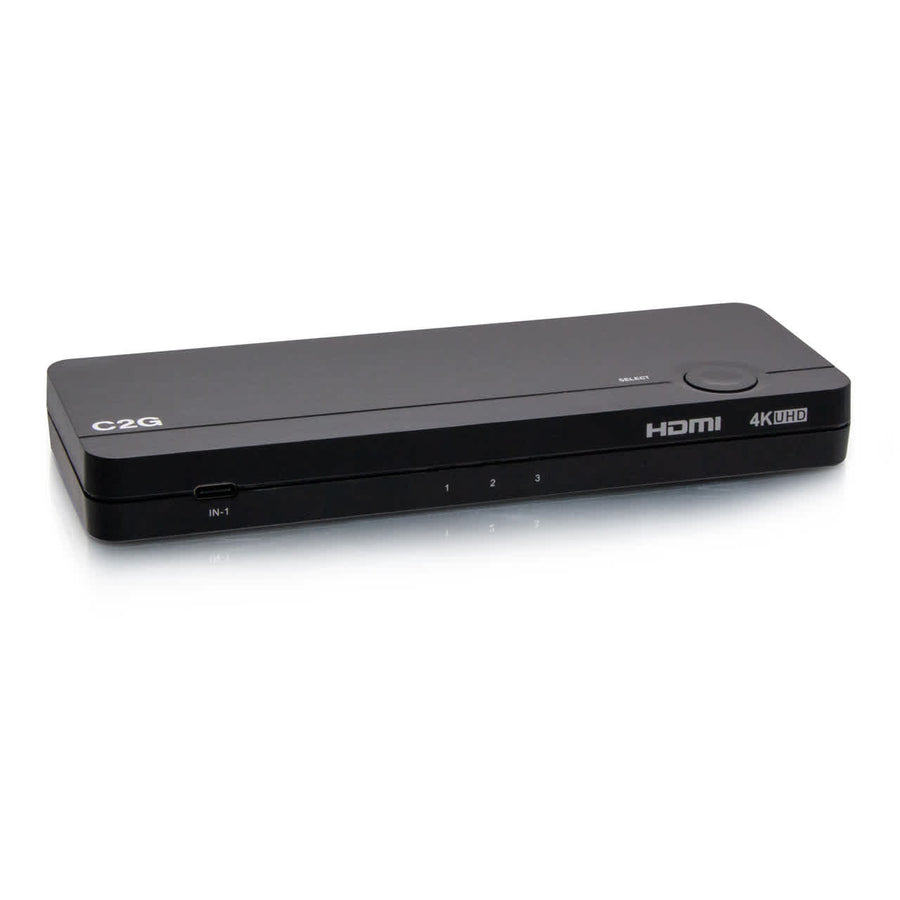

USB-C®/HDMI® 3-Input Combo to HDMI 1-Output KVM with Power Delivery - 4K 60Hz
3-input combo KVM switch supporting USB-C and HDMI inputs with 100W Power Delivery and 4K @ 60Hz resolution
The C2G54541 is a 3-input combo KVM switch designed to streamline workspace setups by allowing users to control three separate computing devices using a single set of peripherals. This active device supports a combination of video inputs, including one USB-C enabled computer, tablet, or phone, alongside two HDMI-enabled devices such as gaming systems, streaming players, or set-top boxes. It supports high-definition video resolutions up to 4K @ 60Hz and High Dynamic Range (HDR), providing high-quality visuals for Ultra HD content. For audio, the switch is compliant with DTS HD and Dolby TrueHD for lossless high-definition playback. This KVM includes 100W USB-C Power Delivery, which allows you to charge a laptop using its own existing power adapter or an external source. The device features both manual and auto-switching modes, including a memory switch function that remembers the last connected device. For installers requiring a standalone power solution, this unit can be paired with the C2G54441 60W USB-C Power Adapter and 28848 3.3ft USB-C 3.2 Gen 2 Cable.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Length | 6.69 in (17 cm) |
| Operating Humidity Max | 50% RH |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Power Delivery | 100 W |
| Shipping Weight | 3 lbs (1.4 kg) |
| Storage Humidity Max | 50% RH (Non-Condensing) |
| Storage Humidity Min | 50% RH (Non-Condensing) |
| Storage Temperature Max | 86 Fahrenheit (30 Celsius) |
All other specifications 15
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Cable Type | KVMUSB |
| Color | Black |
| Connector 1 | (2) HDMI Female(2) USB-A Female(2) USB-C Female |
| Connector 2 | (1) HDMI Female(2) USB-A Female |
| Material | ABS |
| Product Type | Active DeviceSwitch |
| TAA Compliant | Yes |
| Technology Specifications | HDMI 2.0USB 2.0 |
| UPC | 757120545415 |
| Video Input Support | HDMIUSB-C |
| Video Output Support | HDMIUSB-C |
| Video Resolution | 1080p4K4K @ 30Hz4K @ 60Hz |
| Certifications | CENDAA 889Prop 65REACHRoHSTAATSCA |
| Warranty | 5 years |
Resources
Questions about this part
Will the C2G54541 work with my 4K display?
Yes, this KVM supports video resolutions up to 4K @ 60Hz and includes HDR support for Ultra HD content.
How do I provide power to my laptop through this KVM?
The unit supports 100W USB-C Power Delivery. You can use your computer's existing USB-C power adapter or add a 60W USB-C Power Adapter (C2G54441) with a 3.3ft USB-C 3.2 Gen 2 Cable (28848).
What types of inputs can I connect to the C2G54541?
The switch features a combo of 3 inputs: one USB-C port for computers, tablets, or phones, and two HDMI ports for devices like gaming systems or streaming players.
What peripherals can I share with the connected devices?
In addition to sharing a single keyboard, mouse, and display, you can also share webcams, printers, USB flash drives, and additional USB hubs.
Does this KVM switch require specialized software for installation?
No, the C2G54541 is a plug-and-play device that requires no software or drivers for operation.
