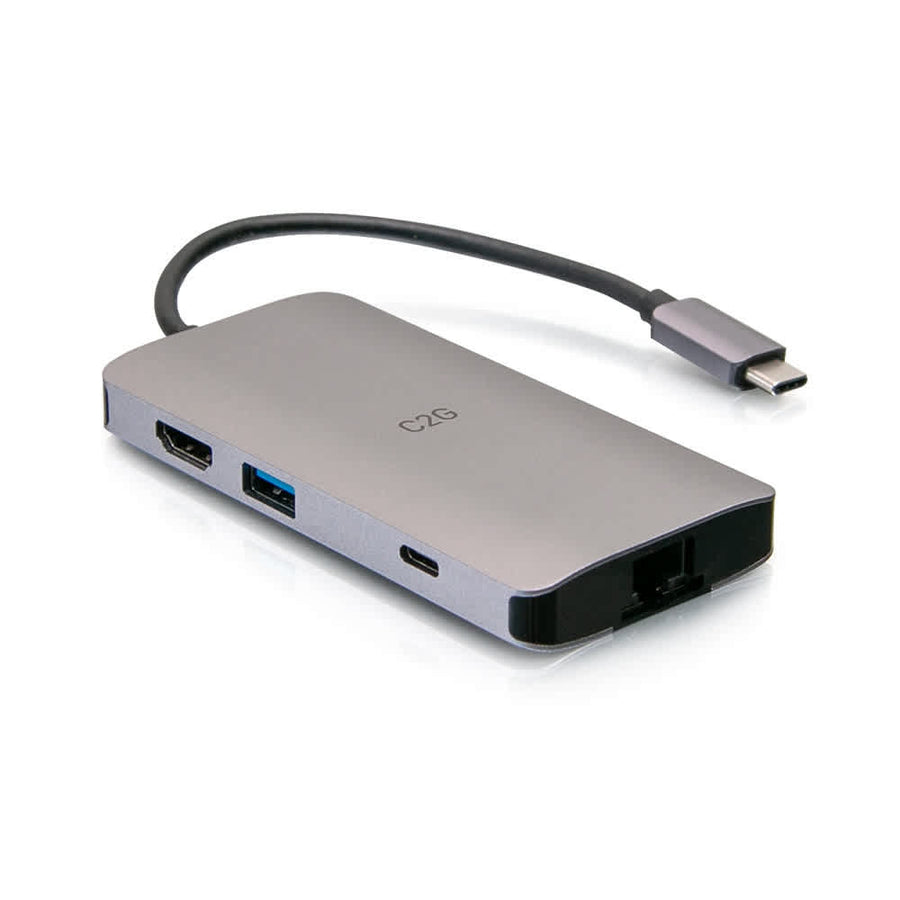

USB-C 8-in-1 Mini Dock with HDMI, 2x USB-A, Ethernet, SD Card Reader, and USB-C Power Delivery

USB-C 8-in-1 Mini Dock with HDMI, 2x USB-A, Ethernet, SD Card Reader, and USB-C Power Delivery

C2G54458
IN STOCK

USB-C 8-in-1 docking station with 4K HDMI, Gigabit Ethernet, SD card reader, and 100W Power Delivery support

The C2G54458 is a USB-C 8-in-1 Mini Dock designed to transform a laptop into a complete desktop workstation through a single connection. This active device connects via a reversible USB-C Male connector to USB-C or Thunderbolt 3 enabled laptops running Windows, MacOS, or Linux. It provides high-definition video output through an HDMI port capable of supporting resolutions up to 4K @ 30Hz (3840 x 2160). For high-speed data, the dock features three USB 3.0 Type-A ports and one USB-C data port, all supporting SuperSpeed transfer rates of up to 5 GBPS. Connectivity is further expanded with a Gigabit Ethernet RJ-45 port for stable, hard-wired internet access and a built-in SD card reader for multimedia transfers. This dock supports up to 100W of Power Delivery through its USB-C Female port; when used with your laptop's existing power adapter, it maintains battery levels while powering all connected peripherals. The device is a plug-and-play solution requiring no additional software or drivers for operation. This dock is compliant with NDAA 889 and carries CE, RoHS, REACH, TSCA, and Prop 65 certifications.

Specifications are supplied by the manufacturer. For complete details, check the Resources section.

Key features

·4K HDMI output supporting resolutions up to 3840 x 2160 @ 30Hz·Up to 100W USB-C Power Delivery to charge your laptop while working·Gigabit Ethernet RJ-45 port for 1000Mbps wired network connectivity·High-speed data transfer up to 5 GBPS via USB-A and USB-C ports·Integrated SD Card Reader for rapid multimedia file transfers

Specifications

15 fields
Main specifications 8
Amps5 Amp
Shipping Weight0.28 lbs (0.1 kg)
ColorGray
Connector 1(1) USB-C Male
Connector 2(1) HDMI Female(1) RJ-45 Female(1) SD Card Reader(1) USB-C Female(3) USB 3.0 A Female
Product TypeActive DeviceDocking Station
TAA CompliantNo
UPC757120544586
All other specifications 7
Video Input SupportUSB-C
Video Output SupportHDMI
Video Resolution1080p4K4K @ 30Hz
Works WithLinuxMacOSWindows
CertificationsCENDAA 889Prop 65REACHRoHSTSCA
Data Transfer Rate5 GBPS
Warranty5 years

Resources

1 document · nothing behind a form

Questions about this part

Will the C2G54458 work with my laptop?

The dock is compatible with laptops featuring USB-C or Thunderbolt 3 ports running Windows, MacOS, or Linux operating systems.

How much power can this dock provide to my laptop?

This mini dock supports up to 100W of Power Delivery through the USB-C port when using your laptop's original power adapter.

Can I connect a 4K monitor to this docking station?

Yes, the HDMI port supports video resolutions up to 4K @ 30Hz (3840 x 2160) for high-definition content.

What data transfer speeds should I expect?

The USB-A and USB-C data ports support SuperSpeed transfer rates of up to 5 GBPS for rapid file movement.

Does this dock require any software installation?

No, this is a plug-and-play device that functions without the need for additional software or drivers.
