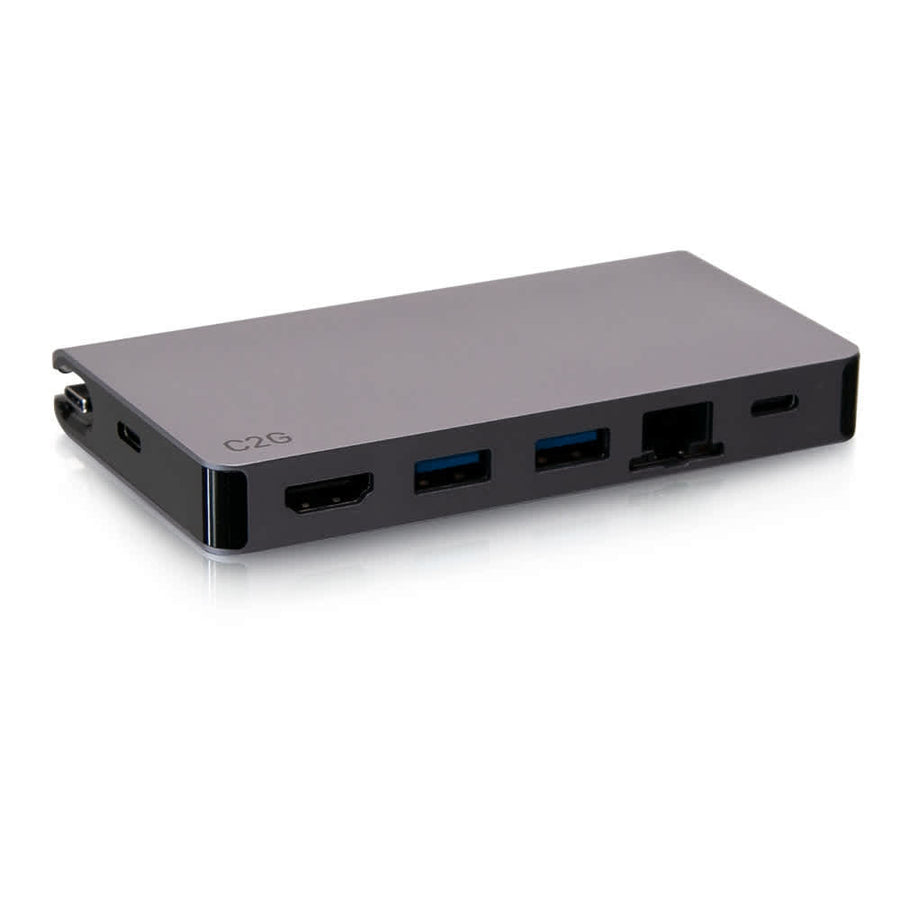

USB-C 5-in-1 Compact Dock with HDMI, 2x USB-A, Ethernet, and USB-C Power Delivery
USB-C 5-in-1 compact dock with 4K HDMI, dual USB-A, Gigabit Ethernet, and 100W Power Delivery support
The C2G54457 is a USB-C 5-in-1 Compact Dock designed to expand connectivity for USB-C or Thunderbolt™ 3 enabled laptops. This active device serves as a desktop solution for mobile professionals working in office environments or from home. The dock features one HDMI port supporting resolutions up to 4K @ 30Hz (3840 x 2160) for high-definition audio/video output. For data transfer, it includes two USB 3.0 A female ports and one USB-C female port, all supporting SuperSpeed data transfer rates of up to 5Gbps. An integrated RJ-45 female port provides reliable Gigabit Ethernet connectivity with speeds of 10/100/1000Mbps. This dock supports 100W Power Delivery (20V/5A) through the USB-C female port, allowing the user to charge their laptop using the existing USB-C power adapter that came with the computer. The maximum power delivered depends on the capacity of the connected adapter to support both the laptop charge and the dock's connected peripherals. This device is compatible with Windows, MacOS, and Linux systems.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 5 Amp |
| Shipping Weight | 0.36 lbs (0.2 kg) |
| Color | Black |
| Connector 1 | (1) USB-C Male(1) USB-C Male |
| Connector 2 | (1) HDMI Female(1) HDMI Female(1) RJ-45 Female(1) RJ-45 Female(1) USB-C Female(1) USB-C Female(2) USB 3.0 A Female(2) USB 3.0 A Female |
| Product Type | Active DeviceDocking Station |
| TAA Compliant | No |
| UPC | 757120544579 |
All other specifications 7
| Video Input Support | USB-C |
| Video Output Support | HDMIUSB-C |
| Video Resolution | 1080p4K4K @ 30Hz |
| Works With | LinuxMacOSWindows |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Warranty | 5 years |
Questions about this part
Will the C2G54457 work with my MacBook or Windows laptop?
Yes, this dock is compatible with Windows, MacOS, and Linux systems via USB-C or Thunderbolt™ 3.
Can this dock charge my laptop?
Yes, the USB-C female port supports up to 100W Power Delivery (20V/5A) to power and charge your laptop using your laptop's own USB-C power adapter.
What is the maximum video resolution supported by the HDMI port?
The HDMI port supports video output with a resolution of up to 4K @ 30Hz (3840 x 2160).
How fast can I transfer data through the USB ports?
The two USB-A 3.0 ports and the single USB-C data port all support SuperSpeed data transfer rates of up to 5Gbps.
Does the C2G54457 provide a wired internet connection?
Yes, the integrated RJ-45 port provides Gigabit Ethernet support for 10/100/1000Mbps connection speeds.
