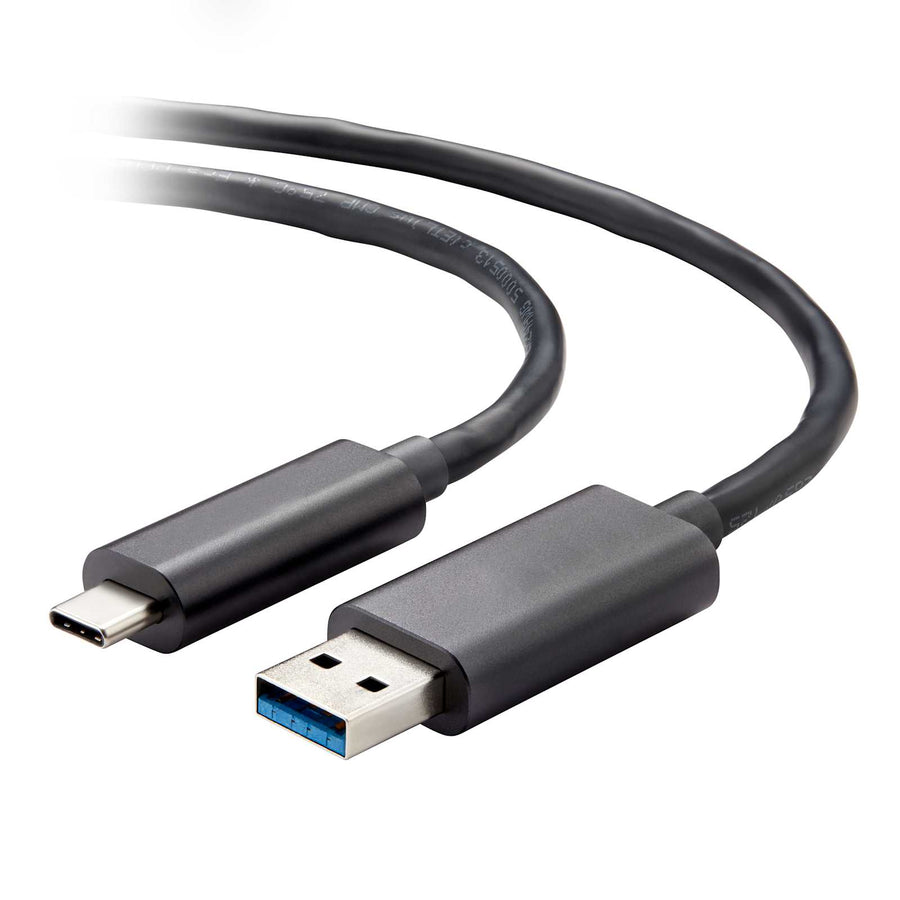

USB 3.2 Gen 2x1 Type C to Type A Active Optical Cable Plenum from Vaddio
Plenum-rated USB 3.2 Gen 2x1 Type C to Type A active optical cable for 10 Gbps video and audio extension up to 98.43 ft (30 m)
The Vaddio 440-1007-030 is a shielded active optical USB 3.2 Gen 2x1 Type C to Type A cable designed to extend high-bandwidth USB signals over long distances. This 98.43 ft (30 m) cable supports SuperSpeed data rates of up to 10 Gbps, making it suitable for high-quality video and audio transmission in professional AV environments. Because it is port-powered and does not require external repeater hubs, it is an efficient choice for installation through conduits in BYOD (Bring Your Own Device) setups. The cable is backwards compatible, supporting USB 3.1, USB 3.0, and USB 2.0 signals. Its composite design provides resistance to EMI/RFI interference and carries a CMP plenum rating for safe installation in air-handling spaces. This cable is thinner and lighter than standard copper alternatives, facilitating easier routing. Note that this cable is intended for signal transport and does not carry sufficient power to charge most USB endpoints.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Length | 98.43 ft (30 m) |
| Shipping Dimensions | 10" x 8" x 7" (254 x 203.2 x 177.8 mm) |
| Shipping Weight | 2.2 lbs (1 kg) |
| Cable Type | USB |
| Color | Black |
| Compatible With | CiscoOtherPanasonicPolycomSonyVaddio |
| Connector 1 | USB-A Male |
| Connector 2 | USB-C Male |
All other specifications 8
| Extension Type | Active USBUSB 2.0USB 3.0 |
| Jacket Rating | Plenum Rated |
| Manufacturer | Vaddio |
| Signal Type | USB 2.0USB 3.0 |
| TAA Compliant | No |
| UPC | 840077506971 |
| Certifications | CEFCC |
| Warranty | 3 years |
Resources
Questions about this part
Will this Vaddio cable work with my Logitech Rally or HuddleSHOT?
Yes, this cable is tested and compatible with the Vaddio HuddleSHOT All-in-One Conferencing Camera and Logitech Rally systems.
Can this USB cable charge my laptop or mobile device?
No, this cable is intended for transporting high-quality video and audio signals and does not carry enough power to charge most USB endpoints.
Is this cable suitable for installation in ceiling plenums?
Yes, this cable features a CMP plenum-rated jacket and a composite design resistant to EMI/RFI interference.
What is the maximum data speed for this 98.43 ft cable?
This is a SuperSpeed rated cable that supports the full bandwidth of USB 3.2 Gen 2, carrying signals up to 10 Gbps.
Does this cable require external power or drivers to work?
This is a plug-and-play cable that is port-powered, meaning it requires no external power source or additional drivers.
