USB 3.2 Gen 2x1 Type C to Type A Active Optical Cable Plenum from Vaddio
Active optical USB 3.2 Gen 2x1 Type C to Type A cable, 49.21 ft (15 m) length, plenum rated for high-bandwidth signal transport

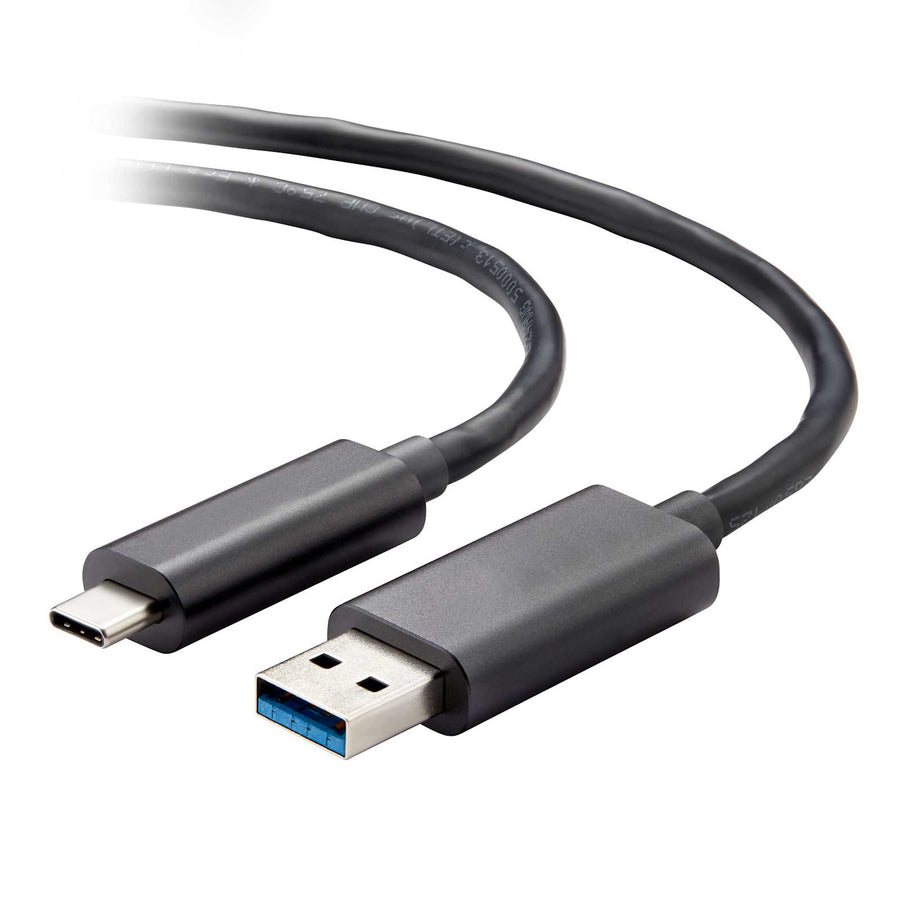

The Vaddio 440-1007-015 is a shielded active optical fiber cable designed to extend USB 3.2 Gen 2 products over a 49.21 ft (15 m) distance. This SuperSpeed cable supports bandwidths up to 10 Gbps, making it suitable for transporting high-quality audio and video signals in professional conferencing environments. It features a Type C male connector on one end and a USB-A male connector on the other. Because this cable is port-powered, it does not require an external power source or repeater hubs, which simplifies installation through conduits. The composite design is built to be resistant to EMI/RFI interference and is plenum-rated (CMP). While this cable is backwards compatible with USB 2.0, 3.0, and 3.1 signals, it is intended for data transport and does not carry enough power to charge most USB endpoints. This plug-and-play solution requires no drivers and is optimized for Bring Your Own Device (BYOD) setups.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Length | 49.21 ft (15 m) |
| Shipping Dimensions | 10" x 8" x 7" (254 x 203.2 x 177.8 mm) |
| Shipping Weight | 1.26 lbs (0.6 kg) |
| Cable Type | USB |
| Color | Black |
| Compatible With | CiscoOtherPanasonicPolycomSonyVaddio |
| Connector 1 | USB-A Male |
| Connector 2 | USB-C Male |
All other specifications 8
| Extension Type | Active USBUSB 2.0USB 3.0 |
| Jacket Rating | Plenum Rated |
| Manufacturer | Vaddio |
| Signal Type | USB 2.0USB 3.0 |
| TAA Compliant | No |
| UPC | 840077506964 |
| Certifications | CEFCC |
| Warranty | 3 years |
Resources
Questions about this part
Will this Vaddio cable work with my Logitech Rally or Vaddio HuddleSHOT?
Yes, this cable is compatible with the Vaddio HuddleSHOT All-in-One Conferencing Camera and Logitech Rally systems.
Can this USB cable be used to charge my laptop or mobile device?
No, this cable is intended for transporting high-quality video and audio signals and does not carry sufficient power to charge most USB endpoints.
Is this cable suitable for installation in plenum air spaces?
Yes, this 49.21 ft (15 m) cable is plenum-rated (CMP) and features a composite design resistant to EMI/RFI interference.
Does this active optical cable require any additional power or drivers?
This is a plug-and-play cable that is port-powered and does not require an external power source or the installation of any drivers.
Is this cable compatible with older USB versions?
Yes, while optimized for USB 3.2 Gen 2, it is backwards compatible with USB 2.0, 3.0, and 3.1 signal types.
