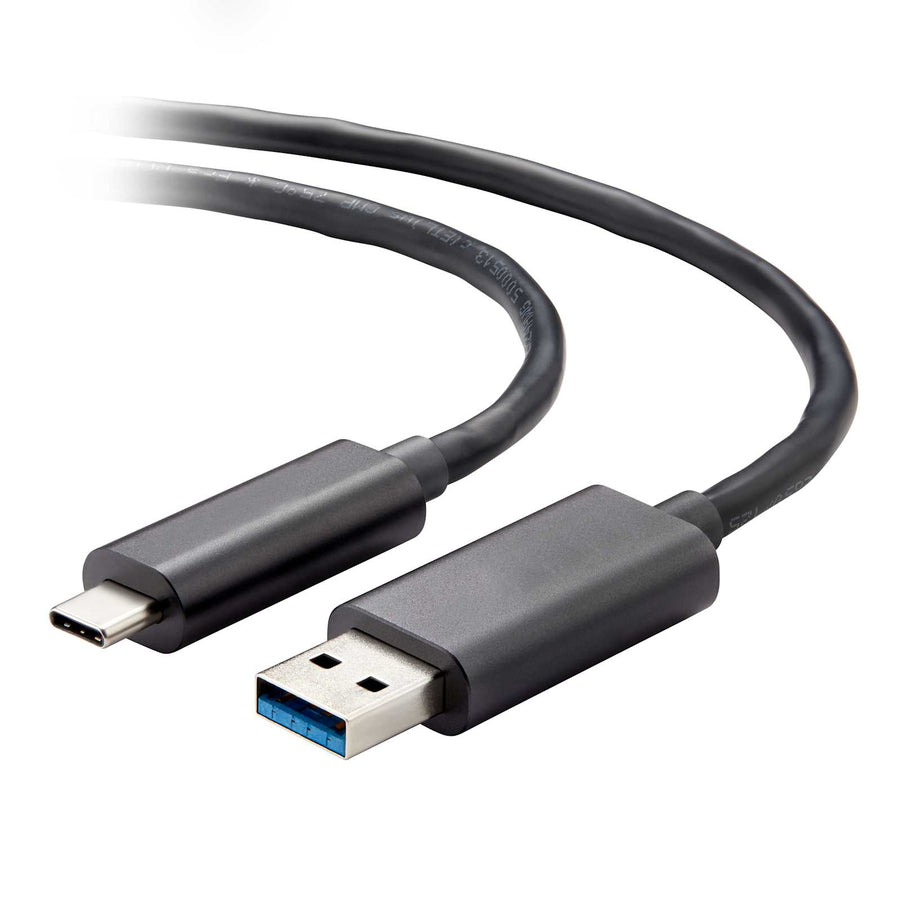

USB 3.2 Gen 2x1 Type C to Type A Active Optical Cable Plenum from Vaddio
26.25 ft (8 m) active optical USB 3.2 Gen 2x1 Type C to Type A cable, plenum-rated for high-bandwidth conferencing.
The Vaddio 440-1007-008 is a shielded active optical fiber cable designed to support the full bandwidth of USB 3.2 Gen 2, providing SuperSpeed data rates of up to 10 Gbps. This 26.25 ft (8 m) cable is engineered for high-quality video and audio signal transport in professional conferencing environments, including Bring Your Own Device (BYOD) setups. Because it is port-powered, it operates without the need for external power sources or repeater hubs, which facilitates much easier installation through tight conduits. This composite design is resistant to EMI/RFI interference and features a plenum-rated jacket for safe installation in air handling spaces. The cable is thinner and lighter than standard copper alternatives and is backwards compatible with USB 2.0, 3.0, and 3.1 signals. This is a plug-and-play solution that requires no drivers for operation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Length | 26.25 ft (8 m) |
| Shipping Dimensions | 10" x 8" x 7" (254 x 203.2 x 177.8 mm) |
| Shipping Weight | 0.78 lbs (0.4 kg) |
| Cable Type | USB |
| Color | Black |
| Compatible With | CiscoOtherPanasonicPolycomSonyVaddio |
| Connector 1 | USB-A Male |
| Connector 2 | USB-C Male |
All other specifications 8
| Extension Type | Active USBUSB 2.0USB 3.0 |
| Jacket Rating | Plenum Rated |
| Manufacturer | Vaddio |
| Signal Type | USB 2.0USB 3.0 |
| TAA Compliant | No |
| UPC | 840077506957 |
| Certifications | CEFCC |
| Warranty | 3 years |
Resources
Questions about this part
Will the 440-1007-008 work with my Vaddio HuddleSHOT?
Yes, this cable is compatible with the Vaddio HuddleSHOT All-in-One Conferencing Camera and other USB 3.0 conferencing cameras.
Can this USB cable be used to charge my devices?
No, this cable is intended for transporting high-quality video and audio signals; it does not carry enough power to charge most USB endpoints.
Is this cable suitable for installation in air plenum spaces?
Yes, the 440-1007-008 is a plenum-rated cable with a composite design resistant to EMI/RFI interference.
Does this active optical cable require additional power or drivers?
This is a plug-and-play cable that requires no drivers and is port-powered, meaning no external power source is needed for operation.
What is the maximum data rate for this USB cable?
This SuperSpeed rated cable supports the full bandwidth of USB 3.2 Gen 2, carrying signal speeds up to 10 Gbps.
