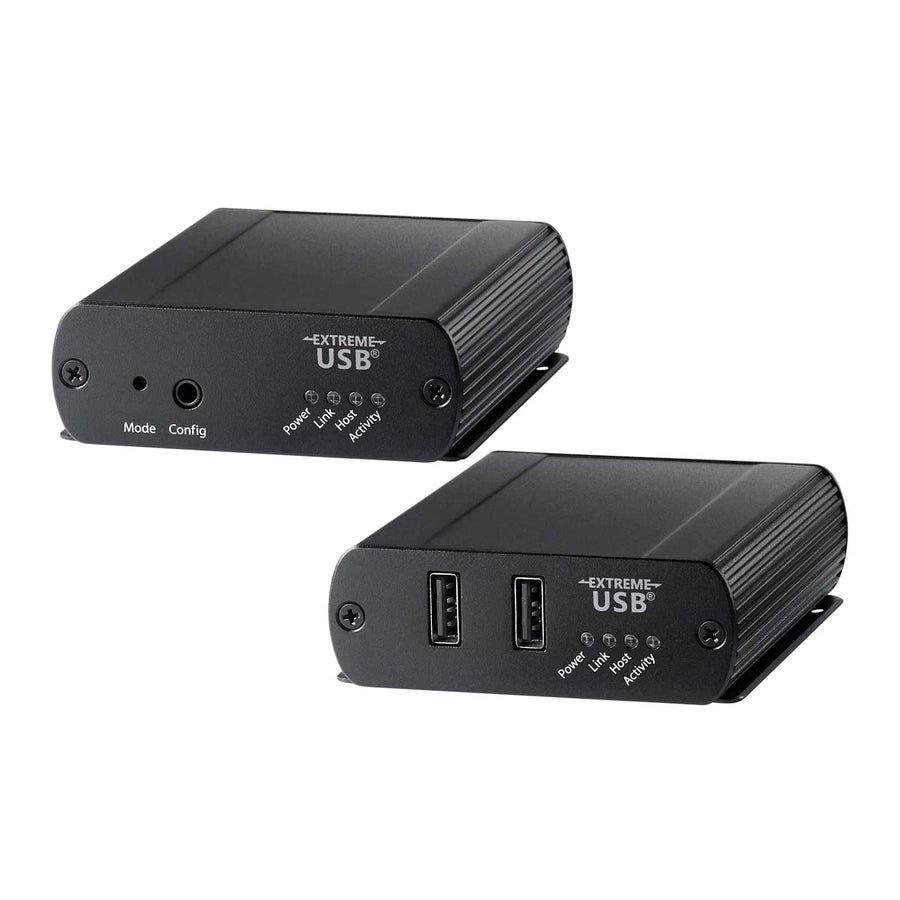

USB 2.0 Extenders
USB 2.0 extender set for high-bandwidth devices, supporting signals up to 328 ft. (100m) over Cat-5e or better cable
The Vaddio 999-1005-052 USB 2.0 Extenders provide a complete plenum-rated cabling solution for installations where high-bandwidth USB 2.0 devices, such as cameras or other AV sources, must be located far from the host computer. This system utilizes an active USB extension method to transmit signals over distances of up to 328 ft. (100m) using Cat-5e or better cabling. The kit is designed to support both USB 2.0 and USB 1.1 signal types, ensuring compatibility with a wide range of hardware. For system stability, the solution supports up to 30 USB devices simultaneously. The extension process involves a transmit (TX) unit for the remote device side and a receive (RX) unit for the host PC side. This system is compatible with various operating systems including Windows 7, Windows 10, MacOS, Linux, and ChromeOS.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3 in (7.6 cm) |
| Height | 1 in (2.5 cm) |
| Shipping Dimensions | 10" x 8" x 7" (254 x 203.2 x 177.8 mm) |
| Shipping Weight | 3 lbs (1.4 kg) |
| Width | 3.4 in (8.6 cm) |
| Color | Black |
| Extension Type | Active USBUSB 2.0 |
| Input Ports | USB 2.0 |
All other specifications 8
| OneLINK Compatibility | No |
| Output Ports | USB 2.0 |
| Power Cord | US Cord |
| Power Type | Local Power |
| Signal Type | USB 1.1USB 2.0 |
| TAA Compliant | No |
| UPC | 840077506025 |
| Warranty | 3 years |
Resources
Questions about this part
How far can the 999-1005-052 extend a USB signal?
This extender reaches up to 328 ft. (100m) when using Cat-5e or better cabling.
Which operating systems are compatible with these USB extenders?
The system is supported by Windows 7, Windows 10, MacOS, Linux, and ChromeOS.
Can I connect multiple USB devices to this extender?
Yes, the system can support up to 30 USB devices simultaneously.
What type of cable is required for the extension?
The extension requires Cat-5e or better cable to maintain signal integrity over the full 328 ft. (100m) range.
Is the 999-1005-052 TAA compliant?
This specific model is not listed as TAA compliant.
