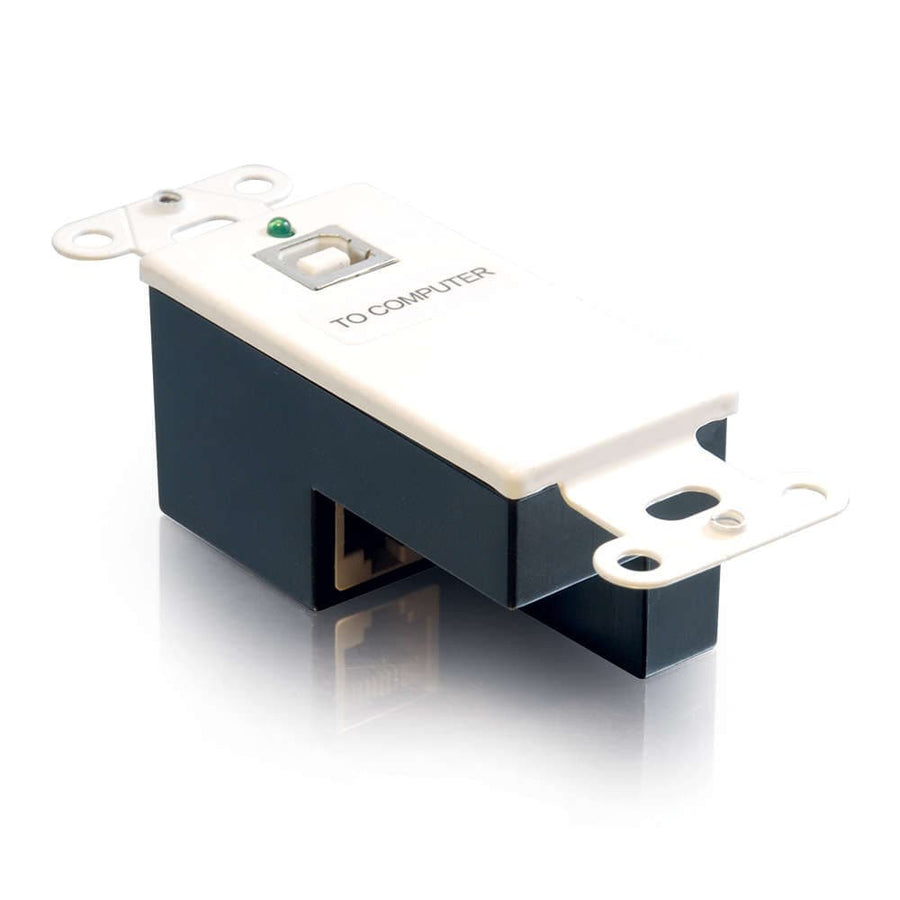

USB 1.1 Over Cat5 Superbooster™ Extender Wall Plate Transmitter
USB 1.1 extender wall plate transmitter that extends signals up to 150ft over Cat5 cabling
The C2G CG29344 is a wall plate transmitter designed to overcome standard USB length limitations by extending signals up to 150ft over Cat5 cabling. This active device functions as the sending component of a complete extension solution. To achieve a full installation, this transmitter must be paired with a compatible receiver, which is sold separately. The unit features a USB-B female connector and an RJ-45 female port to facilitate the connection to your host computer. This solution is useful for placing peripherals like cameras, projectors, printers, or webcams in remote locations without requiring driver installations or specialized software. When extending signals to support interactive whiteboards, C2G recommends the use of this Superbooster series. For high-power peripherals, such as USB hubs or external drives, external power may be required to ensure proper operation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Weight | 0.33 lbs (0.2 kg) |
| Cable Type | USB |
| Color | White |
| Connector 1 | (1) USB-B Female(1) USB-B Female |
| Connector 2 | (1) RJ-45 Female(1) RJ-45 Female |
| Product Type | Active DeviceExtenderTransmitterWall Plate |
| TAA Compliant | No |
| Technology Specifications | USB 1.1 |
| UPC | 757120293446 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 12 MBPS |
| Patent Number | 7,741,562 |
Resources
Questions about this part
Is the C2G CG29344 a complete extender kit?
No, this is the wall plate transmitter only. It must be paired with a separate C2G receiver to create a complete solution.
What type of cabling is required for the CG29344?
This transmitter uses an RJ-45 female port to transmit the USB 1.1 signal over Cat5 cabling up to 150ft.
Do I need to install drivers to use the CG29344?
No, this is an active device that requires no driver installation or specialized software for operation.
Will this work with high-power USB devices?
Devices with high power demands, such as USB hubs or external hard drives, may require external power for reliable operation.
Which USB version is supported by this transmitter?
The CG29344 is specifically designed for USB 1.1 technology with a data transfer rate of 12 MBPS.
