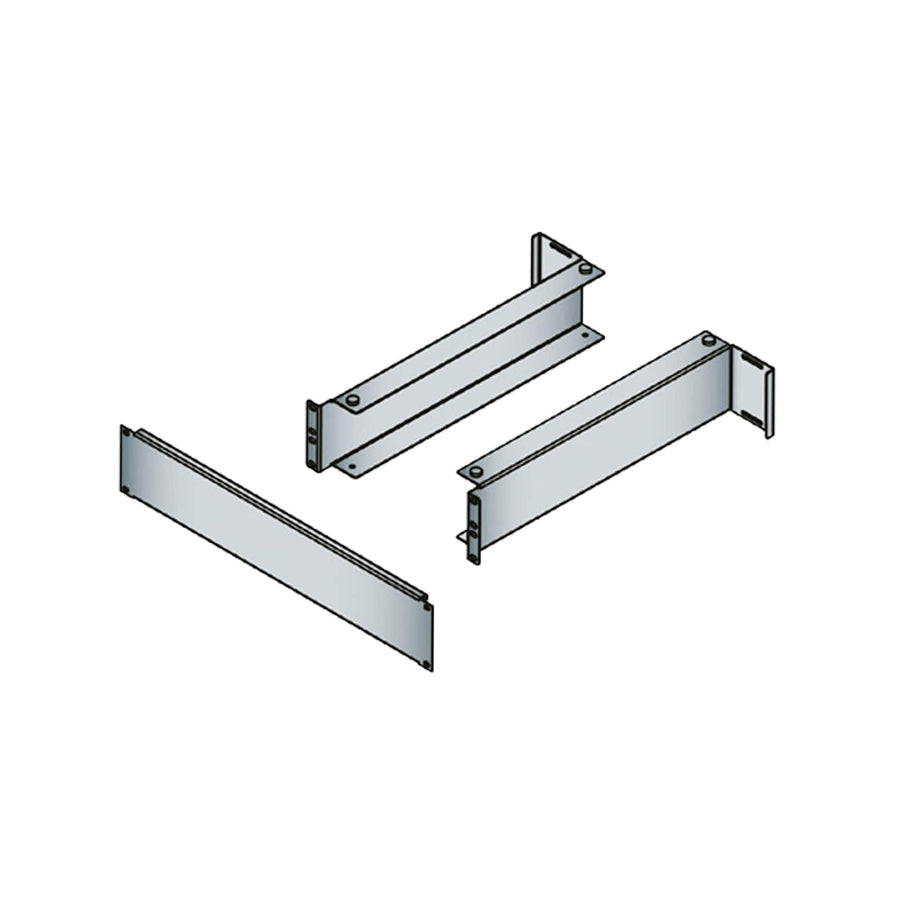

UPS Subplate Support Kit for SR Series
UPS subplate support kit for SR Series racks, includes a 2RU blank panel to seal the 4RU base
The SR-UPS-BKT is a dedicated subplate support kit designed for use within Middle Atlantic SR Series racks. This hardware kit allows installers to position a UPS within the top two rackspaces of a 4RU SR base. To maintain a clean aesthetic and consistent airflow management, the kit also includes a 2RU blank panel that seals the bottom two rackspaces of the base. This specific mounting solution is seismic rated, providing stability for heavy power backup equipment. For technical planning and submittals, the SR Series Pivoting Rack CAD Technical Specification Drawings and Revit Models are available in the resources section.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 16 in (40.6 cm) |
| Height | 3.5 in (8.9 cm) |
| Shipping Weight | 5.92 lbs (2.7 kg) |
| Width | 22.85 in (58 cm) |
| Base Series | SR |
| Seismic Rated | Yes |
| UPC | 656747137020 |
Resources
Questions about this part
What is the purpose of the SR-UPS-BKT in an SR Series rack?
It is designed to hold a UPS in the top two rackspaces of a 4RU SR base and includes a 2RU blank panel to seal the bottom section.
Does this kit support seismic requirements?
Yes, this kit is seismic rated for use with the SR Series.
Is the SR-UPS-BKT TAA compliant?
Yes, this product is TAA compliant for use in regulated installations.
Which documentation should I use for submittals?
You can use the SR Series Pivoting Rack 3 Part Specification or the CAD Technical Specification Drawings for detailed submittals.
What is the required rack series for this support kit?
This kit is specifically designed for use with the SR Series base.
