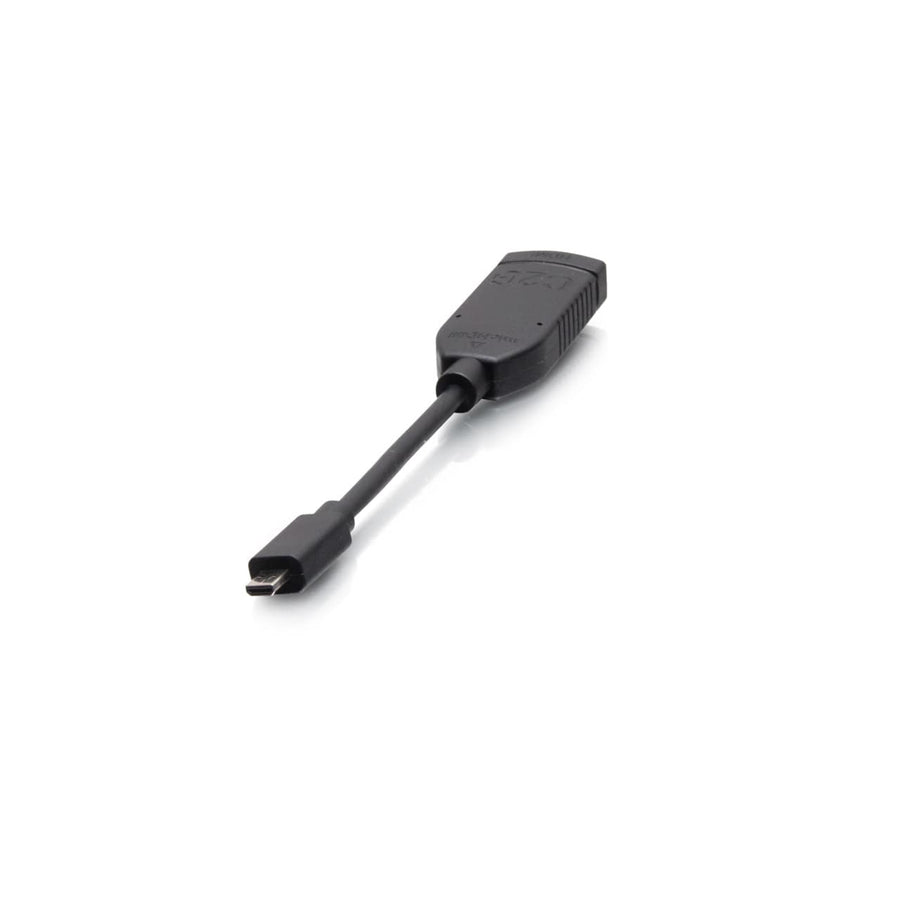

Universal HDMI® Dongle Adapter Ring Micro HDMI Adapter with Antimicrobial Technology
Micro HDMI male to HDMI female dongle adapter supporting 4K @ 30Hz resolution with antimicrobial surface protection
The C2G30048 is a Micro HDMI male to HDMI female dongle adapter designed for quick connectivity between Micro HDMI ports and standard HDMI equipment. This adapter is an ideal addition to an existing HDMI Adapter Ring, providing a portable solution for connecting laptops or small-format devices to monitors, projectors, or displays in office or home environments. It supports video resolutions including 1080p and 4K @ 30Hz, having undergone 100% functional testing to ensure performance for high-resolution applications. To maintain surface cleanliness, the connectors feature BioCote® antimicrobial technology, which helps inhibit the growth of microorganisms like bacteria and mold that can cause staining or material degradation. This compact dongle is built with a PVC jacket that is both FT1 and VW-1 rated. For installation, the device has a minimum bend radius of 25mm (about 0.98 in) and is rated for operating temperatures up to 80°C. It features a black finish and includes an eyelet for secure attachment.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Operating Humidity Max | 90% RH (Non-Condensing) |
| Operating Humidity Min | 0% RH (Non-Condensing) |
| Shipping Weight | 0.1 lbs (0 kg) |
| Storage Humidity Max | 90% RH (Non-Condensing) |
| Storage Humidity Min | 0% RH (Non-Condensing) |
| Adapter Style | Dongle |
| Antimicrobial Coated | Yes |
| Color | Black |
All other specifications 13
| Connector 1 | Micro HDMI Male |
| Connector 2 | (1) HDMI Female |
| Eyelet Option | With Eyelet |
| Jacket Rating | FT1 RatedVW-1 Rated |
| Product Type | Active DeviceAdapterConverter |
| TAA Compliant | No |
| UPC | 757120300489 |
| Video Input Support | HDMI |
| Video Output Support | HDMI Micro |
| Video Resolution | 1080p4K4K @ 30Hz |
| Certifications | CENDAA 889Prop 65REACHTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
Will the C2G30048 work with my 4K display?
Yes, this adapter is tested for 100% functionality at 4K @ 30Hz resolutions, making it suitable for high-performance 4K video applications.
Can I use this with the Legrand HDMI Adapter Ring?
Yes, this Micro HDMI to HDMI Dongle Adapter is designed to attach easily to any of our HDMI Adapter Rings to expand your connectivity options.
What is the purpose of the antimicrobial coating on the connectors?
The built-in BioCote® technology helps inhibit the growth of microorganisms like bacteria and mold that can cause staining, odors, or material degradation on the surface.
Does this adapter support standard HDMI cables?
Yes, the female end of this dongle accepts a standard HDMI cable, allowing you to connect a Micro HDMI device to any HDMI-enabled monitor or projector.
What are the physical installation requirements for this dongle?
The adapter has a minimum bend radius of 25mm (about 0.98 in) and is rated for operating temperatures up to 80°C.
