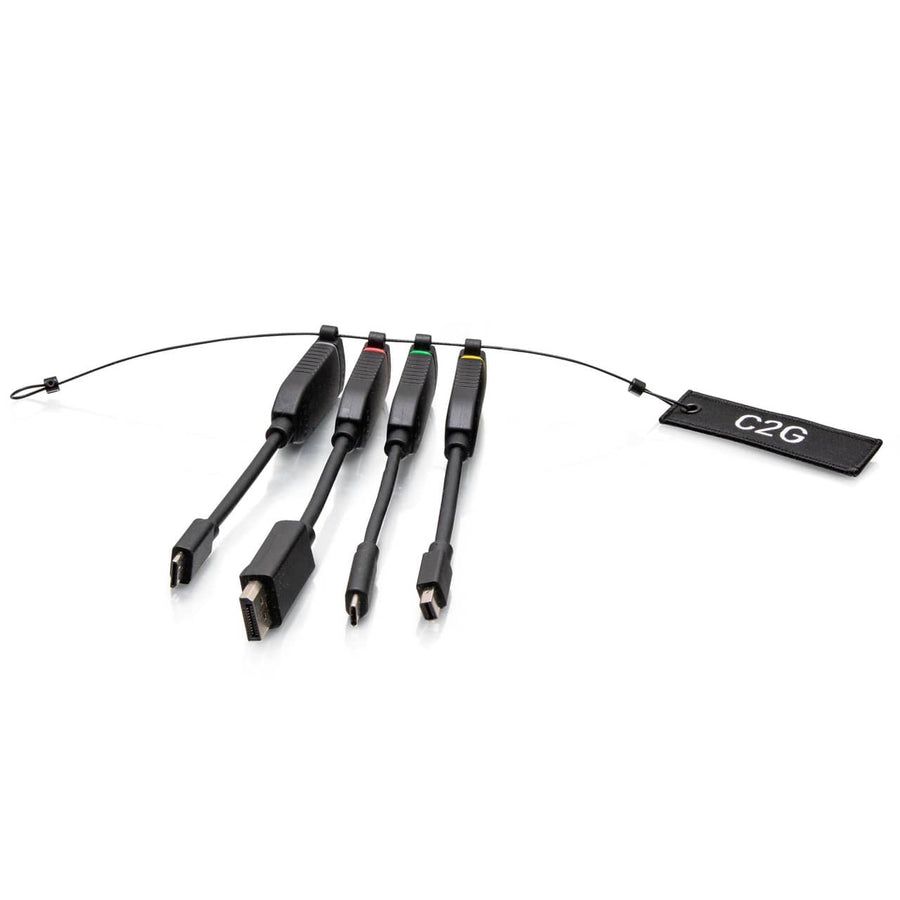

Universal 4K HDMI® Dongle Adapter Ring with Color Coded Mini DisplayPort™, DisplayPort, USB-C®, and Mini HDMI
4K HDMI dongle adapter ring with DisplayPort, Mini HDMI, Mini DisplayPort, and USB-C male outputs for versatile boardroom connectivity
The C2G30289 is a Universal 4K HDMI® Dongle Adapter Ring designed to provide versatile connectivity in conference rooms, huddle spaces, lecture halls, and classrooms. This active adapter ring utilizes a patented dongle-style design to prevent laptops from shifting or sitting unevenly on tables, which often occurs with standard, bulkier adapters. This specific bundle provides four distinct male outputs: DisplayPort, HDMI Mini, Mini DisplayPort, and USB-C, all connecting to a single HDMI Female input. Each adapter is color-coded to allow installers and users to identify the required connection quickly. The ring utilizes a universal cable mount that attaches directly to the existing in-room HDMI display cable, allowing the adapters to slide easily to the connector for use and then away to reduce tabletop clutter. For organized deployment, the system includes integrated pull tabs for quick retrieval and a mounting setup that helps manage cable strain. This active device supports video resolutions up to 4K @ 60Hz, ensuring high-fidelity video for modern digital presentations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Operating Humidity Max | 90% RH (Non-Condensing) |
| Operating Humidity Min | 0% RH (Non-Condensing) |
| Shipping Weight | 0.61 lbs (0.3 kg) |
| Storage Humidity Max | 90% RH (Non-Condensing) |
| Storage Humidity Min | 0% RH (Non-Condensing) |
| Adapter Style | Dongle |
| Antimicrobial Coated | No |
| Color | Black |
All other specifications 19
| Connector 1 | (4) HDMI Female |
| Connector 2 | (1) DisplayPort Male(1) HDMI Mini Male(1) Mini DisplayPort Male(1) USB-C Male |
| DisplayPort to HDMI Adapter | Yes |
| Jacket Rating | FT1 RatedVW-1 Rated |
| Lightning to HDMI Adapter | No |
| Micro HDMI to HDMI Adapter | No |
| Mini DisplayPort to HDMI Adapter | Yes |
| Mini HDMI to HDMI Adapter | Yes |
| Mounting Option | Universal Cable Mount |
| Product Type | Active DeviceAdapterAdapter RingConverter |
| UPC | 757120302896 |
| USB-A to USB-C Adapter | No |
| USB-C to HDMI Adapter | Yes |
| VGA to HDMI Adapter | No |
| Video Input Support | HDMI |
| Video Output Support | DisplayPortHDMI MiniMini DisplayPortUSB-C |
| Video Resolution | 1080p4K4K @ 30Hz4K @ 60Hz |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Warranty | Lifetime |
Resources
Questions about this part
Will this C2G30289 ring work with my 4K display?
Yes, this active device supports video resolutions up to 4K @ 60Hz, including 1080p, ensuring compatibility with modern high-resolution displays.
What specific connections are included in this bundle?
This ring includes one DisplayPort Male, one HDMI Mini Male, one Mini DisplayPort Male, and one USB-C Male connector for a total of four outputs.
How do I prevent the adapters from sliding down the HDMI cable?
The system can be used with an optional stopper that fits on HDMI cables ranging from 5mm to 10mm in diameter to prevent the adapters from sliding too far.
How is the ring mounted to the existing cabling?
The ring uses a universal cable mount that attaches directly to the in-room HDMI display cable, keeping the adapters within reach but out of the way when not in use.
Is there technical documentation available for the installation?
You can refer to the Universal 4K HDMI Adapter Ring Quick Start Guide (PDF) for installation details and guidance.
