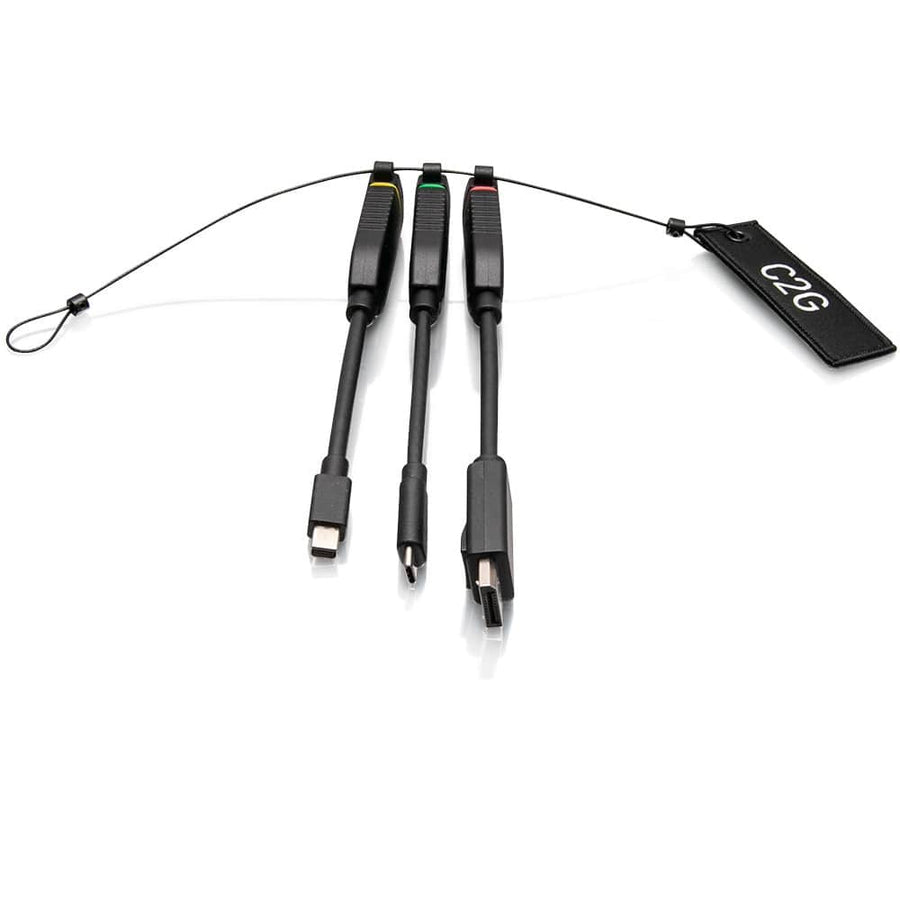

Universal 4K HDMI® Dongle Adapter Ring with Color Coded Mini DisplayPort™, DisplayPort, and USB-C®
4K HDMI dongle ring with DisplayPort Male, Mini DisplayPort Male, and USB-C Male connectors to (3) HDMI Female ports
The C2G30028 is a patented Universal 4K HDMI® Dongle Adapter Ring designed to streamline connectivity in conference rooms, huddle spaces, and lecture halls. This dongle-style adapter provides a flexible solution for thin or lightweight laptops, preventing the device from shifting or unleveling on a tabletop during connection. The C2G30028 features three HDMI Female ports and three specific male inputs: one DisplayPort Male, one Mini DisplayPort Male, and one USB-C Male. Each adapter is color-coded with a dedicated band for rapid identification in high-traffic environments. The integrated pull tab allows for easy retrieval, and the universal cable mount attaches directly to the in-room HDMI display cable. This mounting system ensures adapters remain within reach and slide out of the way when not in use, reducing cable strain and tabletop clutter. This specific configuration is part of the Build Your HDMI AV Adapter Ring Bundle series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Weight | 0.72 lbs (0.3 kg) |
| Adapter Style | Dongle |
| Antimicrobial Coated | No |
| Color | Black |
| Connector 1 | (3) HDMI Female |
| Connector 2 | (1) DisplayPort Male(1) Mini DisplayPort Male(1) USB-C Male |
| DisplayPort to HDMI Adapter | Yes |
| Lightning to HDMI Adapter | No |
All other specifications 11
| Micro HDMI to HDMI Adapter | No |
| Mini DisplayPort to HDMI Adapter | Yes |
| Mini HDMI to HDMI Adapter | No |
| Mounting Option | Universal Cable Mount |
| TAA Compliant | No |
| UPC | 757120300281 |
| USB-A to USB-C Adapter | No |
| USB-C to HDMI Adapter | Yes |
| VGA to HDMI Adapter | No |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Warranty | Lifetime |
Resources
Questions about this part
What video resolutions does the C2G30028 support?
This adapter ring supports up to 4K video resolution and is 100% functionally tested at 4K/30Hz using standard AV test equipment.
Will this work for my DisplayPort, Mini DisplayPort, and USB-C devices?
Yes, this SKU includes one DisplayPort Male, one Mini DisplayPort Male, and one USB-C Male connector to connect to (3) HDMI Female ports.
How do I keep the adapters from sliding down the HDMI cable?
The system uses a universal cable mount and an optional stopper that fits HDMI cables with diameters from 5mm to 10mm to prevent sliding.
What is included for mounting the adapter ring?
The package includes the tools required for mounting the adapters and the optional stopper to simplify the installation process.
What is the difference between this and other C2G adapter rings?
This C2G30028 is a specific configuration within the Build Your HDMI AV Adapter Ring Bundle series featuring DP, Mini DP, and USB-C male inputs.
