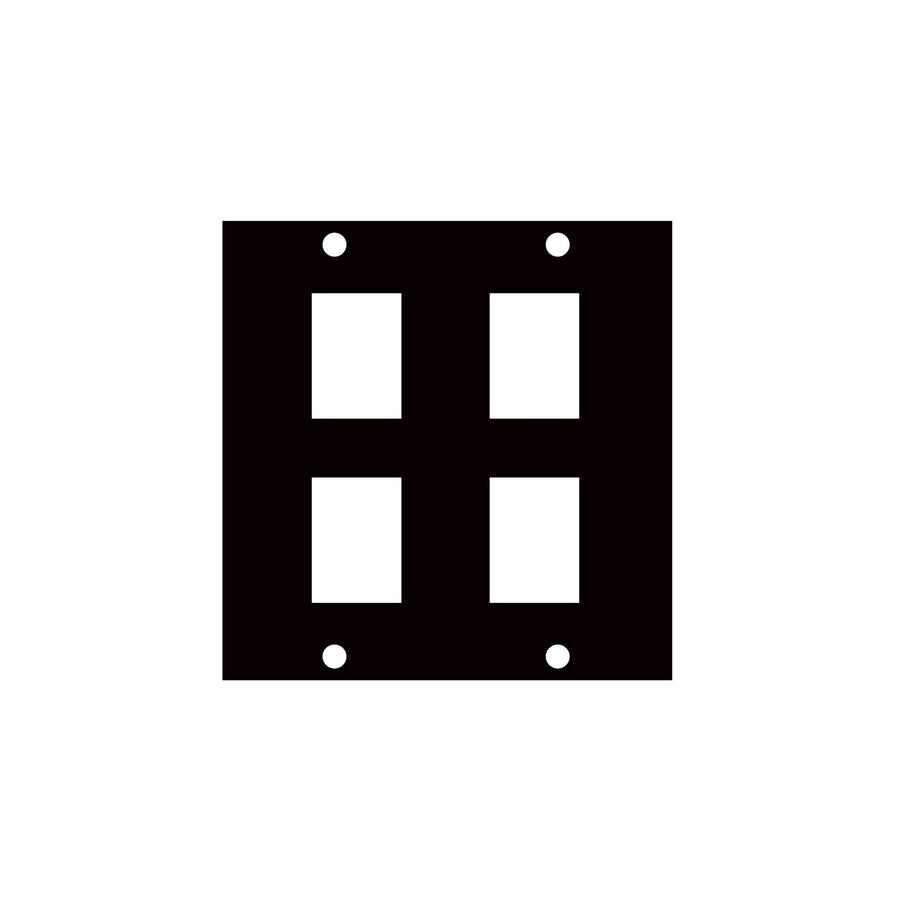

UCP Module with Four Keystone Punchouts
Four-punchout UCP module for custom connector installation in UCP series frames
The KEY-4 is a UCP Module with four keystone punchouts designed for customized connectivity in professional AV installations. This aluminum module features a brushed and anodized finish and is built to accommodate a wide variety of connectors, including RJ 11/12/45, RCA, BNC feed through, Banana, ST Fiber, and F or Coaxial. Because it is a punchout style, a keystone insert bezel is not required for connector installation. This module is designed to fit within several Middle Atlantic UCP Series components, including FK2, FK4, UCP-CH, UCP-CT, or UCP-SF base series frames, swinging frames, chassis, and cable trays. It provides a compact footprint of 3.39" x 3.49" with a depth of 0.13 in (0.3 cm). This product is TAA compliant.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Depth | 0.13 in (0.3 cm) |
| Height | 3.49 in (8.9 cm) |
| Shipping Weight | 0.2 lbs (0.1 kg) |
| Width | 3.39 in (8.6 cm) |
| Base Series | FK2, FK4, UCP-CH, UCP-CT, or UCP-SF |
| Finish | Brushed and Anodized |
| UCP Module Capacity | 4 |
| UPC | 656747094873 |
Questions about this part
Will the KEY-4 fit my existing Middle Atlantic UCP frame?
The KEY-4 is compatible with UCP Series frame kits, swinging frames, chassis, and cable trays, specifically within the FK2, FK4, UCP-CH, UCP-CT, or UCP-SF base series.
Do I need to purchase separate bezels for keystone inserts?
No, a keystone insert bezel is not required for connector installation when using this punchout module.
What types of connectors can I use with the KEY-4?
This module accommodates many connector types, such as RCA, RJ 11/12/45, F, BNC feed through, Banana, and ST Fiber.
What are the dimensions of the KEY-4 module?
The module measures 3.39" x 3.49" (8.6 x 8.9 cm) with a depth of 0.13 in (0.3 cm).
Is this product TAA compliant?
Yes, the KEY-4 is TAA compliant.
