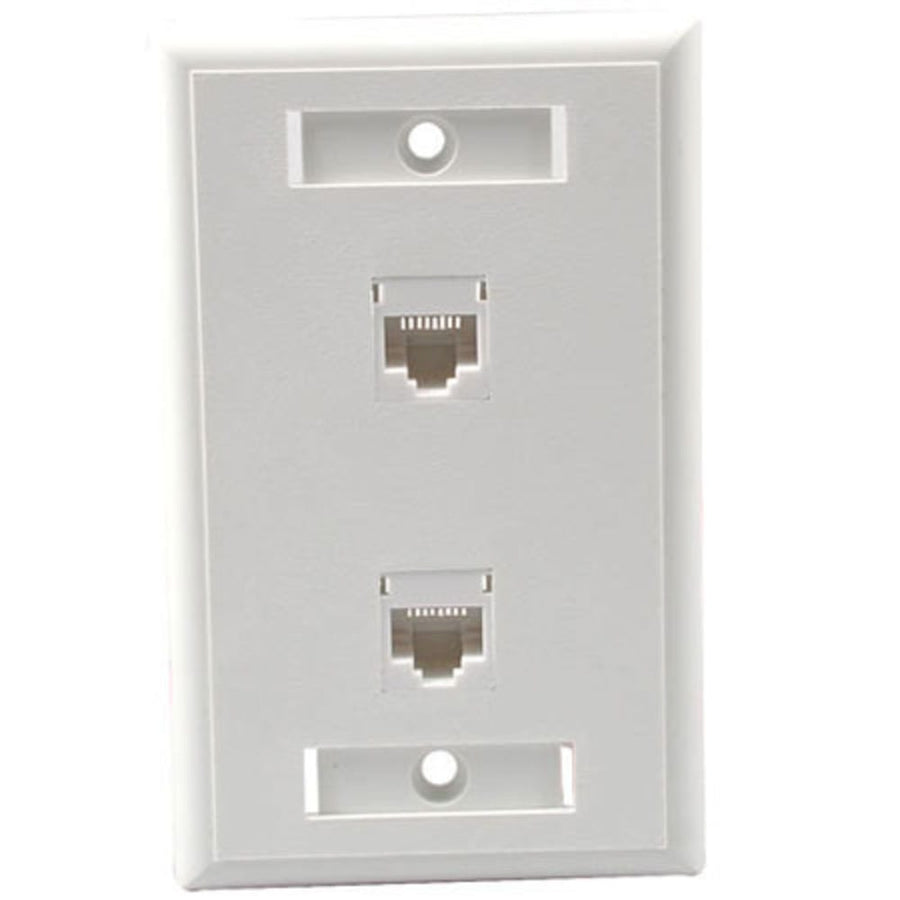

Two Port Cat5E RJ45 Configured Single Gang Wall Plate - White
White single gang wall plate with two RJ45 female ports and universal IDC connectors for Cat5E applications
The C2G CG27416 is a two-port Cat5E RJ45 configured single gang wall plate finished in white. Designed to meet the requirements of complex station installations, this plate can be mounted to any standard NEMA openings, electrical boxes, or surface mount boxes. The unit features a snap-on cover that allows for quick access or easy closure during the installation process. For organized system management, the plate includes write-on labels and port icons to help designate different stations or systems. The internal contacts are phosphor bronze-plated with 50 inch hard gold to ensure reliable connectivity. It utilizes 110/KRONE universal IDC connectors, which allow for vertical termination of 22-26 AWG UTP solid wire. This component is compatible with both T568A and T568B wiring standards and meets Category 5 enhanced requirements. This product is also EIA/TIA 568A certified and carries NDAA 889, RoHS, REACH, TSCA, and Prop 65 certifications.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Shipping Weight | 0.12 lbs (0.1 kg) |
| Color | White |
| Connector 1 | (2) RJ45 Female |
| UPC | 757120274162 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Warranty | Lifetime |
Questions about this part
Will the CG27416 fit standard electrical boxes?
Yes, this wall plate is compatible with NEMA standard openings as well as standard electrical or surface mount boxes.
What wire type is compatible with the IDC connectors?
The 110/KRONE universal IDC connectors support vertical termination of 22-26 AWG UTP solid wire.
Does this wall plate support T568A and T568B wiring?
Yes, the CG27416 is compatible with both T568A and T568B wiring configurations for Cat5E enhanced requirements.
How can I identify different systems on this wall plate?
The plate features integrated port icons and write-on labels that allow you to designate specific stations or different systems.
What certifications does the CG27416 hold?
This product is EIA/TIA 568A certified and is compliant with NDAA 889, RoHS, REACH, TSCA, and Prop 65.
