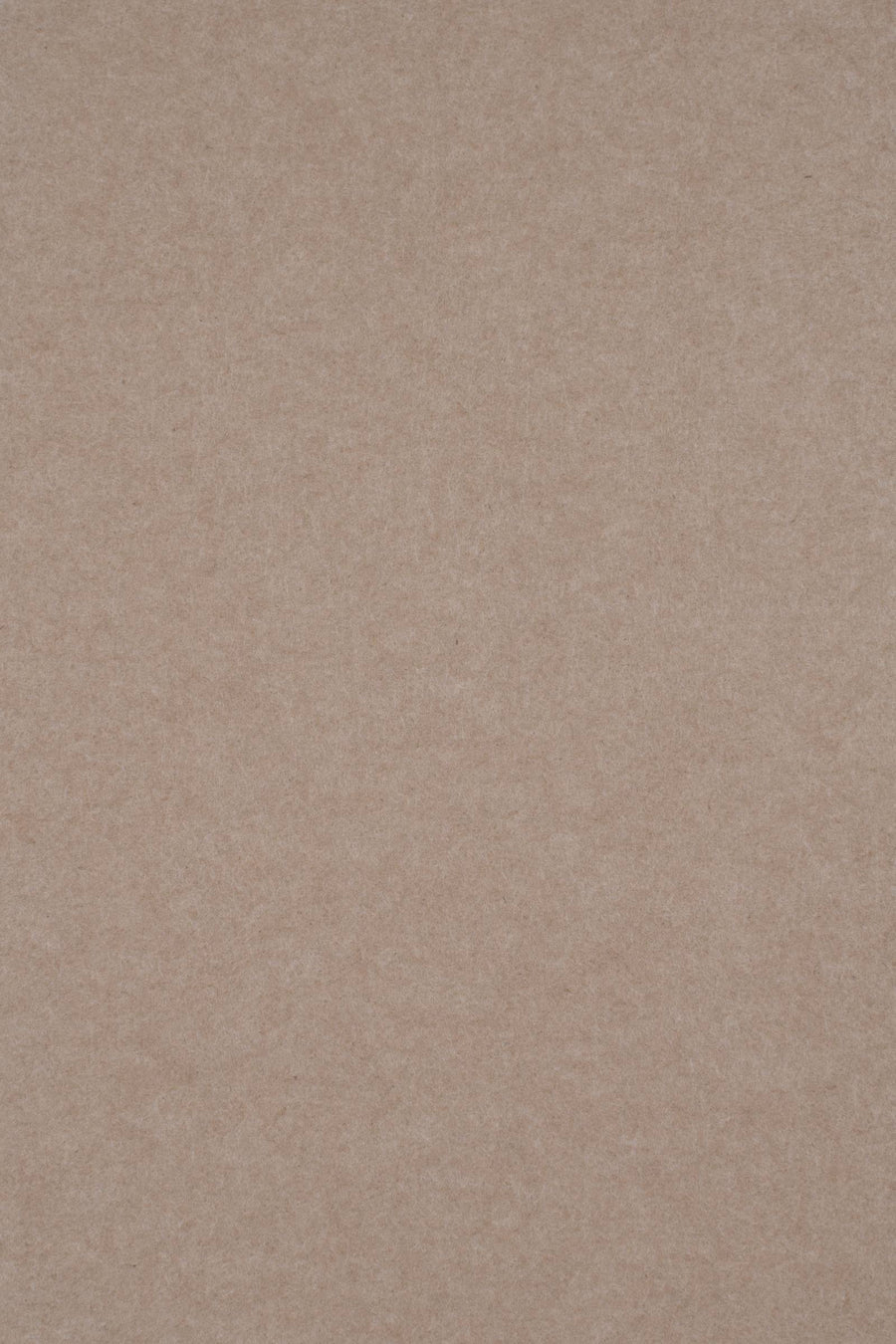

TruTile™ Designs Acoustic Wall Tile in Hazelwood, Wide Arc
2'x2' modular acoustic wall tile in Hazelwood with a Wide Arc pattern, made from 100% polyester PET felt
The Middle Atlantic AUTT22SQWACSMHZW is a TruTile™ Designs 2'x2' modular acoustic wall tile featuring the Wide Arc pattern in a Hazelwood finish. Constructed from 100% polyester PET felt with a 9mm depth, these tiles provide a functional solution for reducing noise and reverberation in high-traffic environments like conference rooms, classrooms, hospitality venues, and offices. The Wide Arc pattern is designed for versatility; installers can pair tiles to create vertical patterns or flip them to achieve a weave effect. For custom decorative configurations, these can be combined with TruTile™ Wide Rule patterns. This BAA and TAA compliant system is suitable for both horizontal and vertical wall installations. When managing transitions from a ceiling to a wall, these tiles offer a seamless aesthetic. Note that mounting hardware is not included; installation typically requires standard construction adhesives.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 9mm |
| Height | 2 ft |
| Product Weight | 1.8 lbs (0.8 kg) |
| Shipping Dimensions | 25_25 x 25_25 x 5in |
| Size | 2' x 2' (60.33 x 60.33 cm) |
| Width | 2 ft |
| Available Internationally | Yes |
| Color | Hazelwood |
All other specifications 7
| Flame Retardant | Yes |
| Manufacturer | Middle Atlantic |
| Material | PET Felt (100% Polyester) |
| Mounting Hardware Included | No |
| Pattern Design | Wide Arc |
| TAA Compliant | Yes |
| Certifications | BAA Compliant |
Resources
Questions about this part
Will the AUTT22SQWACSMHZW tile work with other TruTile™ products?
Yes, these Wide Arc tiles can be paired with other patterns like Wide Rule to create new decorative configurations or used with TruTile™ Shapes.
What do I need to buy to install these wall tiles?
This SKU does not include mounting hardware; you will need to use standard construction adhesives to secure the tiles to the wall surface.
Is there a ceiling version of these acoustic tiles?
Yes, the TruTile™ system is compatible with Nivo™ and Ori® Acoustic Ceiling Tiles for integrated ceiling-to-wall transitions.
Can these tiles be installed vertically on a wall?
Yes, the TruTile™ modular system is designed for both vertical and horizontal wall installations to accommodate different room layouts.
Where can I find installation and technical data for this tile?
Technical details are available in the TruTile™ Acoustic Wall Tile instruction sheet, data sheet, and acoustic data PDF documents.
