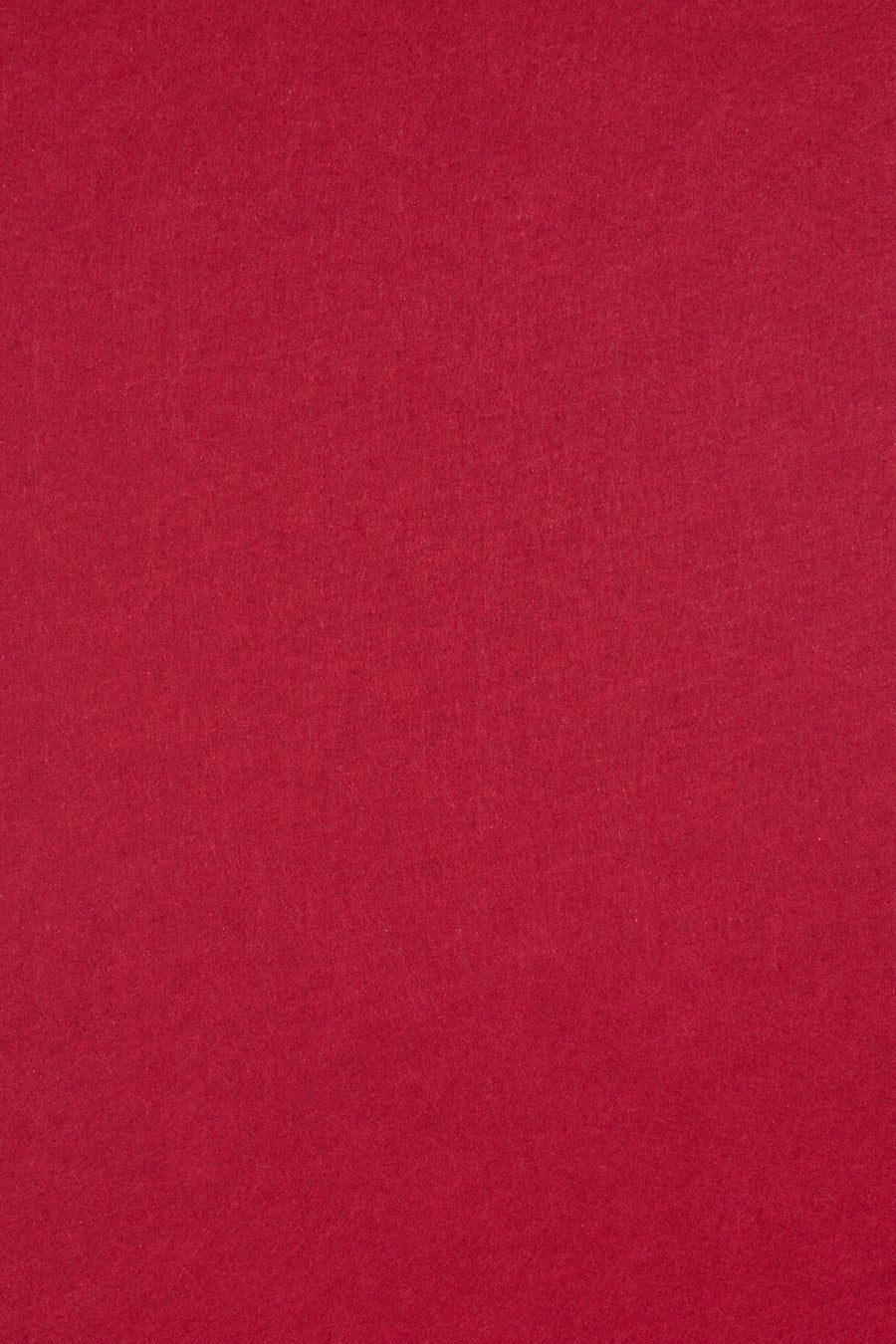

TruTile™ Designs Acoustic Wall Tile in Cherry Red, Double Arc
Cherry Red TruTile™ 2'x2' acoustic wall tile in a Double Arc pattern made from 100% polyester PET felt
The AUTT22SQDACSMCHR is a 2'x2' (60.33 x 60.33 cm) modular acoustic wall tile from the TruTile™ Designs series. This tile features a Double Arc pattern design in a Cherry Red finish, allowing installers to create various visual layouts such as infinity, organic, circle, or vertical patterns when paired with multiple units. Each 0.39-inch (9mm) thick tile is constructed from 100% polyester PET felt, providing a flame retardant material solution for reducing noise and reverberation in classrooms, conference rooms, offices, and hospitality venues. These tiles are designed for both vertical and horizontal wall installations to create seamless ceiling-to-wall transitions. For a complete installation, standard construction adhesives are required, as mounting hardware is not included with this SKU. This TAA and BAA compliant solution is suitable for large surface areas in commercial and educational environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 9mm |
| Height | 2 ft |
| Product Weight | 1.8 lbs (0.8 kg) |
| Shipping Dimensions | 25_25 x 25_25 x 5in |
| Size | 2' x 2' (60.33 x 60.33 cm) |
| Width | 2 ft |
| Available Internationally | Yes |
| Color | Cherry Red |
All other specifications 7
| Flame Retardant | Yes |
| Manufacturer | Middle Atlantic |
| Material | PET Felt (100% Polyester) |
| Mounting Hardware Included | No |
| Pattern Design | Double Arc |
| TAA Compliant | Yes |
| Certifications | BAA Compliant |
Resources
Questions about this part
What is required to install the AUTT22SQDACSMCHR?
Installation requires standard construction adhesives. Please note that mounting hardware is not included with these tiles.
Can I mix this tile with other TruTile™ products?
Yes, the Double Arc pattern is compatible with other TruTile™ patterns, including the TRUTILE-SHAPES acoustic wall tiles, to create custom configurations.
Is this tile suitable for ceiling installation?
While these are acoustic wall tiles, they are designed for seamless transitions between walls and ceilings and are compatible with Nivo™ or Ori® Acoustic Ceiling Tiles.
What material is the Cherry Red tile made of?
The tiles are manufactured from 100% polyester PET felt and are rated as flame retardant.
What kind of patterns can I make with the Double Arc design?
When paired with additional tiles, the Double Arc design can be used to form infinity, organic, circle, or vertical patterns.
