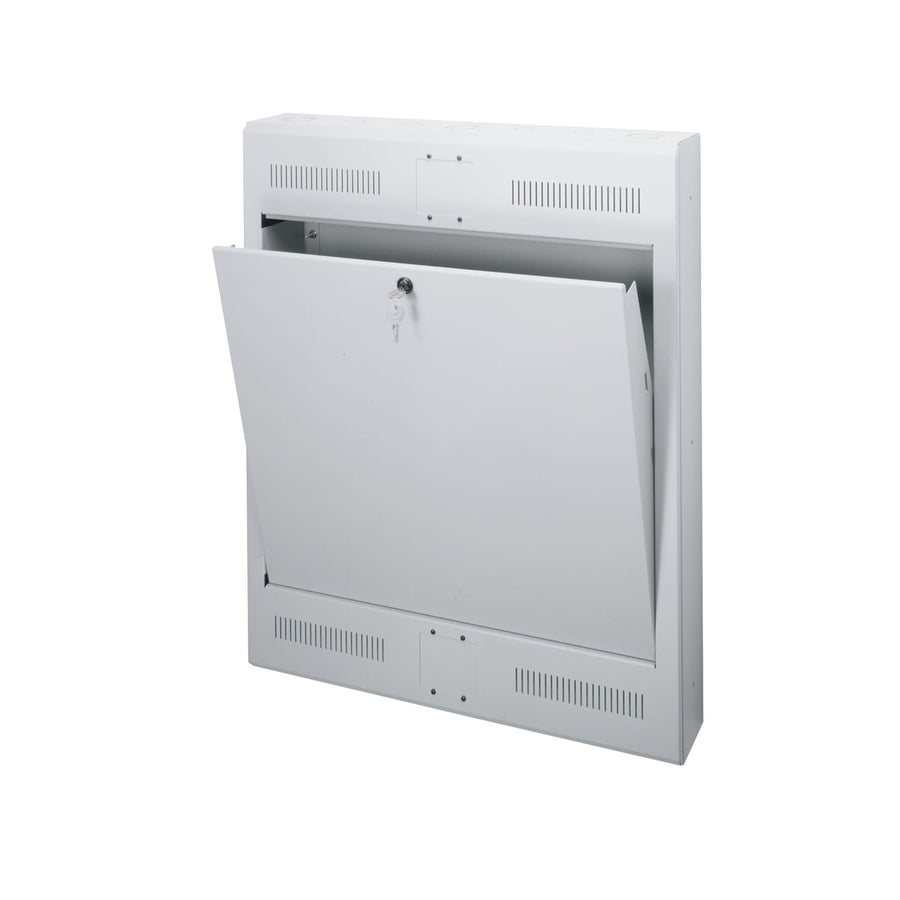

TOR Series Tilt Out Wall Rack - TOR-3-20SP
3 RU tilt-out wall rack for low-profile mounting, 100 lbs capacity, and TAA compliance
The Middle Atlantic TOR-3-20SP is a 3 RU tilt-out wall rack designed for secure, low-profile mounting in environments like schools, offices, hotels, and other public spaces. This rack is an ideal solution for managing small sound systems, paging equipment, or patching applications where space is limited. With a surface-mount style and a putty powder coat finish, it provides a clean aesthetic while maintaining a compact footprint. The unit features a 24.5" (62.2 cm) width and a usable depth of 20" (50.8 cm), offering significant internal space within its 6.13" (15.6 cm) total depth. For thermal management, the enclosure is vented to allow for effective passive cooling of installed components. This TAA-compliant rack is UL Listed and CSA Standard certified, supporting professional installations that require high-quality, tamper-resistant hardware. The 10-32 threaded rack rails are adjustable to accommodate various handles and knobs, and the enclosure includes Decora and UCP knockouts to facilitate the mounting of connectors and devices.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.13 in (15.6 cm) |
| Height | 30.2 in (76.7 cm) |
| Rack Units | 3 RU |
| Shipping Weight | 47.45 lbs (21.5 kg) |
| UL Load Capacity | 100 lbs (45.4 kg) |
| Usable Depth | 20 in (50.8 cm) |
| Usable Height | 5.25 in (13.3 cm) |
| Weight Capacity | 100 lbs (45.4 kg) |
All other specifications 9
| Width | 24.5 in (62.2 cm) |
| Application | In-Wall |
| Federal Ops Country of Origin | USA |
| Finish | Putty Powder Coat |
| Mounting Style | Surface |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747060755 |
| Certifications | CSA StandardTAAUL Listed |
Resources
You'll need these with it
Questions about this part
What can I mount in the TOR-3-20SP besides standard rack equipment?
You can mount non-rackmount equipment using the included clamp bars and utilize the Decora and UCP knockouts for various connectors or devices.
How much weight can this rack safely hold?
The TOR-3-20SP has a weight capacity of 100 lbs (45.4 kg) and is UL Listed for this load.
Will this work for my paging or sound system installation?
Yes, this tilt-out rack is specifically designed for paging, patching, and small sound system applications in non-secure areas.
What accessories are compatible with this tilt-out rack?
You can integrate the RPS 15A Remote Power Switch, the RPS-K 15A Remote Power Switch (Keylocked), or Decora mount options like the S-DEC and K-DEC.
Does this rack meet TAA compliance requirements?
Yes, the TOR-3-20SP is TAA compliant and features a USA country of origin for Federal Ops.
