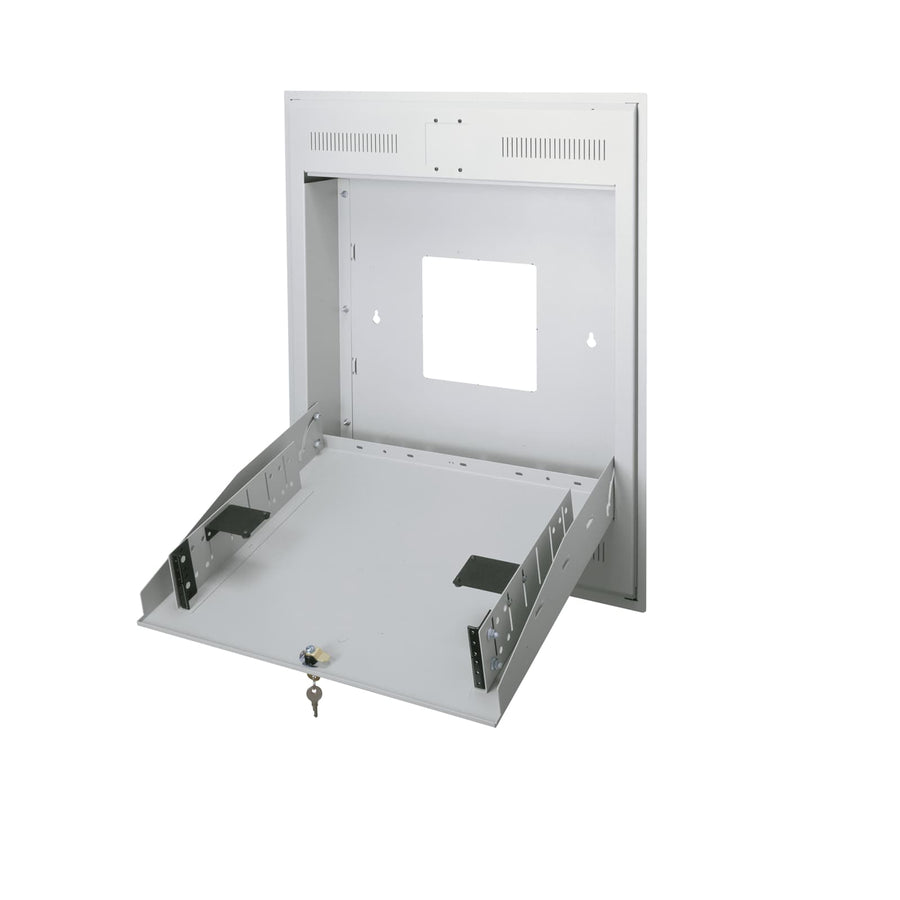

TOR Series Tilt Out Wall Rack - TOR-3-20RP
3 RU in-wall tilt out rack with 20 in (50.8 cm) usable depth and 100 lbs capacity
The TOR-3-20RP is a 3 RU tilt out wall rack designed for secure, low-profile mounting in schools, hotels, and offices. This in-wall model is engineered to mount between studs and sits flush with the wall surface, making it an ideal solution for small sound systems, patching, or paging applications. The unit features a 10-32 threaded rackrail that is adjustable to accommodate various handles and knobs. For equipment that does not feature standard rack ears, the rack includes clamp bars to secure non-rackmount gear. To assist with cabling and connectivity, the enclosure provides Decora and UCP knockouts. The design is vented to allow for effective passive thermal management of internal components. This TAA compliant and UL listed rack carries a weight capacity of 100 lbs (45.4 kg) and offers a usable depth of 20 in (50.8 cm) and a usable height of 5.25 in (13.3 cm). The Putty Powder Coat finish provides a professional appearance for non-secure areas.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.19 in (15.7 cm) |
| Height | 30.2 in (76.7 cm) |
| Rack Units | 3 RU |
| Shipping Weight | 50 lbs (22.7 kg) |
| UL Load Capacity | 100 lbs (45.4 kg) |
| Usable Depth | 20 in (50.8 cm) |
| Usable Height | 5.25 in (13.3 cm) |
| Weight Capacity | 100 lbs (45.4 kg) |
All other specifications 9
| Width | 24.5 in (62.2 cm) |
| Application | In-Wall |
| Federal Ops Country of Origin | USA |
| Finish | Putty Powder Coat |
| Mounting Style | Flush |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747060724 |
| Certifications | CSA StandardTAAUL Listed |
Resources
You'll need these with it
Questions about this part
Will the TOR-3-20RP fit inside my wall?
This is an in-wall application designed to mount between studs and sit flush with the wall surface, providing a low-profile installation.
Can I mount non-rackmount equipment in this rack?
Yes, the TOR-3-20RP includes clamp bars specifically for mounting equipment that does not have standard rack ears.
What is the usable space inside the TOR-3-20RP?
The rack provides a usable height of 5.25 in (13.3 cm) and a usable depth of 20 in (50.8 cm).
Is this rack compatible with remote power switches?
Yes, you can use it with accessories like the RPS 15A Remote Power Switch or the RPS-K keylocked version.
Which documents are available for submittals?
You can access the TOR Series Tilt Out Wall Rack 3 Part Specification (docx) or the A&E Specification Sheet (PDF) for detailed project submittals.
