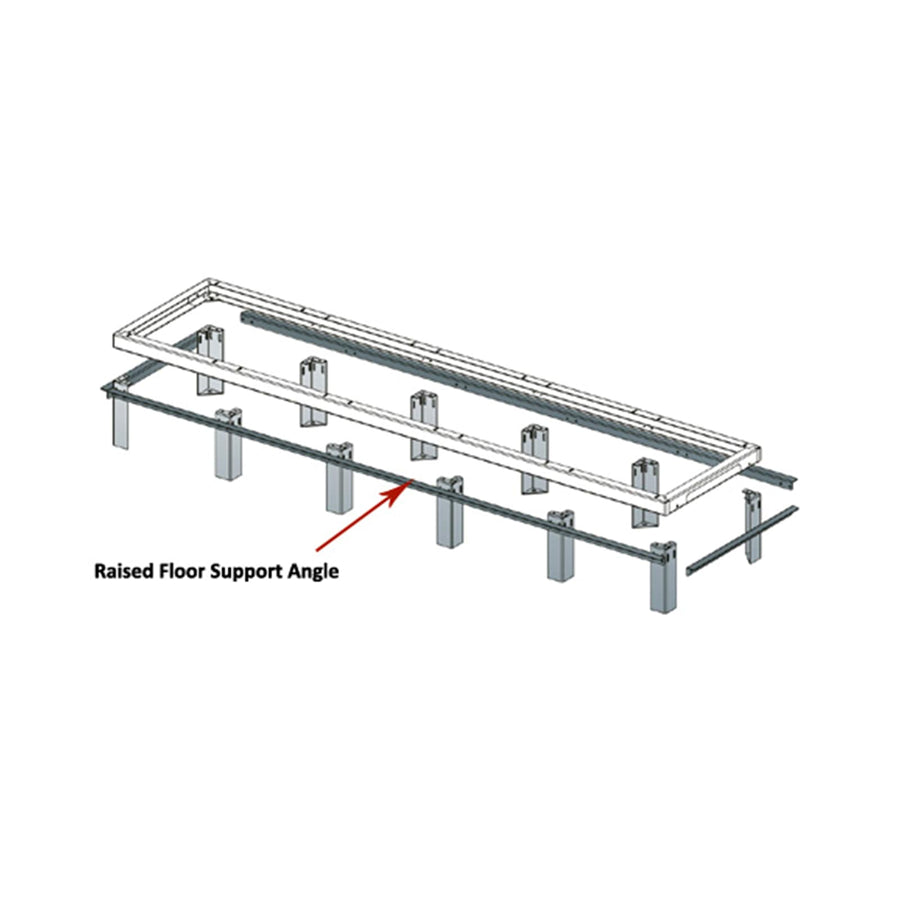

Support Angles, 3 Bay, 48 Inch Deep WMRK Racks
Three-bay steel support angles for 48 in deep WMRK series racks, featuring a 2500 lbs UL load capacity and seismic rating
The WMANGLE-3-48 is a set of sturdy steel support angles designed to support raised flooring around rack installations. These angles are specifically engineered for compatibility with 48 in (121.9 cm) deep WMRK series racks. This 3-bay configuration provides a stable perimeter for flooring in professional data center environments. Built to meet rigorous safety standards, these angles are Seismic Rated and have an ASCE 7-10 designation. The assembly has a UL Listed load capacity of 2500 lbs (1,134 kg), ensuring reliable structural integrity for heavy floor-supported equipment. This product is TAA compliant for projects requiring adherence to specific trade agreements. The assembly dimensions are 71.62 in (181.9 cm) wide by 48.31 in (122.7 cm) high.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 48 in (121.9 cm) |
| Height | 48.31 in (122.7 cm) |
| Package Count | 1 |
| Shipping Weight | 142 lbs (64.4 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Width | 71.62 in (181.9 cm) |
| Base Series | WMRK |
| Gangable | No |
All other specifications 5
| Number of Bays | 3 |
| Seismic Rated | Yes |
| UPC | 656747100116 |
| ASCE Number | 7-10 |
| Certifications | ASCEUL Listed |
Resources
Questions about this part
What racks is the WMANGLE-3-48 compatible with?
These support angles are designed for use with 48 in (121.9 cm) deep WMRK series racks.
What is the load capacity of these support angles?
The WMANGLE-3-48 is UL Listed with a load capacity of 2500 lbs (1,134 kg).
Is the WMANGLE-3-48 seismic rated?
Yes, these angles are Seismic Rated and meet ASCE 7-10 standards.
Is this product TAA compliant?
Yes, the WMANGLE-3-48 is TAA compliant.
How many bays does this support angle assembly cover?
This specific SKU is a 3-bay configuration.
