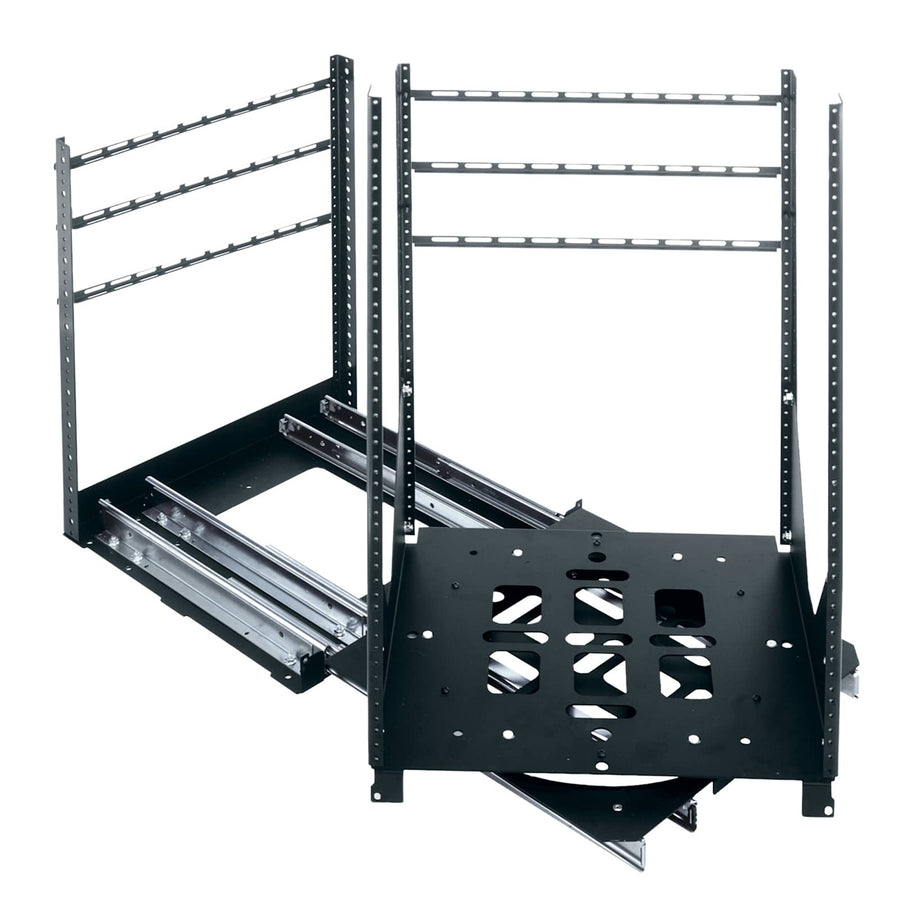

SRSR Series Slide Out Rotating Rail System Rack - SRSR-X-16
16 RU slide-out rotating rack system for in-cabinet or flush in-wall installations with a 200 lbs capacity
The SRSR-X-16 is a 16 RU slide-out rotating rack system designed for easy rear access to equipment connections within millwork, cabinets, and flush in-wall installations. This in-cabinet rack type features a self-centering mounting base that simplifies the alignment process within a cabinet opening during installation. Once installed, the equipment bay can be rotated 90º in either direction, with secure locking available at 0º, 60º, and 90º to facilitate easier installation and servicing of rear-facing connections. The system is built with a removable rack frame to allow for efficient in-shop integration before the unit is moved to the final job site. To assist with cable management, the unit includes rear cable support that works alongside the rear rackrail. This 16 RU system features standard front and rear 10-32 threaded rackrails with marked spaces and supports a weight capacity of 200 lbs (90.7 kg). This TAA compliant unit is manufactured in the USA.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 23.14 in (58.8 cm) |
| Height | 31 in (78.7 cm) |
| Rack Units | 16 RU |
| Shipping Weight | 41 lbs (18.6 kg) |
| Usable Depth | 21.25 in (54 cm) |
| Usable Height | 28 in (71.1 cm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 19.13 in (48.6 cm) |
All other specifications 8
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Flat Powder Coat |
| Rack Rail Type | 10-32 |
| Rack Type | In-Cabinet |
| TAA Compliant | Yes |
| UPC | 656747047367 |
| Certifications | TAA |
Resources
Questions about this part
What is the usable depth and height of the SRSR-X-16?
The SRSR-X-16 provides a usable depth of 21.25 in (54 cm) and a usable height of 28 in (71.1 cm).
How do I access the rear of my equipment in this rack?
The rotating equipment bay allows for easy rear access by rotating the system 90º in either direction, with secure locking positions at 0º, 60º, and 90º.
Is the SRSR-X-16 TAA compliant?
Yes, this model is TAA compliant and is manufactured in the USA.
What weight capacity can this 16 RU rack support?
The SRSR-X-16 has a maximum weight capacity of 200 lbs (90.7 kg).
Which document is needed for submittals?
For technical submittals, you can use the SRSR Series Rotating Sliding Rail System 3 Part Specification (docx) or the provided CAD Technical Specification Drawings.
