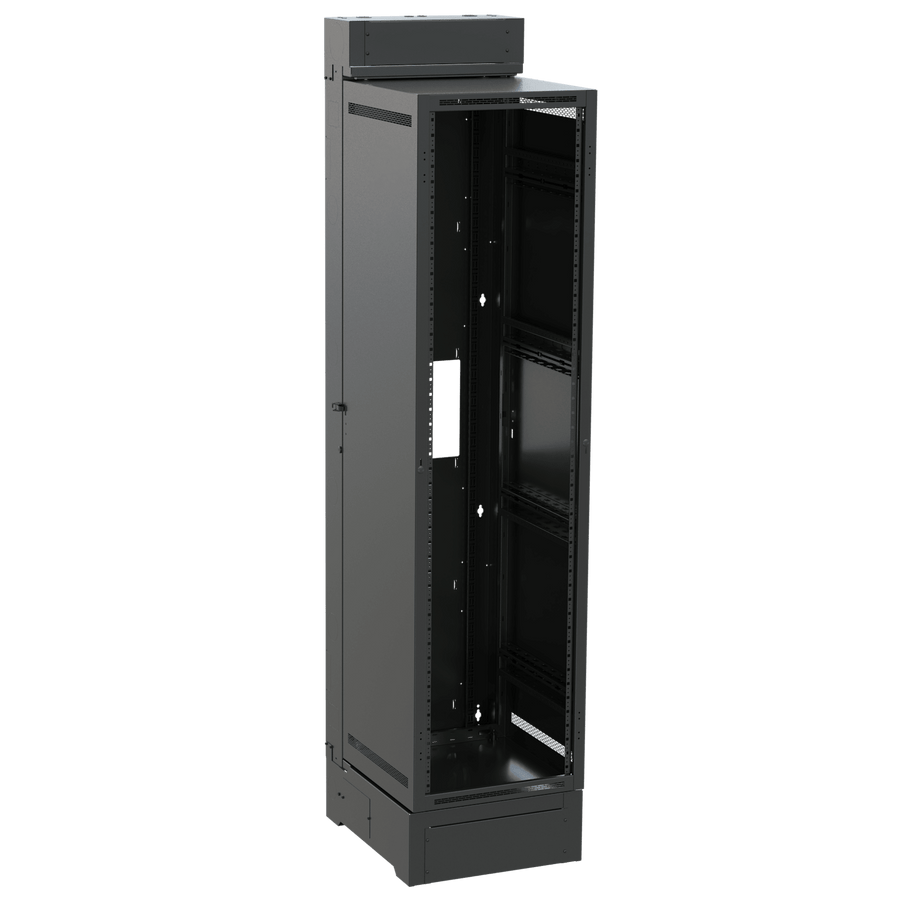

SR Series Large Pivoting Rack - SR-46-28
46 RU pivoting wall mount rack with 28" overall depth and 500 lbs UL load capacity
The Middle Atlantic SR-46-28 is a 46 RU large pivoting wall mount rack designed to solve space constraints in tight installation environments. This rack features an innovative design that allows it to pivot 90° on a floor base, providing immediate access to rear equipment connections without requiring extra aisle space behind the unit. This is a critical feature for heavy installations where cabling must be managed or serviced frequently. The SR-46-28 is the industry's first seismic rated wall rack series, providing essential tip and vibration resistance. It is UL listed with a 500 lbs (226.8 kg) load capacity and a seismic load capacity of 335 lbs (152 kg). This TAA compliant, USA-made rack is Forward and Lever Lock™ compatible, allowing for faster installation using tool-free accessories and providing access to the Forward rackrail for specialized cable management and vent panels.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 28 in (71.1 cm) |
| Height | 101.75 in (258.4 cm) |
| Rack Units | 46 RU |
| Shipping Weight | 266 lbs (120.7 kg) |
| UL Load Capacity | 500 lbs (226.8 kg) |
| Usable Depth | 26 in (66 cm) |
| Usable Height | 80.5 in (204.5 cm) |
| Width | 23.5 in (59.7 cm) |
All other specifications 8
| Federal Ops Country of Origin | USA |
| Forward Compatible | Yes |
| Rack Rail Type | Forward Rackrail |
| Seismic Rated | Yes |
| TAA Compliant | Yes |
| UPC | 656747069222 |
| Certifications | ASCECSA StandardTAAUL Listed |
| Seismic Load Capacity | 335 lbs (152 kg) |
Resources
Questions about this part
Will the SR-46-28 fit my equipment in a tight space?
Yes, the SR-46-28 pivots 90° on its floor base, allowing installers to access rear connections without needing an aisle behind the rack.
What is the total weight capacity of this rack?
The rack has a 500 lbs (226.8 kg) UL load capacity and a seismic load capacity of 335 lbs (152 kg).
Do I need to purchase rear rackrails separately?
Yes, the rear rackrail is optional and must be purchased separately to complete the installation.
Is this rack suitable for seismic-prone areas?
Yes, this is part of the industry's first seismic rated wall rack series, designed for tip and vibration resistance.
