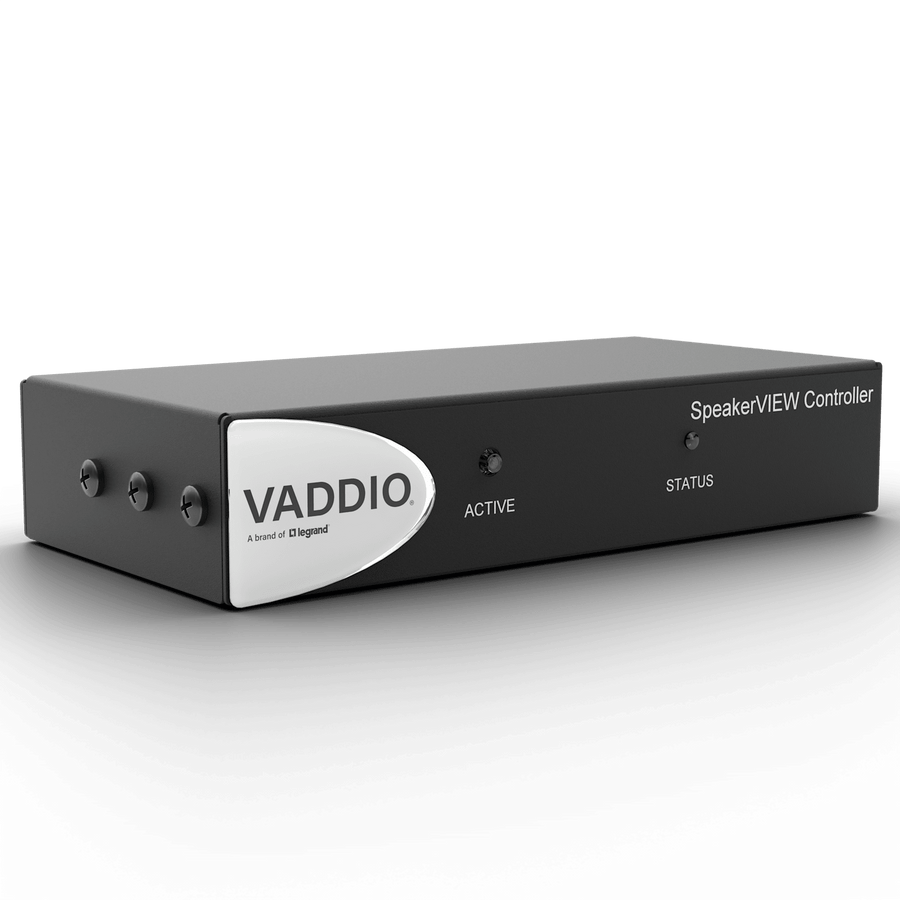

SpeakerVIEW Controller
PoE-powered presenter tracking hub that automates Vaddio PTZ camera framing based on directional audio from ceiling microphones
The Vaddio SpeakerVIEW Controller (999-73000-000) acts as the intelligence hub for automated presenter tracking in professional AV environments. This compact, rack-friendly device manages the relationship between microphone arrays and Vaddio PTZ cameras, using directional audio to identify active speakers and direct camera movement in real time. Designed for larger rooms, the controller supports location data from up to 8 ceiling microphone arrays, including certified partners such as the Shure MXA920, Shure MXA910, and Sennheiser TeamConnect Ceiling Medium (TCCM). Management is streamlined through a built-in web browser-based user interface or the Vaddio Deployment Tool. The device is powered via PoE Gigabit Ethernet, eliminating the need for a separate power supply. For advanced system integration, the controller supports remote control via SSH (Secure Shell), Telnet, or a front button. This automation solution ensures smooth transitions between speakers and allows for speaker priority control to keep the focus on a primary presenter or meeting chair.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 4.25 in (10.8 cm) |
| Height | 1.75 in (4.4 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Shipping Dimensions | 15.9" x 9.1" x 2.1" (403.86 x 231.14 x 53.34 mm) |
| Shipping Weight | 3.2 lbs (1.5 kg) |
| Width | 8.4 in (21.3 cm) |
| 3rd Party Control | SSH (Secure Shell)Telnet |
| Browser-based User Interface for Remote Control | Built-in |
All other specifications 9
| Color | Black |
| Control Method | Front ButtonIP Control (SSH/Telnet)Web UI |
| Control Type | Presenter Tracking |
| Input Ports | PoE Gigabit Ethernet |
| Power Type | PoE |
| TAA Compliant | Yes |
| UPC | 840077509163 |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
Questions about this part
Which microphones are compatible with the SpeakerVIEW Controller?
The controller is designed to work with certified microphone partners including the Shure MXA920, Shure MXA910, and Sennheiser TeamConnect Ceiling Medium (TCCM) arrays.
How many microphone arrays can this controller support?
The SpeakerVIEW Controller can process location data from up to 8 ceiling microphone arrays to ensure precise speaker tracking in large spaces.
Does this device require a separate power supply?
No, the unit is powered via PoE (Power over Ethernet) through the Gigabit Ethernet input port.
What are the remote management options for the SpeakerVIEW Controller?
You can manage the device using the built-in Web UI, the Vaddio Deployment Tool, or via SSH (Secure Shell) and Telnet for 3rd party control.
Which document should I use to verify my specific camera and microphone compatibility?
You should refer to the SpeakerVIEW Supported Devices (PDF) for the most current list of compatible devices and required firmware versions.
