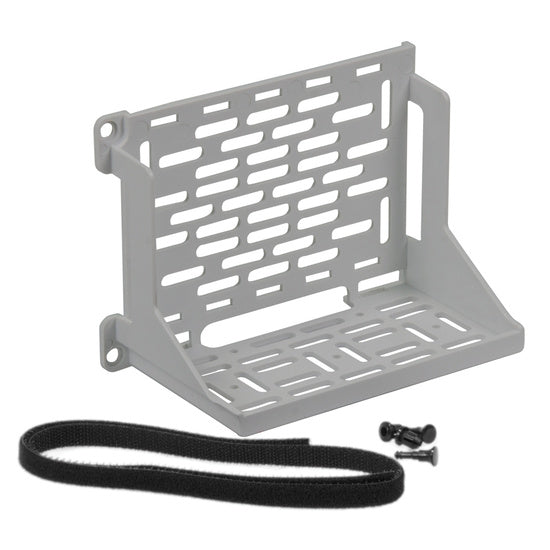

Shelf Mounting Bracket
Vented plastic shelf for Legrand Structured Wiring Enclosures, supports up to 10 lbs and maintains Wi-Fi transparency
The AC1060 is a Shelf Mounting Bracket designed to increase installation flexibility within Legrand Structured Wiring Enclosures. This high impact injection molded plastic shelf provides a vented, stable surface intended to rest and secure 3rd party devices such as modem routers, connected hubs, or ISPs. Because it is constructed from plastic, this bracket maintains Wi-Fi transparency for all wireless connected home equipment housed in the enclosure. It features a 3.5 in (8.9 cm) rack depth and a unique hole pattern that allows for multiple options to secure down devices. This bracket can be installed in either a standard or an inverted orientation when used specifically with plastic enclosures. The AC1060 is rated to support up to 10 lbs of weight and is compatible with both Legrand plastic and metal enclosures.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Package Count | 1 |
| Rack Depth | 3.5 in (8.9 cm) |
| Color | White |
| Finish | Matte |
| Included | 2 Ft Hook and Loop Strap2 Sets of Plunger/Grommets |
| Material | High Impact Injection Molded Plastic |
| Warranty | 1-Year Limited Warranty |
Resources
You'll need these with it
Shelf Mounting Bracket with Luxul Five Port Switch
AC1060L5$64.99
5 Inch Mounting Plate Combo Kit
AC1050EMK$29.99

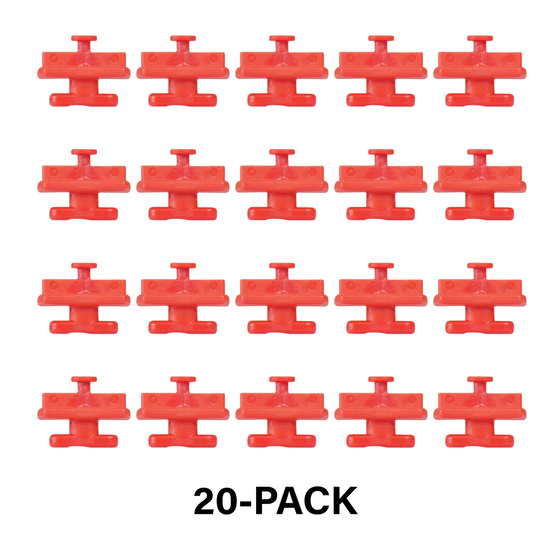

Forward Keyhole Post Clips
AC1051KH20$29.99
Forward Small Device Mounting Clamps
AC1051RC20$54.99
5 Inch Mounting Plate with 1.5 Inch Elevation
AC1050$24.99
42 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP4250NA$189.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
Plastic Enclosure Cable Channels - 2 Pack
AC1052CC2$5.49

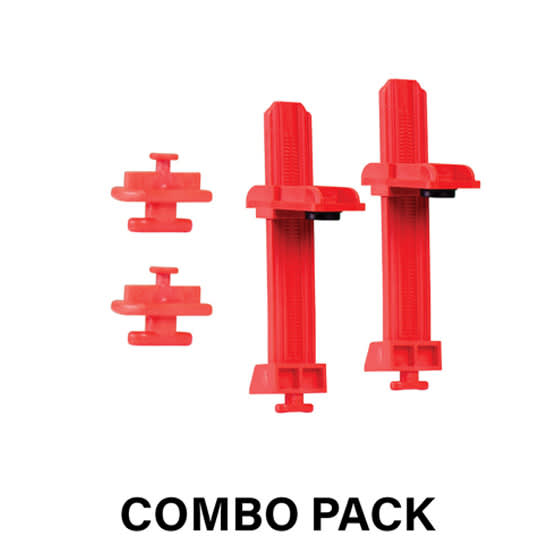

Forward Combo Pack - Small Device Mounting Clamps and Keyhole Post Clips
AC1051RCKH4$8.99
Universal Mounting Plate
AC1040F$32.99
Questions about this part
Will the AC1060 work with metal Legrand enclosures?
Yes, the AC1060 is compatible with both Legrand plastic and metal enclosures.
Can I mount the AC1060 in an inverted position?
You can install the shelf in an inverted orientation when using plastic enclosures.
How is a device secured to this shelf?
The shelf includes a 2 ft hook and loop strap and 2 sets of plunger/grommets to provide extra support and secure devices.
What is the weight capacity of the AC1060 bracket?
The shelf is rated to support up to 10 lbs.
Is the AC1060 compatible with the ENP3050NA enclosure?
The AC1060 is listed as compatible with several Legrand enclosure series, including the 30 inch plastic enclosure with trim ring and hinged door, model ENP3050NA.
