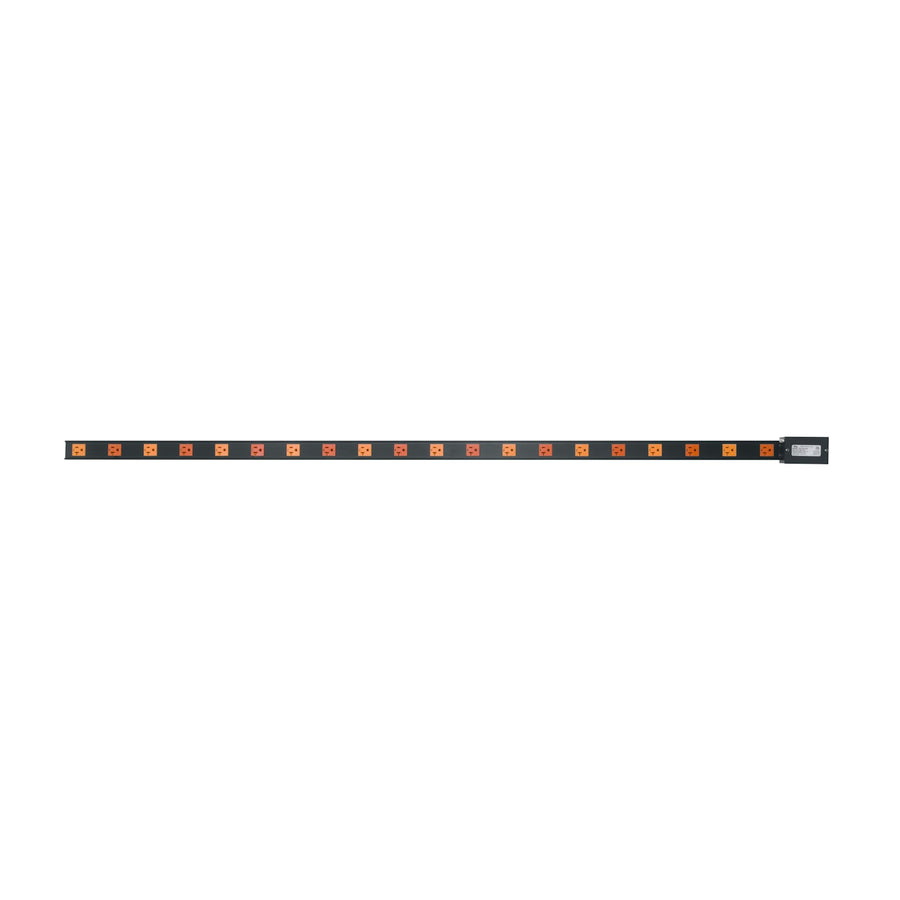

Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 16 Outlet, 20A Hardwired
Dual circuit vertical power strip with 16 outlets, 20A hardwired J-Box termination, and a 2.1 inch depth profile
The PDT-2X820 is a Select Series low profile vertical power strip designed to provide high outlet density without consuming valuable rack space. This 60 in (152.4 cm) unit features a thin chassis with a 2.58 in (6.6 cm) width and a 2.1 in (5.3 cm) depth, allowing it to be mounted unobtrusively in the back of a rack. It is configured with 16 outlets across two separate circuits, making it capable of handling the power demands of high-performance AV equipment. The unit is hard-wired via a J-Box plug type for secure electrical termination. For installation, this PDU includes the necessary mounting hardware to snap it directly onto Middle Atlantic rack rail brackets. This series is compatible with every style of Middle Atlantic rack rail bracket, ensuring it can be integrated into existing rack infrastructure easily.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 20 Amp |
| Depth | 2.1 in (5.3 cm) |
| Height | 60 in (152.4 cm) |
| Shipping Weight | 4.9 lbs (2.2 kg) |
| Volts AC | 120 VAC |
| Width | 2.58 in (6.6 cm) |
| Cable Type | Hard-Wired |
| Finish | Black Anodized |
All other specifications 6
| Local Meter | No |
| Number of Circuits | 2 |
| Outlet Count | 16 |
| Plug Type | J-Box |
| UPC | 656747191770 |
| Certifications | ETL Listed |
Resources
Questions about this part
How is this power strip connected to the building power?
The PDT-2X820 uses a J-Box plug type for hard-wired termination, allowing for a secure electrical connection to your facility's power supply.
Will this fit in my Middle Atlantic rack?
Yes, the PDT series is designed to mount to every style of Middle Atlantic rack rail bracket, making it highly versatile for various rack configurations.
How do I mount the PDU once it arrives?
The unit comes with mounting hardware included, allowing you to snap the PDU into place on your rack rails quickly; these clips are also reusable.
What is the depth profile of this vertical strip?
This model has a low profile depth of 2.1 in (5.3 cm), which helps minimize the footprint inside your rack.
Does this power strip support dual circuits?
Yes, the PDT-2X820 is a dual circuit model with 16 total outlets, providing more power distribution capability for demanding equipment.
