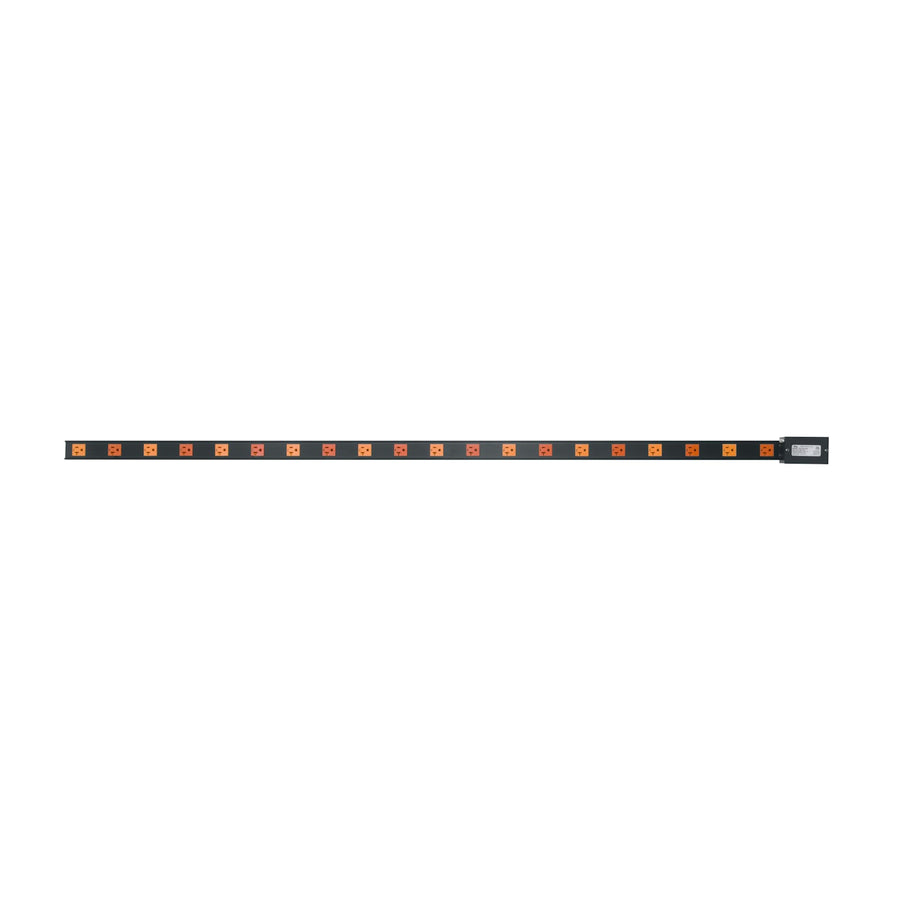

Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 16 Outlet, 15A Hardwired
16-outlet vertical power strip with dual circuits and a low-profile chassis for rack mounting
The PDT-2X815 is a Select Series PDT Low Profile Vertical Power Strip designed to maximize outlet density without consuming valuable rack space. Featuring a thin 2.58 in (6.6 cm) wide chassis, this unit mounts unobtrusively in the back of a rack, placing power sources directly adjacent to the equipment. This model includes two circuits to handle the high power demands of complex AV systems. It features a 60 in (152.4 cm) height and provides 16 outlets for equipment power. The unit is designed for hard-wired installation via a J-Box termination for power cables. This ETL Listed power distribution unit is finished in Black Anodized and is compatible with all styles of Middle Atlantic rack rail brackets.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 15 Amp |
| Depth | 2.1 in (5.3 cm) |
| Height | 60 in (152.4 cm) |
| Volts AC | 120 VAC |
| Width | 2.58 in (6.6 cm) |
| Cable Type | Hard-Wired |
| Finish | Black Anodized |
| Local Meter | No |
All other specifications 5
| Number of Circuits | 2 |
| Outlet Count | 16 |
| Plug Type | J-Box |
| UPC | 656747191763 |
| Certifications | ETL Listed |
Resources
Questions about this part
How do I install the PDT-2X815 in my rack?
Installation is completed using the included mounting hardware that allows the PDU to snap onto the shelf using a reusable clip system.
What kind of power connection does the PDT-2X815 use?
The PDT-2X815 is a hard-wired unit that utilizes a J-Box termination for your power cables.
Will this power strip fit in my existing Middle Atlantic rack?
Yes, these PDT series strips are designed to mount to every style of Middle Atlantic rack rail brackets.
What are the electrical specifications for this model?
This 16-outlet strip operates at 120 VAC with a 15 Amp rating and features two separate circuits.
Which document should I use for submittals or installation?
You can refer to the PDT Series Instruction Sheet for installation or the PDT Series Thin Power Distribution A&E Specification Sheet for technical data.
