Seismic Brackets for ERK Racks
Seismic floor anchor brackets for ERK Series enclosures, supporting Zone 4 and Seismic Design Category D requirements

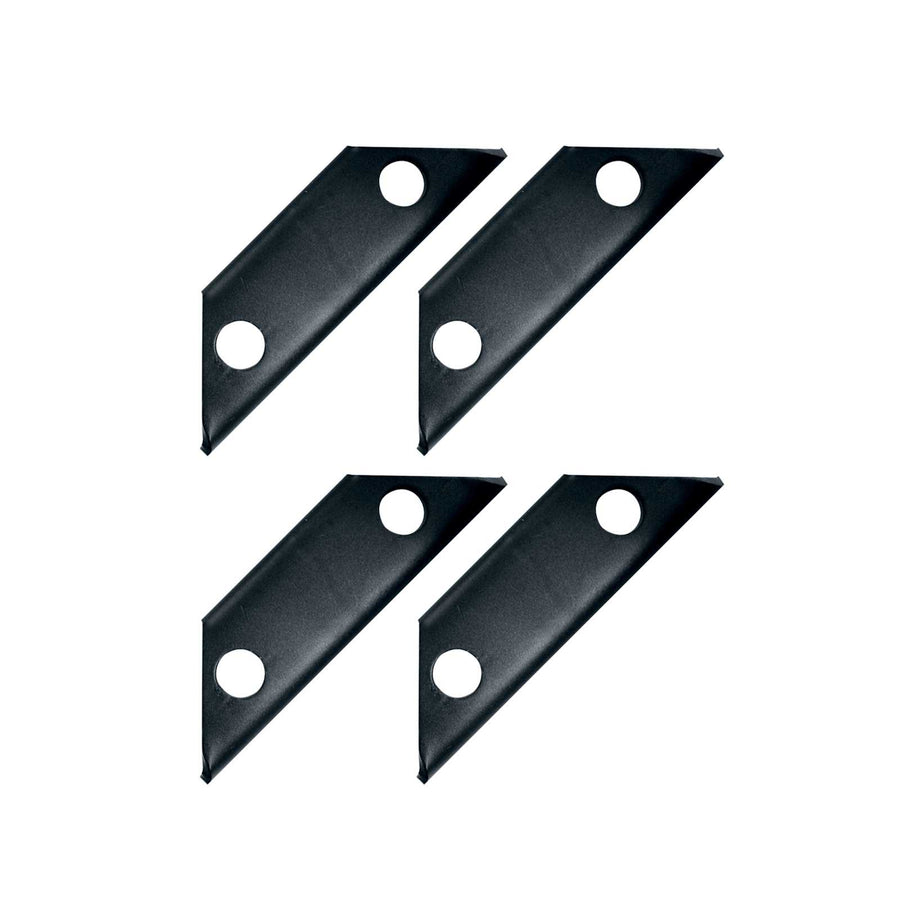

The ERK-Z4 is a set of four seismic floor anchor brackets designed to secure Middle Atlantic ERK Series enclosures. When installed correctly, these brackets allow a Seismic Certified ERK Series enclosure to achieve an Ip rating of 1.5 and meet requirements for Seismic Design Category (SDC) "D" and Seismic Use Group III Upper Floor Essential Equipment rating. This kit is used to reinforce mission-critical applications by bringing the enclosure into compliance with applicable Zone 4 seismic standards. One set of these brackets is required for each rack to ensure a proper seismic-certified installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Weight | 1.9 lbs (0.9 kg) |
| Width | 22 in (55.9 cm) |
| Base Series | ERK |
| UPC | 656747006852 |
Resources
Questions about this part
Will these brackets work with any ERK rack?
These brackets are specifically designed for the ERK Series enclosure to support a seismic-certified installation.
How many ERK-Z4 kits do I need for a single rack?
You will need one set of ERK-Z4 brackets per rack to achieve the required seismic rating.
What seismic rating do these brackets provide?
When properly installed, they allow the enclosure to meet Seismic Design Category (SDC) "D" and Seismic Use Group III ratings.
Which document should I use for the submittal?
You can refer to the ERK Series Enclosure A&E Specification Sheet or the Seismic Bracket Instruction Sheet for technical details.
Is this product TAA compliant?
Yes, the ERK-Z4 is TAA compliant.
