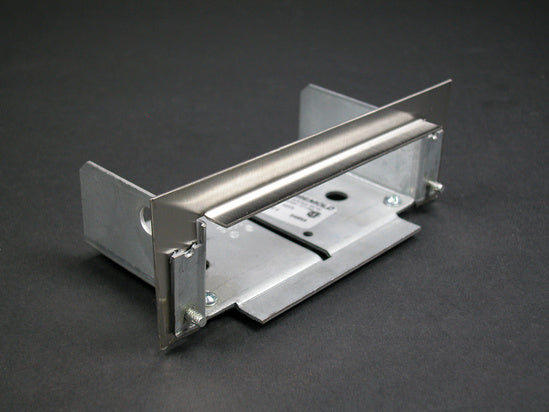

S4086A Panel Connector Fitting
Panel connector fitting for S4000 Series Raceway used to connect raceways to surface type panel boxes
The S4086A is a Panel Connector Fitting designed to bridge S4000 Series Raceway with surface type panel boxes. This component facilitates the transition of raceways into existing panel enclosures. To ensure a clean installation, a 4 3/4" x 1 3/4" (121 x 44 mm) hole must be cut into the panel box. The included C-shaped flange is designed to wrap around the raceway, which helps to cover any irregularities caused by cutting into the box. This fitting accommodates the maximum wire capacity of the S4000 Series Raceway system.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
| Color | Silver |
Resources
Questions about this part
What size hole is required for the S4086A installation?
You must cut a 4 3/4" x 1 3/4" (121 x 44 mm) hole in the panel box.
Is the S4086A TAA compliant?
Yes, this product is TAA Compliant and meets RoHS material restrictions.
Will this fitting work with S4000 Series Raceway?
Yes, it is designed to connect S4000 Series Raceway to surface type panel boxes while accommodating the series' maximum wire capacity.
How do I hide rough edges after cutting the panel box?
The S4086A features a separate C-shaped flange that fits around the raceway to cover any irregularities from cutting into the box.
