RJ45 to DB25 Male Modular Adapter - Gray
Modular RJ45 female to DB25 male adapter for RS-232 and client-server applications

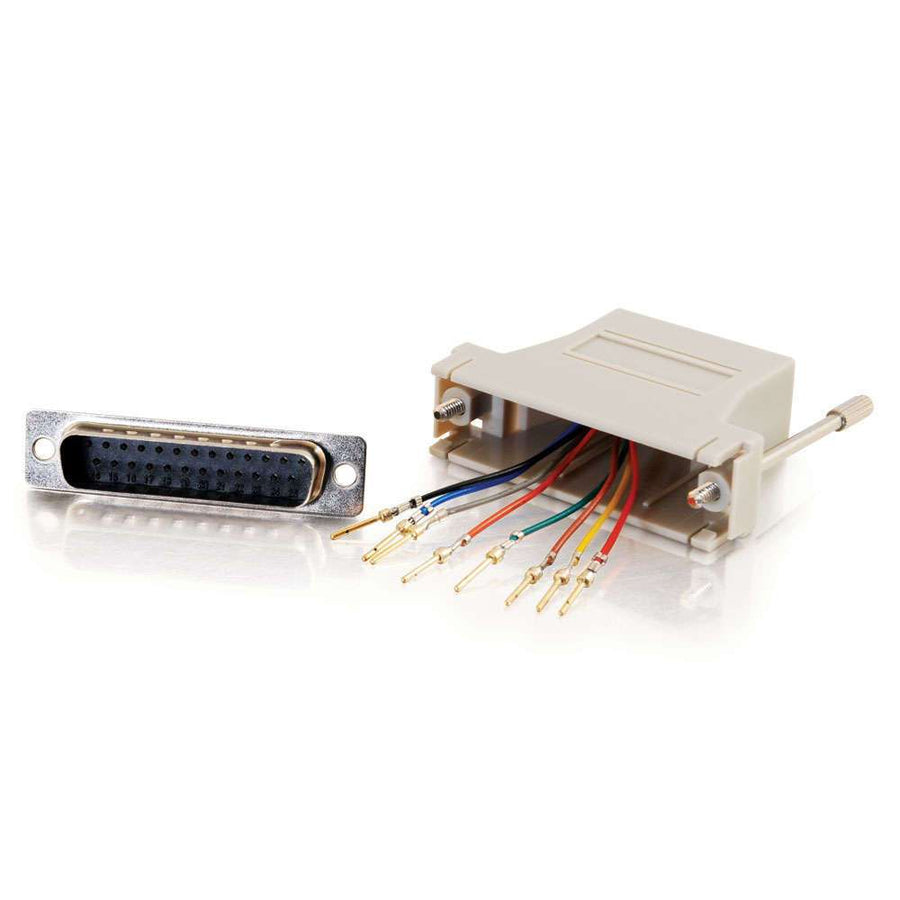

The CG02934 is a modular adapter designed to facilitate cost-effective connections for client-server applications. By utilizing inexpensive silver satin or flat oval twisted pair wire, network planners can connect desktop dumb terminals back to a central patch panel or directly to a MUX via RS-232. This adapter features one RJ-45 female connector and one DB25 male connector. This specific SKU arrives as a modular component that requires assembly to become functional. Because assembly methods vary depending on your specific application, users should contact the manufacturer if they require the adapter to be pre-assembled before shipping. This gray adapter is compliant with RoHS, REACH, TSCA, and Prop 65 standards, and it is also listed as NDAA 889 compliant.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Shipping Weight | 0.06 lbs (0 kg) |
| Color | Gray |
| Connector 1 | (1) RJ-45 Female(1) RJ-45 Female |
| Connector 2 | (1) DB25 Male(1) DB25 Male |
| Product Type | Adapter |
| TAA Compliant | No |
| UPC | 757120029342 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Warranty | Lifetime |
Questions about this part
Is the CG02934 ready to use out of the box?
No, this modular adapter requires assembly to become functional. Because there is no universal assembly method, you may contact the manufacturer to request pre-assembly for a nominal labor charge.
What type of wiring is required for this adapter?
This adapter is designed to work with inexpensive silver satin or flat oval twisted pair wire to complete RS-232 connections.
What are the connector types for the CG02934?
The adapter includes one RJ-45 female connector and one DB25 male connector.
Is the CG02934 TAA compliant?
No, this product is not TAA compliant, though it does meet NDAA 889, RoHS, REACH, TSCA, and Prop 65 requirements.
