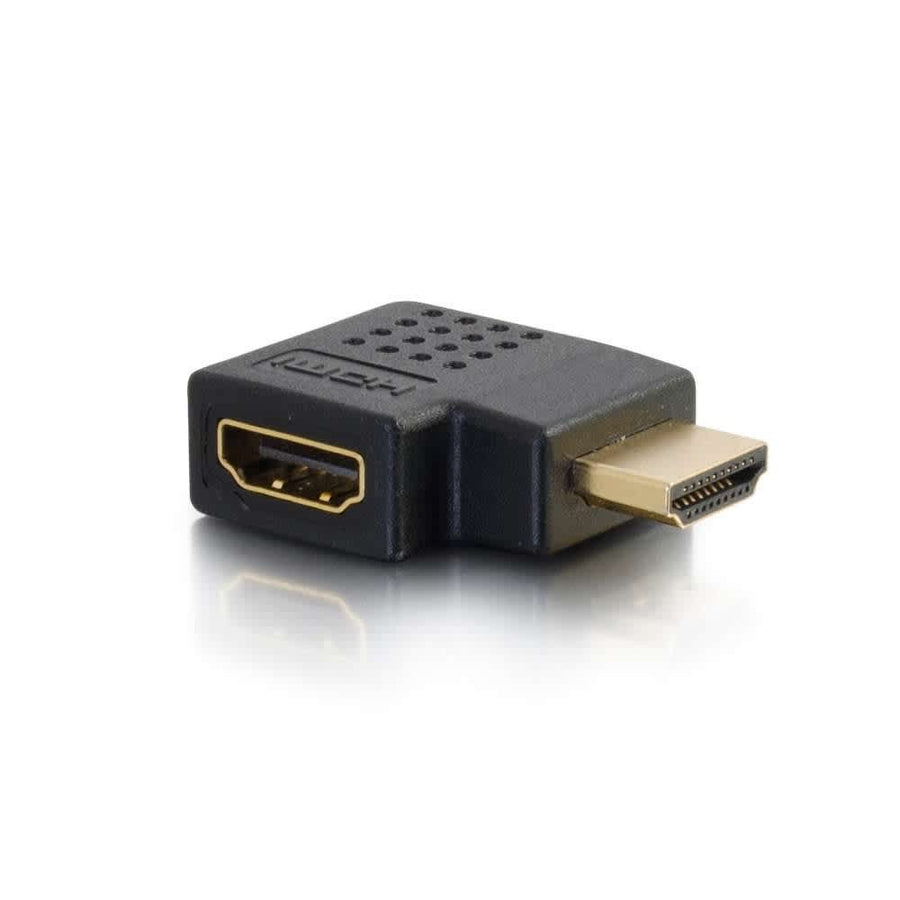

Right Angle HDMI® Adapter - Right Exit
Right angle HDMI adapter with a right exit, extending 1.24 in (3.2 cm) from the display port to prevent cable bending.
The C2G CG43290 is a right angle HDMI adapter designed for installations where limited depth prevents the use of standard HDMI cables. By providing a right exit, this adapter extends 1.24 in (3.2 cm) from the HDMI port of the display, allowing cables to run parallel to the device rather than bending sharply against a wall or enclosure. This configuration helps protect the HDMI cable and the display's internal port from physical damage caused by exceeding the minimum bend radius. This adapter features a male HDMI connector and a female HDMI port, supporting video resolutions up to 1080p. The unit is constructed with a 45P PVC housing and features gold-plated connectors to ensure reliable signal integrity. It is designed to operate in temperatures ranging from 32° to 122°F (0° to 50°C) and maintains performance in non-condensing humidity between 15% and 85% RH. This compact component measures 0.50 x 1.22 x 1.33 in (12.7 x 30.96 x 33.78 mm) and is compliant with RoHS, REACH, and NDAA 889 standards.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 1.24 in (3.2 cm) |
| Operating Humidity Max | 85% RH (Non-Condensing) |
| Operating Humidity Min | 15% RH (Non-Condensing) |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Shipping Weight | 0.04 lbs (0 kg) |
| Storage Humidity Max | 85% RH (Non-Condensing) |
| Storage Humidity Min | 15% RH (Non-Condensing) |
| Storage Temperature Max | 185 Fahrenheit (85 Celsius) |
All other specifications 12
| Storage Temperature Min | -13 Fahrenheit (-25 Celsius) |
| Color | Black |
| Connector 1 | (1) HDMI Female |
| Connector 2 | (1) HDMI Male |
| Product Type | Adapter |
| TAA Compliant | No |
| UPC | 757120432906 |
| Video Input Support | HDMI |
| Video Output Support | HDMI |
| Video Resolution | 1080p |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Warranty | Lifetime |
Questions about this part
Will this adapter work with my HDMI display?
Yes, the CG43290 supports HDMI video input and output at resolutions up to 1080p.
How much space does this add to my installation?
This adapter extends the connection 1.24 in (3.2 cm) from the display's HDMI port, facilitating a right-exit cable orientation.
What is the physical size of the CG43290?
The dimensions of this adapter are 0.50 x 1.22 x 1.33 in (12.7 x 30.96 x 33.78 mm).
Is this adapter compliant with NDAA standards?
Yes, the CG43290 is listed as being compliant with NDAA 889, as well as RoHS, REACH, and TSCA.
What is the warranty on this C2G adapter?
This product is covered by a lifetime warranty.
