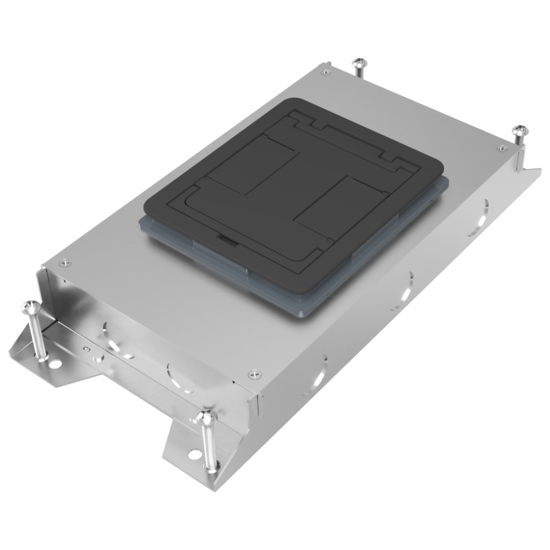

RFBA2R25 RFBA Two Gang Shallow Floor Box
Two-gang shallow floor box designed for above-grade installation in concrete, accommodating 1" conduit feeds
The RFBA2R25 is a two-gang shallow floor box from the Wiremold Resource RFBA Series, engineered for efficient power and data service activation in open floor spaces. This above-grade unit is designed to be installed in various surfaces, including polished concrete, terrazzo, tile, stone, wood, carpet, or marble. This specific shallow model is compatible with a 1" conduit feed, distinguishing it from the standard 2" feed required for larger or standard-depth boxes in this series. The design facilitates easier wire and cable routing through improved routing in adjacent compartments and around corners, which helps reduce overall installation labor costs. Because the RFBA Series uses interchangeable components, installers can mix and match accessories across the entire line to accommodate specific project requirements for workstations or open office layouts.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Grade Type | Above Grade |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will the RFBA2R25 work with a 2" conduit feed?
No, this shallow 2-gang model is designed to accept a 1" conduit feed. Standard depth boxes in the RFBA series are the models that accept 2" conduit feeds.
What surfaces can this floor box be installed in?
This box is suitable for installation in polished concrete, terrazzo, tile, stone, wood, carpet, and marble.
Can I use the same plates with other RFB Series boxes?
Yes, common mounting plates from the Resource RFB Series can be used with any Resource RFB Series floor box to reduce lifecycle costs.
What is the warranty for the RFBA2R25?
The product carries a warranty of 1-Year from Installation or 2-Years from the Day of Sale.
What documentation is available for installation and submittals?
You can access the RFBA Series Floor Box Cutsheet, the Device Plate Installation guide, or the RFBA Resource Floor Boxes Installation Instructions via the Resources tab.
