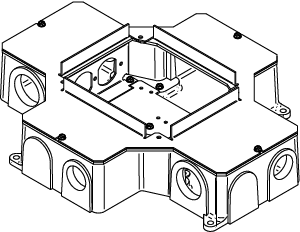

RFB4-CI-1 Four Gang Cast Iron Floor Box
Four-gang cast iron concrete floor box for on-grade installations, featuring adjustable multi-service tunneling for power and communication.
The RFB4-CI-1 is a four-gang cast iron floor box designed for on-grade applications, providing reliable power and communication access to workstations or open floor areas. This multi-service solution allows for tunneling from adjacent or opposite compartments, though it does not permit cross-compartment tunneling. A single-service application can be achieved by setting the tunneling to feed all four compartments from one conduit. This unit is built with a gray finish and has a footprint of 11.63" W x 14.25" D x 3.5" H (29.5 x 36.2 x 8.9 cm). This series is suitable for diverse environments including commercial office buildings, financial institutions, schools, and residences. Please note that all covers are sold separately from this floor box unit.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 14.25 in (36.2 cm) |
| Height | 3.5 in (8.9 cm) |
| Width | 11.63 in (29.5 cm) |
| TAA Compliant | No |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
| Color | Gray |
Resources
Questions about this part
Does the RFB4-CI-1 include a cover?
No, all RFB Series covers are sold separately from the floor box.
Can I feed all four compartments from a single conduit?
Yes, the tunneling can be set to feed all four compartments from one conduit in a single-service application.
What type of flooring is compatible with FloorPort covers?
FloorPort Activation Covers are UL Listed for use with wood, carpet, tile, and terrazzo floors.
What is the installation depth for this box?
The RFB4-CI-1 has a depth of 14.25 in (36.2 cm).
Is this floor box suitable for office or commercial use?
Yes, it is used in commercial office buildings, financial institutions, schools, and residences.
